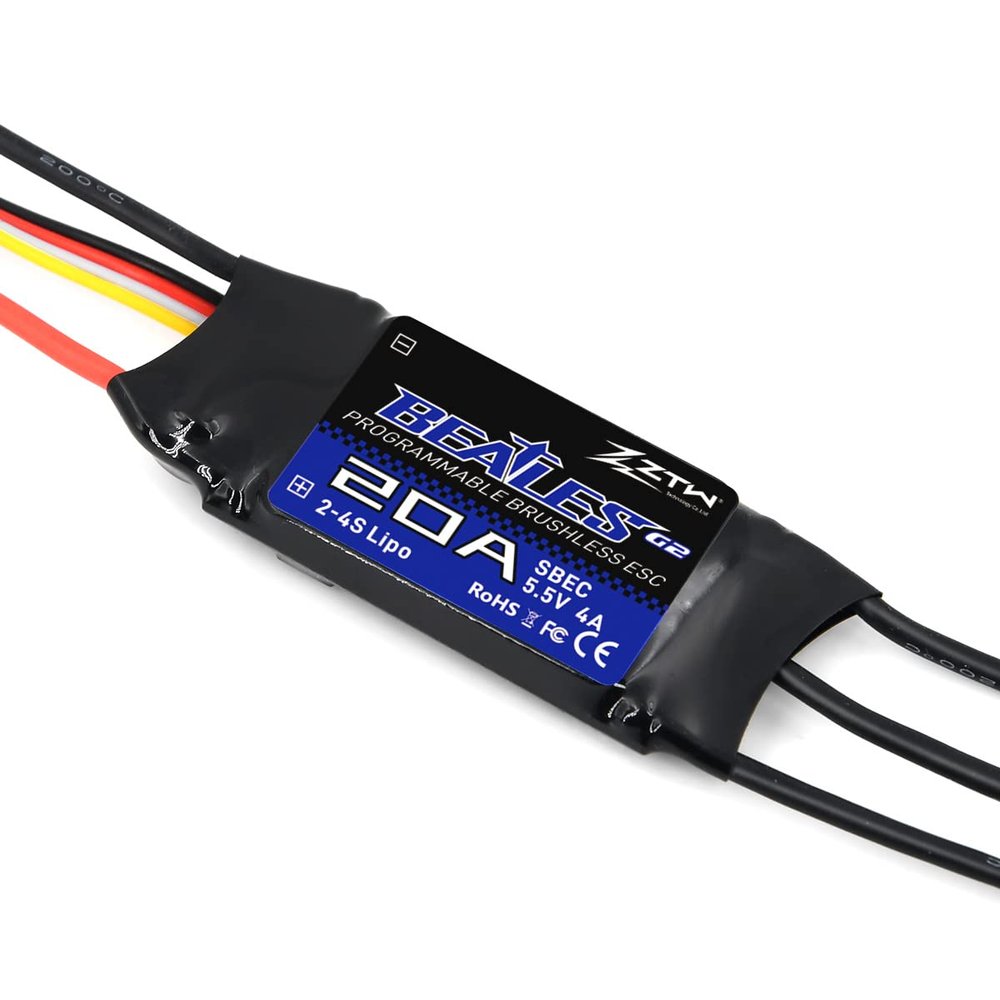

ZTW Beatles G2 20A ESC with Connectors SBEC Output 4A/5.5V for RC Fixed Wing Airplane 2-4S or DIY Project Need Electronic Speed Controller

Description

• 32bit microprocessor which with stronger computing ability and faster running speed.
• Multiple protections: start-up,over-heat,low-voltage cutoff,signal loss,phase loss and so on.
• Stronger BEC output up to 4A/5.5V continuous and peak to 5A.
• Super smooth, accurate and programmable throttle linearity and throttle response.
• Supporting high RPM motors and programmable by LCD card, transmitter.

Key Features :
Synchronous rectification which with more energy-saving and high efficiency.
Key protections:Phase Loss Protection,Signal Loss Protection,Over-Heat Protection,
Adjustable softstart according to different RPM and Pole Motor.
Supporting High RPM and Pole Motor.
Functions programmable : Brake,cut off voltage,softstart,motor direction etc.

Description :
Size :60mm x 25mm x 10mm (LxWxH).
Battery : 2-4S Lipo / 5-12NC.
Voltage : 7.6V-15.8V
Current : 20A ,peak 30A
BEC output : 4A/5.5V, peak 8A
Weight : 25g
Motor Type : Brushless (no brushed)
RPM support200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P.

Connectors:
Power side: XT60
Motor side: 3.5 bullet female

Package includes :
ESC x 1
User Manual x 1

Application
RC Airplane with inrunner motor or EDF system.
RC Muliticopter multiroter or any other DIY project of industry.

Note !!
Please do make the throttle calibration for the first time using or changed the TX.
Warning !!
Before you buy the ESC please make sure you have receiver and transmitter or servo tester.
