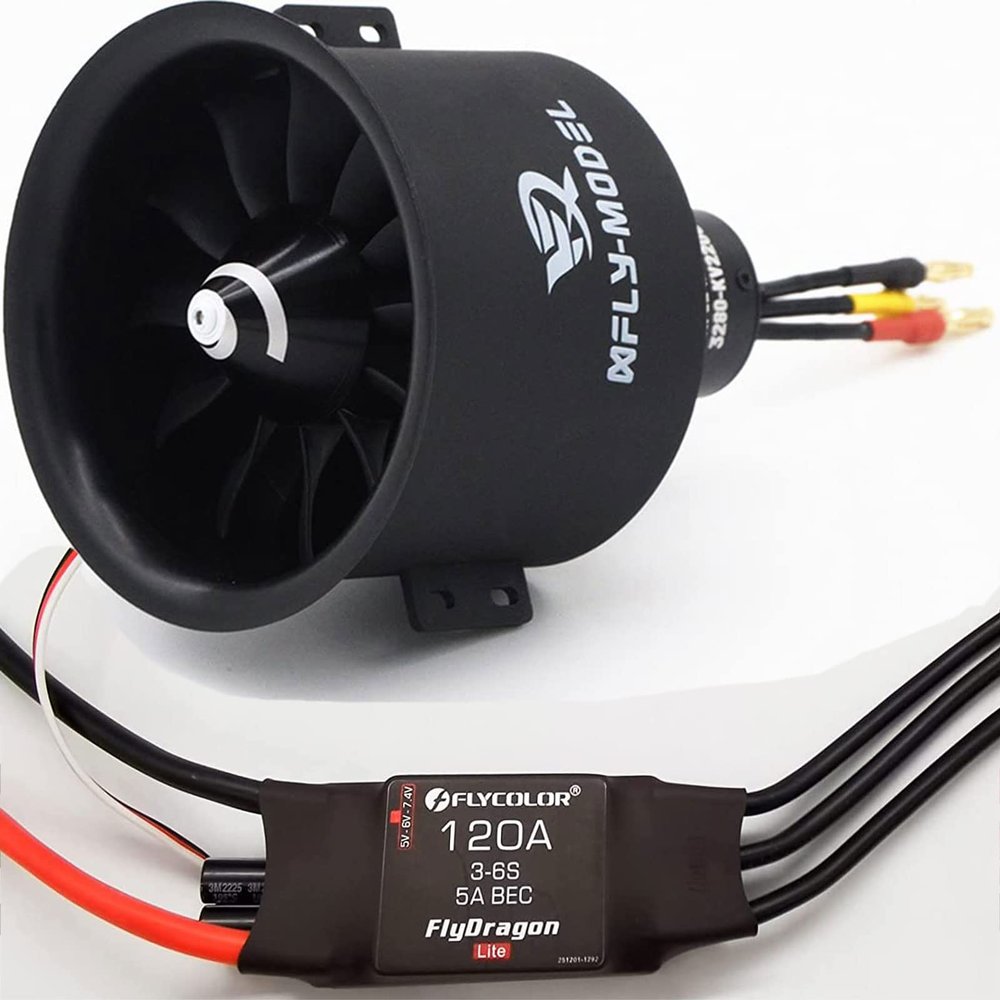

80mm EDF 12 Blades Ducted Fan with 3280-1450KV RC Brushless Motor with 120A ESC 3-6S Electric Speed Controller for RC Jet Airplane

Description

• XFly 80mm EDF is powered by brushless inner rotor 3280-2200KV/6S motor: maximum continuous current is 120A, maximum thrust is 3400g. EDF unit weight is 300g. so we recommend using 120A ESC and 6S battery.
• XFly motor can work continuously, high temperature resistance, wear resistance, stable performance, more anti-aging and more durable. Premium motors provide stable and balanced operation during continuous operation. 3280-KV2200 high efficiency inner rotor motor thrust, combined with EDF and blade optimization design, can reach 3400g thrust when using Li-ion battery power.
• The laser technology used on the surface of the CNC metal rotor blades gives the spiral pattern a realistic and beautiful look. Through superb machining, the EDF shell and blade surfaces give a matte finish.
• XFly fan is made of high quality engineering materials, with a sturdy body and stable structure, removable guide ring design to adapt to a variety of models, streamlined design combined with CFD simulation analysis, which can effectively reduce noise and make the sound effect more realistic when running at high speed.
• The combination of high precision mold manufacturing and advanced injection technology ensures the consistency of the fan blades, making it easier to achieve dynamic balance. A distance of 0.5 mm is maintained between the blades and the housing to ensure optimal performance.

EDF Parameter:
Motor:3280-KV2200
Voltage:25V
Current:100A
Thrust:3400g
Unit weight:300g
Recommended to use with:4000-5000mAh Lipo Battery
Package Dimensions:21*14*12.5cm
Package Weight:519g

ESC Parameter:
Continuous Output: 120A
Bursts Output: 120A for 15 Seconds
UBEC: 5V/6V/7.4/5A
Lipo Battery: 3 - 6s (cells)
NiCd/NiMH: 5 - 18 Cells
Voltage Input: 11.1v - 22.2v
Size: 82mm x 36mm x 25mm
Weight: 143g
Motor Type: Brushless Motor

Package Included:
90MM EDF *1
120A ESC *1
