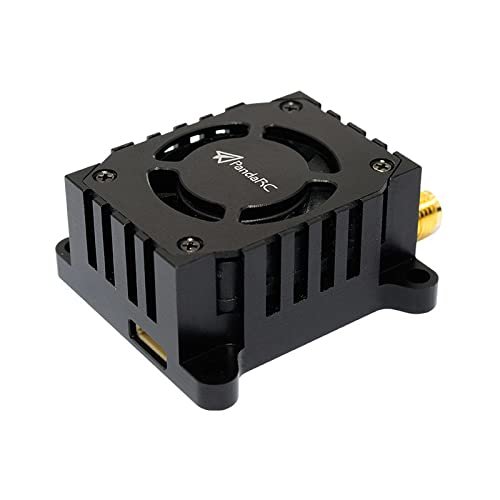

VT5804 V3 5.8G 1W Power Switchable Long Range FPV Video Transmitter VTX 7-28V Built-in Cooling Fan for RC FPV Racing

Description

• VT5804 V3 5.8G 1W Power Switchable Long Range FPV Video Transmitter VTX 7-28V Built-in Cooling Fan for RC FPV Racing

VT5804 V3 5.8G 25mW/200mW/400mW/800mW/1000mW Switchable FPV Video Transmitter is the most recent big power long range video transmitter released by Panda RC.The VT5804 V3 features a built-in cooling fan and a bolted SMA antenna connector.It supports OSD remote tuning and goes up to 1000mW output power.

Main
Features:
--Stable output power, long transmission range (0.5KM+@25mW; 1KM+ @200mW; 2KM+@400mW, 5KM+@800mW,10KM+@1000mw;--0mw/25mw/200mw/400mw/800mw /1000mw switchable--Channel, Frequency and Output power controlled through OSD configuration--Fast frequency lock--Support self-checking function of output power;-- Comes with Cooling fanSpecifications:Video module:NTSC/PALinput voltage : 7-28V,+12V/450mA@1000mWSize : 36*36*5.5MMHole size:30.5mm x 30.5mmWeight : <30g(without antenna)Output Power and Frequency SettingThrough buttons on the VTX:1. Long press the button for 6 Seconds, the power indicator led flash while other indicator leds are off, then short press would change the power 25mW/200mW/400mW/800mW/1000mW. 2. Short Press one time, it will change the Channel ( CH1-CH8)3. Long press for 3 seconds and then short press , will change the FR ( A-F)
Through OSD Interface
Connect the VTX(RX) to the free UART (TX) port like below picture
OSD Interface Details
