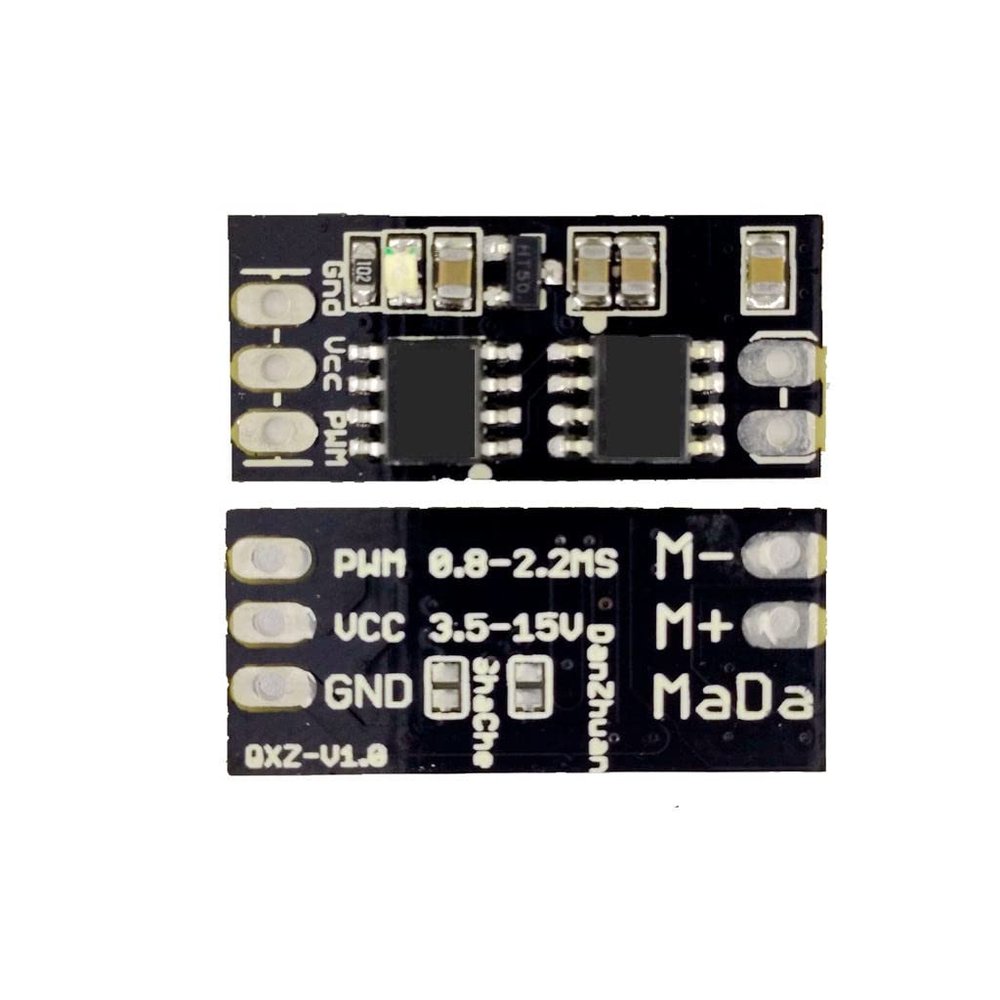

Ultra Mini 24.3x11x2.6mm Two-Way 3A Brushed ESC Electronic Speed Control 3.5V-15V(1-3S) for DC Coreless Motor N20 Geared Motor

Description

• Ultra Mini 24.3x11x2.6mm Two-way 3A Brushed ESC Electronic Speed Control 3.5V-15V(1-3S) for DC Coreless Motor N20 Geared Motor

This is a DC motor drive board to control the forward and reverse rotation and speed control board (PWM control).

It can be controlled by a steering gear tester, or a single-channel receiver interface (throttle channel is recommended).

Signal input: detect the pulse width of the receiver's PWM 1ms~2ms to control the motor speed, etc.

Support voltage: 3.5V-15V ultra-wide voltage The maximum peak current is 7A.

Rated power: <10W (does not support violent motors such as ship models, car models, and airplane models!)

The input voltage is greater than 8.4V and the output current of the ESC shall not be greater than 1A

Protection function: After the motor rotates, the ESC will generate heat if the chip is larger than 3A, and the output will be cut off when the temperature reaches 120 degrees.

ESC advantages: suitable for all small motors, geared motors, coreless motors, 350 motors.

Input 5V power supply: The ESC cannot be driven when connected to a large motor, and the ESC will not burn! The ESC will not burn even if the motor is short-circuited.

Power connection: Please see the power cord before wiring, VCC power positive pole, GND power negative pole

Suitable for miniature brushed DC motors, coreless motors, geared motors, N20 geared motors, etc. Small size motor use!
