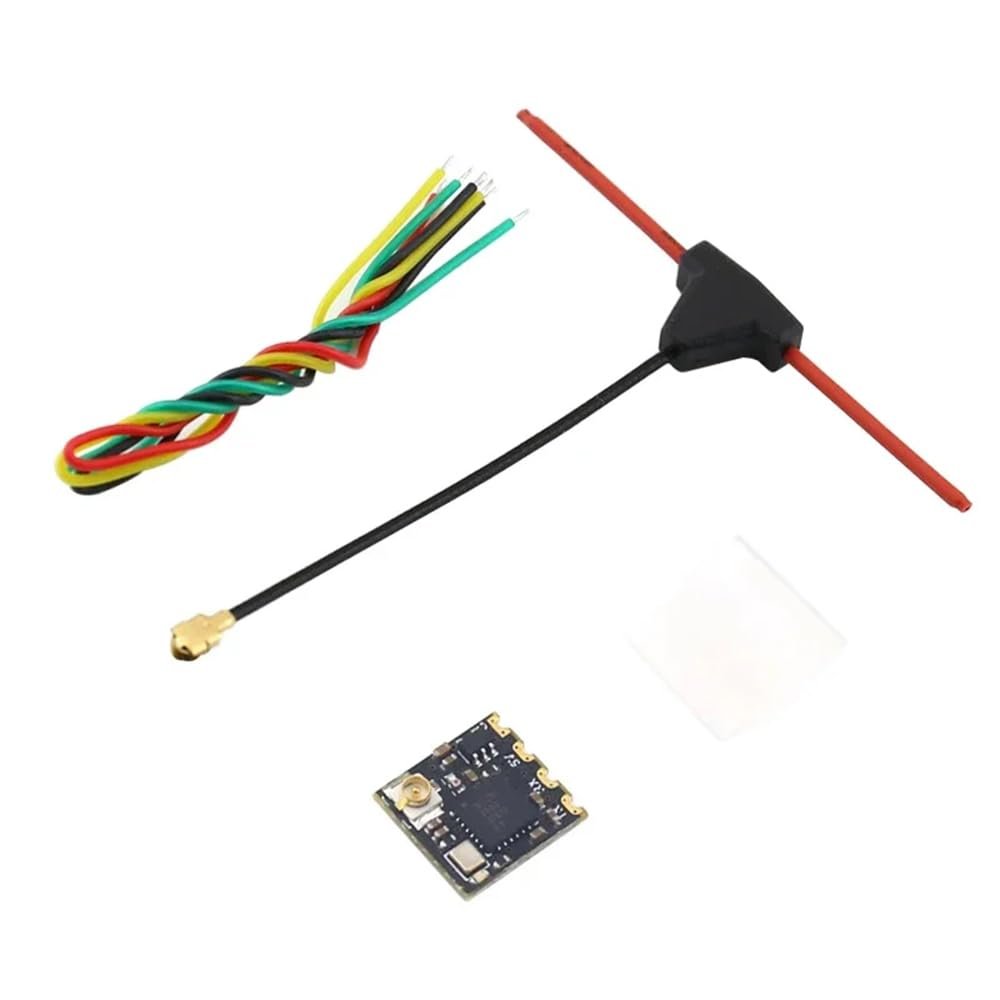

SoloGood ELRS Receiver 2.4G ExpressLRS 2nd Generation Mini2 Low Latency Long Distance High Refresh Rate for FPV RC Quadcopter Racing Drone

Description

• CYCLONE series receivers are based on ExpressLRS open source architecture and programs, we 3 types of RX receiver modules are released. Both use ESP8285 MCU. you Firmware can be upgraded via WIFI, which is very friendly.
• Usually you just give the receiver After the power is supplied and the remote control is turned off, the ExpressLRS can be found hot after 60s by default. Click, connect to this hotspot through a computer or mobile phone, the password is expresslrs, then Then you can visit 10.0.0.1 to upload the receiver firmware.
• BETAFPV Lite 2400RX receiver with power amplifier (PA+LNA). Therefore, it has . 100mW telemetry output and better sensitivity at longer distances with IPEX Gen 1 antenna base, with external dipole T-type antenna
• Due to the low latency and high refresh rate RF modules of the ELRS Lite receivers, they are ideal for Combined FPV competition and remote FPV. At the same time these receivers have ultra-light and ultra-small dimensions. There is no PA/LNA on the ELRS mini 1 receiver _ so its telemetry power is the same as the RF chip
• The SX1280 has the same power at 17mW. Using high-efficiency pagoda ceramic antenna, in Efficient acceptance sensitivity in limited space There is no PA/LNA on the ELRS mini 2 receiver, so its telemetry power is the same as the RF chip . Adopt IPEX 1st generation antenna base, with dipole Sub-T antenna (customized by professional factory, each antenna has been tested by professional instruments to ensure quality and lightweight and durable)

Instructions for use
1. After the receiver is connected to the flight controller, power supply to the flight controller by connecting the USB. Insert for the first time

After USB, disconnect the USB as soon as you see the LED light on the receiver goes out. repeat the operation once,

When the USB is plugged in for the third time, the LED will start to flash twice, which means the receiver is in pairing mode.

2. Connect the ES24TX module or DIY 2.4G ELRS tuner module to the remote control correctly

After that, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD

Card/Scripts/tools, then run ELRS.LUA for Bind operation.

3. After the binding is successful, the LED on the receiver will be always on, and the telemetry signal can also be received.

No.

4. Receiver LED status meaning:

PP receiver: always on, the frequency pairing is successful or the connection and communication are normal, the LED double flashes are in the frequency pairing, the LED slow flashing cannot receive the transmitter signal

ELRS MINI 2

Type: ISM

ESP8285 processor

2.4GHz Omnidirectional T Antenna

Frequency range: 2400 MHz to 2500 MHz

Receiving refresh rate: 500Hz_upper limit

Receiving refresh rate: 25Hz lower limit

Working voltage: 5v

Weight: 0.42g (without antenna)

Size: 10mm*10mm*3mm Working Agreement: CRSF(Betaflight)
