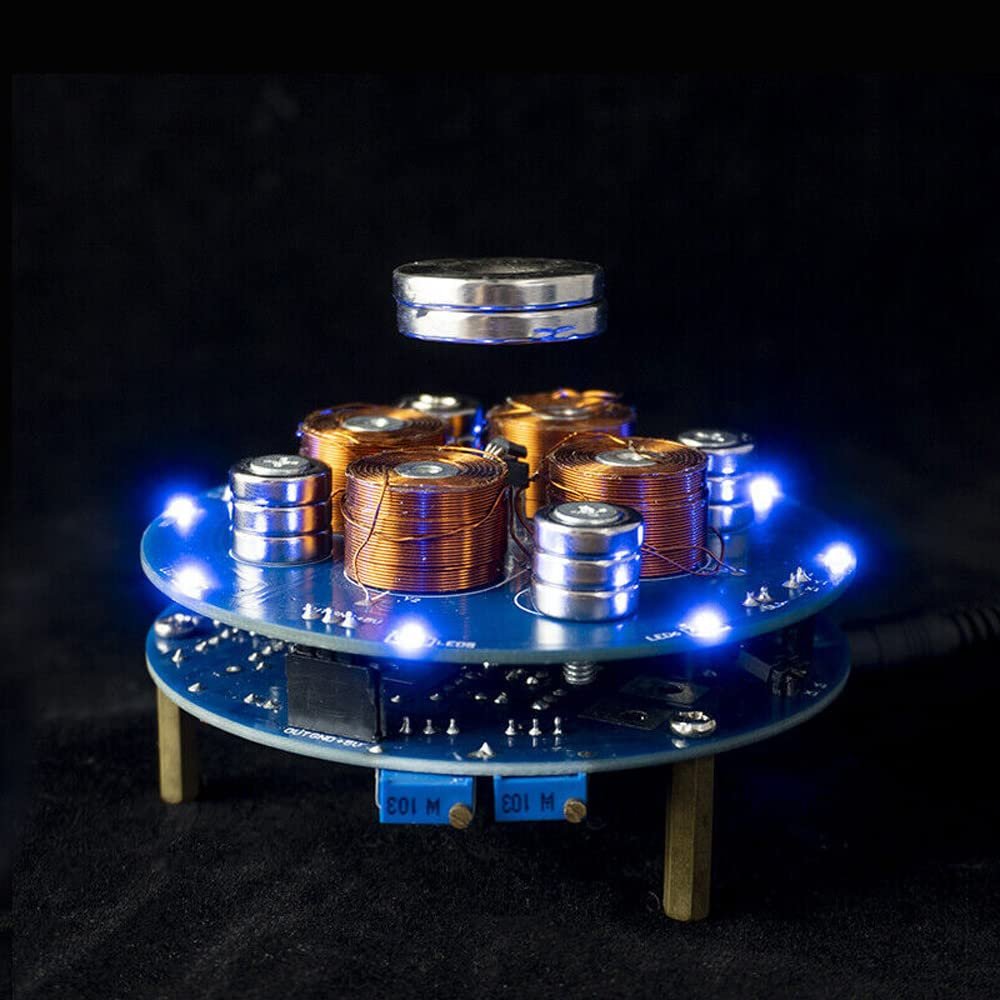

RUNAAJA Smart Magnetic Levitation DIY Kit/Pull up Magnetic Levitation/Magnetic Levitation Nake

Description

• Screen printing on the driver board is all correct. Use it as guide for placing c omponents.
• Easy to debug;
• Suspension stability
• Withstand weight: 100-150G
• Size: diameter 85mm, height 45mm

Assembly tips:
1.Screen printing on the driver board is all correct. Use it as guide for placing c omponents.
2.All transistors are mounted the same: pin 1 is the left pin when looking at the printed side of the transistor and goes in the square solder pad.
3.Mounting the coils: The inside wire of each coil goes to the labelled solder pad between the coil and outside edge of PCB. The outside wire of coils Y1 and X1 g o to the solder pads at bottom right of coil X2. The outside wires of coils Y2 and X 2 go to the solder pads at bottom left of coil X2.
4.DL1 and DL2 are for the two jumper blocks. The jumpers need to be installed for the coils to work.
5.IMPORTANT TIP - positioning the hall effect sensors. H1 printed side faces X1, H2 printed side faces X2, H3 has leads bent 90 degrees so printed side faces up. Mount the sensors so that the tops of H1 and H2 and the face-up side of H3 are a ll the same level - 1/2 to 2/3 the height of the coils. The sensors might need to be de-soldered and the height adjusted to find the right level where the floating mag net sits smoothly and quietly. If too high the floating magnets will vibrate and tip over.
6.Set the multi turn trimpots to half way before powering up. They are a 30 turn t rimpots, so 15 turns is a good place to start. These trimpots centre the floating m agnet above the 4 coils.

Features:
1. Suspension stability
2. Easy to debug
3. Safe use

Specification:
Product Name: Magnetic Levitation Electronics Production Kit
Power Supply: DC 9-12V (Not include, if you want it, pls let me know)
Power consumption: 10-12W
Size: diameter 85mm, height 45mm
Withstand weight: 100-150G
Package Weight: 500G

Include:
1 x DIY magnetic levitation Kit

Note:
DIY parts packaging requires its own assembly, requires electronic foundation and hands-on capabilities (welding), we can not guarantee that all friends can DIY success, but we areAssem
