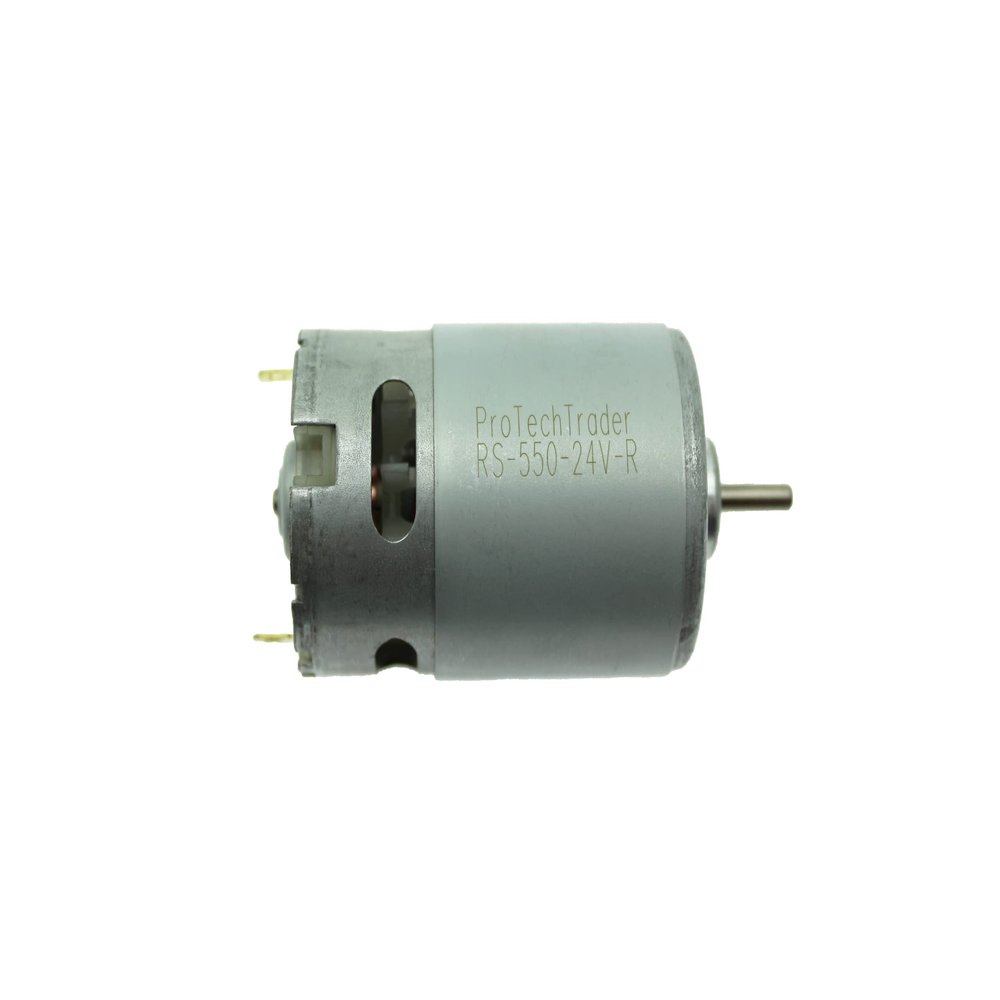

RS550 24V DC Motor 35000RPM Electric Fan-Cooled Upgrade Replacement for Some Custom Power Wheels Kids Ride on Toys

Description

Model RS-550 (550 Series) 24v 35000rpm Fan Cooled DC Motor

Shape of Motor Housing: Round
Type of Motor: Carbon Brushes
Construction: Anisotropic Magnet or Rare Earth Magnet
Optimal Voltage: 24 volts
Operating Voltage Range: ~18v - 28v

Unloaded (free spinning):
No Load RPM: 34957
No Load Current: 2.3A

Stalled (max load):
Stall Torque: 277.0 mN.m
Stall Current: 56.01 amps

At Max Efficiency:
Max Effic. %: ~52% Max Effic. Torque: 46.68 mN.m
Max Effic. RPMs: 29067
Max Effic. Current: 11.35 amps
Max Effic. Output Power: 142.2 Watts

At Max Output Power:
Max Output Power Efficiency Percent: 36.25% Max Output Power Torque: 138.5 mN.m
Max Output Power RPMs: 17479
Max Output Power Current: 29.15 amps
Max Output Power: 253.7 Watts

Dimensions:
Motor Body Length: 2.26in (57.5mm)
Motor Body Diameter: 1.41in (35.8mm)
Weight: ~8.6oz (215g)
Mounting holes (2): M3
Mounting Holes: 25mm apart
Shaft Diameter: 3.175mm / 1/8th inch
Shaft Style: Round
Shaft Length: 16mm (~12mm usable exposed)

Designed as a replacement for some childrens ride on vehicles and Fisher Price Power Wheels
Also suitable for hobby, DIY, and repair/replacement applications such as in Power Tools, Drills, and other cordless outdoor tools.
As well as a popular choice for Do-it-Yourself choice for Electronics projects, Robotics, Ride-on Toys, Gate Openers, and More. Fit your existing gear or pinion for your application for 1000s of uses

PLEASE NOTE: Will not work in all models, be sure to check your specific application's requirements before purchasing
If you're replacing a motor please be sure to verify the motor matches before buying
