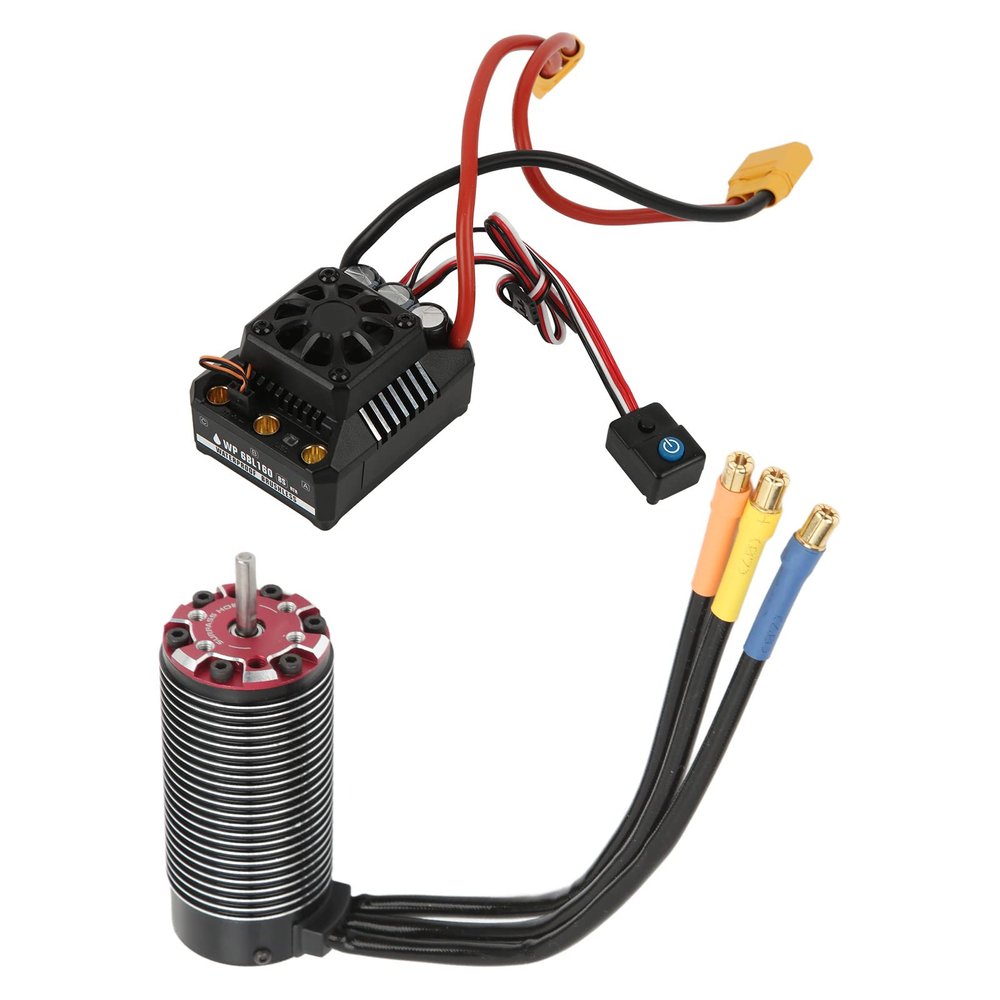

Brushless Motor ESC Combo Set, 1450KV Brushless Motor MAX6 160A 8S ESC Combo Set for 1/7 1/8 Series 6S RC Car

Description

• Superior Performance: 4 pole rotor design, powerful torsion and stable output power, low friction, low noise, high accuracy. High hardness aluminum CNC shell, high temperature copper coil 0.2mm thickness silicon steel sheet
• Parameters: RC brushless motor kit with super internal switching mode BEC, switchable voltage 6V 7.4V, control or peak current 6A 25A, can easily drive large torsion suit and high voltage servo. Advanced programming
• Extensive Compatibility and design: Eelectronic speed controller set is compatible with sensorless brushless motors and sensing brushless motors (only in sensorless mode)
• and The highly electronic switch of RC brushless motor avoids the failure of traditional mechanical switch due to dirt and water. Proportional brake with 9 levels of braking power or maximum braking power and 9 levels of traction braking power.
• Sparkproof Circuit: Brushless motor esc has built in sparkproof circuit, which not only effectively guards the battery and ESC connector from damage, but also guards the user from bodily injury caused by the strong electric sparks generated at the moment of battery and ESC connection

Brushless Motor ESC Combo Set, 1450KV Brushless Motor MAX6 160A 8S ESC Combo Set for 1/7 1/8 Series 6S RC Car

Specification:
Item Type: RC Brushless Motor Kit
Material: Aluminum Alloy, Plastic, Copper, Steel
Model: 4092
Color: Black
KV (RPM/V): 1450KV
Output Power: 4200W
Maximum Speed: 50000
Maximum Voltage: Maximum Current: 150A
Number of Motor Poles: 4
Motor Diameter: Approx. 40mm(1.57in), 42mm(1.65in)
Motor Length: Approx. 92mm/3.62in (without Shaft)
Shaft Diameter: Approx. 5mm/0.20n
Shaft Length: Approx. 20mm/0.79in
Gold Plated Joint: 6.5mm
MAX6 160A 8S ESC:
Continuous Current, Burst Current: 160A 1050A
Motor Type: Sensored, Sensorless Brushless Motor (Sensorless Mode Only)
Motor Limit Values: 6S Lipo: KV1500, 8S Lipo: KV1200 5892 Size Motor
Battery: 9~24 Cells NiMH, 3~8s Lipo
BEC Output: 6V 7.4V Switchable, 6A Continuous Current (Switch Mode BEC)
Programming Port: FAN, Port
Plug Type: Double Plug
ESC Size (Without Wire): Approx. 70x56x46.5mm / 2.76x2.20x1.83in
For Arrma for Losi 1/8 1/7 Series 6S :
1. for Arrma 1/7 Mojave Short Course
2. for ZD Racing 1/7 for Truck
3. for Arrma 1/8 Typhon
4. for Arrma 1/7
5. for 1/7 UDR

How to Use:
Motor connection:
1. There is no strict wire sequence requirement for the connection between the motor and the electric regulation. The #A/#B/#C of the motor can be connected with the three wires of the electric regulation at will.
2. Check: Before starting the power supply of the remote control car, please carefully check the correctness of the connection of the power system and the reliability of the installation.
ESC connection:
1. Wires #A, #B and #C of ESC can be freely connected with motor wires (without any sequence). Replace any two wire connections if the motor is running in opposite
