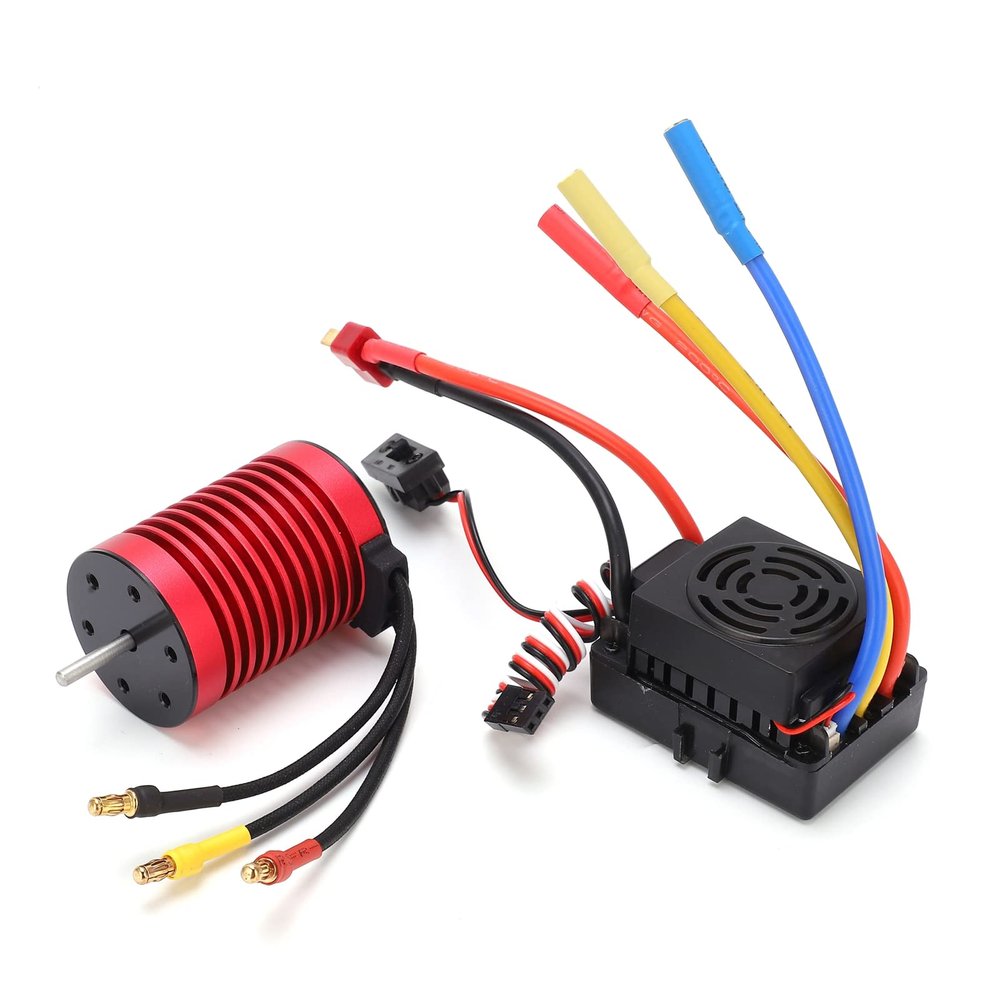

Brushless Motor and Brushless Esc Set, F540 Motor 3900kv 60a Esc Set with T Plug for 1/10 Remote Control Cars

Description

• [Energy-efficient] Design for maximum energy conversion, preserving energy for longer use time.
• [Optimized Performance] Enhances throttle response, accelerates excellently, provides strong braking, and ensures throttle linearity for superior control.
• [Smooth] Balanced rotor ensures smoothness, reliability, and maximum rpm, with support for program card adjustment.
• [High-efficiency Design] 4Pole 12slot hightorque motor with high-purity copper winding maximizes efficiency.
• [All-weather Versatility] design suitable for various competition conditions, with low voltage cut-off, and throttle signal loss.

Spec:
Item Type: 540 Motor+ESC Set
Material: Aluminum Alloy+Plastic
Motor:
Color: Red
Motor Size: Approx. 50x36mm/2x1.4in
Voltage: 820W
Maximum Voltage: Maximum Current: 60A
KV(RPM/Volt): 3900KV
Maximum Revolving Speed: 50000
Shaft Length: Approx. 15mm/0.6in
Shaft Diameter: Approx. 3.2mm/0.1in
Plug Type: 4mm Banana Plug
ESC:
Sustained Current: 60A
Current: 320A
Suitable Battery: 2-3S Li-Po/4-9S Ni-Mh Ni-Cd (Not included)
BEC Output: 5.8/3A
Plug: Male T Plug
Compatibility: for 1/10 RC Car
Weight: Approx. 229g/8.1oz

How to Use:
1. Connect the BEC line to the receiver
2. Connect the motor to the ESC
3. Turn on the transmitter
4. Connect the battery pack to the ESC, and then turn on the ESC.
5. After the connection of the motor and the battery is completed, the motor will make a buzzing sound.
6. When the throttle lever is in the neutral position, the motor will rebeep.
7. ESC is working.

PackageList:
1 x Brushless Motor
1 x Brushless ESC
1 x Instruction
