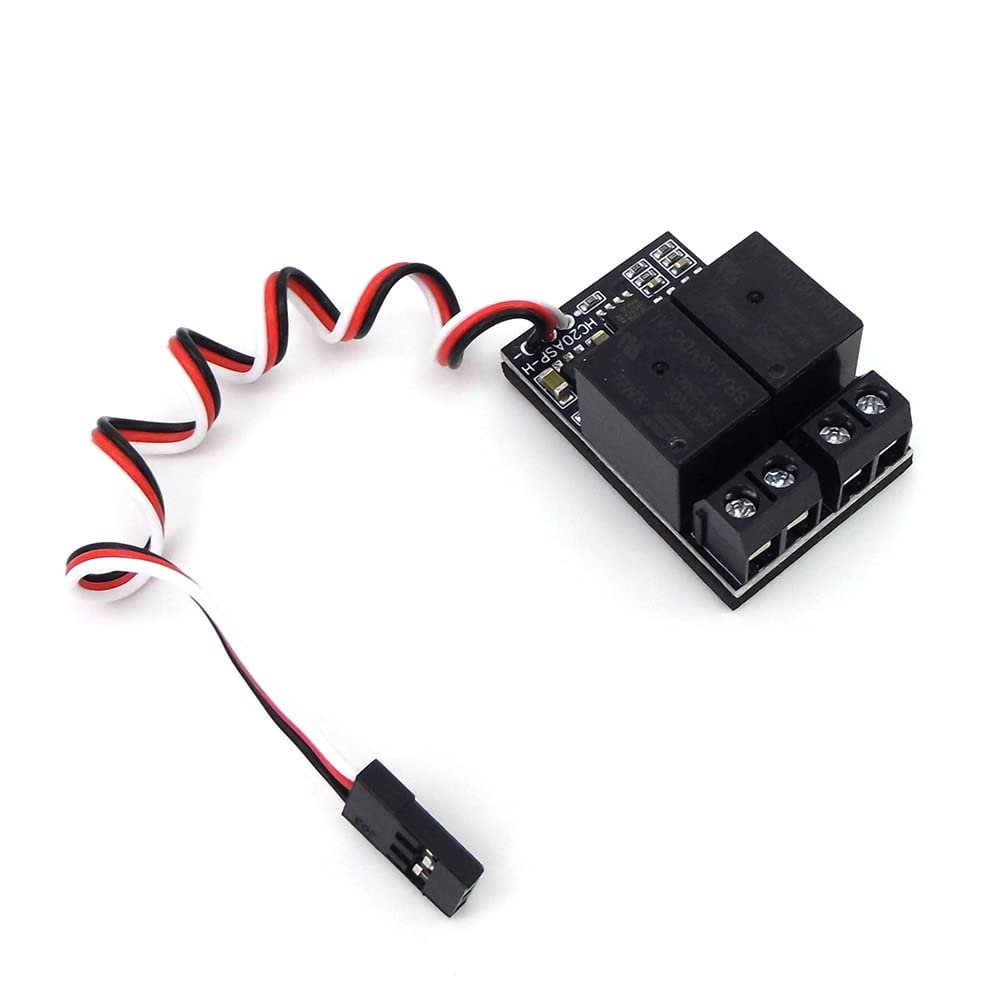

RC Model PWM Receiver Control Switch 5-10V 2-Ways 20A Relay for RC Boat Marine Water Pump RC Car Light FPV Camera

Description

• Support 5-10V receiver
• One channel servo signal input, control Two way electronic switch.
• Two Red LEDs indicate working status of two relay switches separately.
• The status of two relay(Relay A and Relay B) are mutually exclusive, the means is that one relay is open, the other is close and Vice versa.
• Compatible with all brands of RC Model remote control devices.

Support 5-10V receiver.
One channel servo signal input, control Two way electronic switch.
Two Red LEDs indicate working status of two relay switches separately.
The status of two relay(Relay A and Relay B) are mutually exclusive, the means is that one relay is open, the other is close and Vice versa.
Compatible with all brands of RC Model remote control devices.

Application:
- Remote control model rocket launch
- Remote control model smoke control
- Weapon system control like real machine
- Smoke control of the model aircraft
- Control of various remote switching systems
- Switch the signals of the two cameras
- Control the opening and closing of various electrical power sources, such as navigation lights, searchlights, strobe lights, buzzers,water pump etc.
- Control the camera shutter or switch the camera's recording and camera mode.

How to use:
1, Plug the signal cable into an receiver channel that the minimum distance of travel of switch or stick on transmitter should be in the range of 1100us-1900us.

2, The PWM Pulse width and the relays status:
800us-1300us: Relay A is close, Relay B is open.
1300us-1700us: Two relays are open.
1750us-2200us: Relay A is open, relay B is close

Take the throttle channel as an example:
Turn the throttle lever to the full throttle, relay A is open, and relay B is close.
Turn the throttle lever to the neutral point, two relays are open.Turn the throttle lever to the minimum throttle, relay A is close, and relay B is open.

3, The red LED indicates the relay's operating status

-- Specification & Features --

* Support receiver voltage: 5-10V
* The relay switch support max voltage: 125V
* The relay switch support max Current: 20A
* Module standby current: 10mA, Working current consumption: 135mA
* Size: 39mm*25mm*18mm

-- Package Contains --

1 piece of RC Model PWM Receiver Control Switch 2-Ways 20A Relay for Water Pump Light FPV Camera
