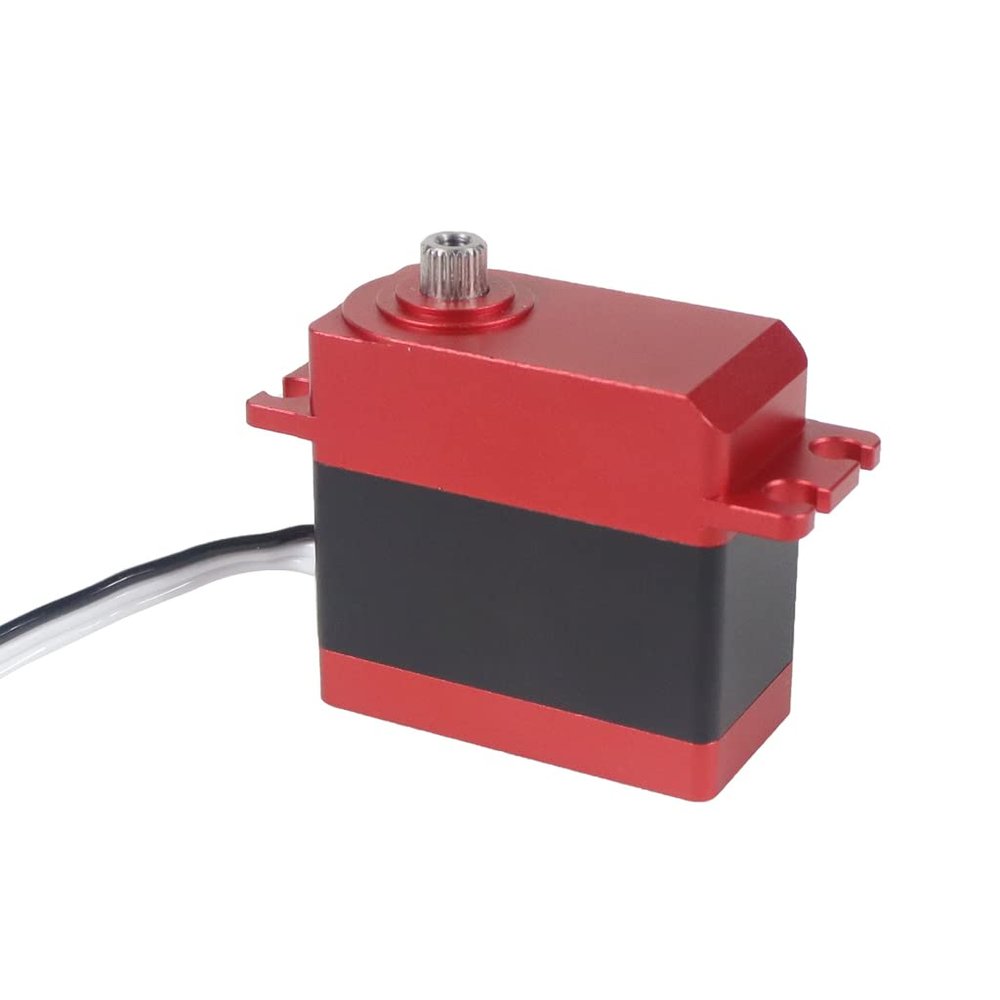

QWinOut Waterproof Servo 20KG 30KG 35KG 40KG Servo 180 270 360 Degree Large Torque Digital Servo Metal Gear for DIY RC Truck 1/8 1/10 Car (2PCS 25KG 270Degrees)

Description

• Waterproof Servo 20KG 30KG 35KG 40KG 180 270 360Degree Large Torque
• Digital Servo Metal Gear For RC Truck 1/8 1/10 Car
• High precision metal gears with hard anodizing, Application: RC car, RC plane, helicopter

Waterproof Servo 20KG 30KG 35KG 40KG 180 270 360Degree Large Torque
Digital Servo Metal Gear For RC Truck 1/8 1/10 Car

- High precision metal gears with hard anodizing
-CNC aluminum center shell,
Control system: PWM control (1500 u-sec is the center point)
Working voltage: 4.8V~8.4V
Working Temperature: -20C~+60C
Torque: 4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed: 4.8V/0.10sec/60 degree
6.0V/0.13sec/60deg
Steering angle: 180 / 270 degrees
Idle current: 4.8V/470mA 6.0V /650mA
Charging current: 4.8V/750mA 6.0V /950mA
Dead band: 3usec
Lifetime:>15000 times without load
Travel angle: 6010
Drive type: MOS drive
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Amplifier Type: Digital
Size: 40.0X20.0X37.8mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: metal gear
Housing material: PA66 + 40% fiber
Wire length: 260mm
Wire gauge no and plug type: 26AWG, JR plug
Brown Wire: Negative
Red wire: Positive
Orange Wire: Singal
Application: RC car, RC plane, helicopter
