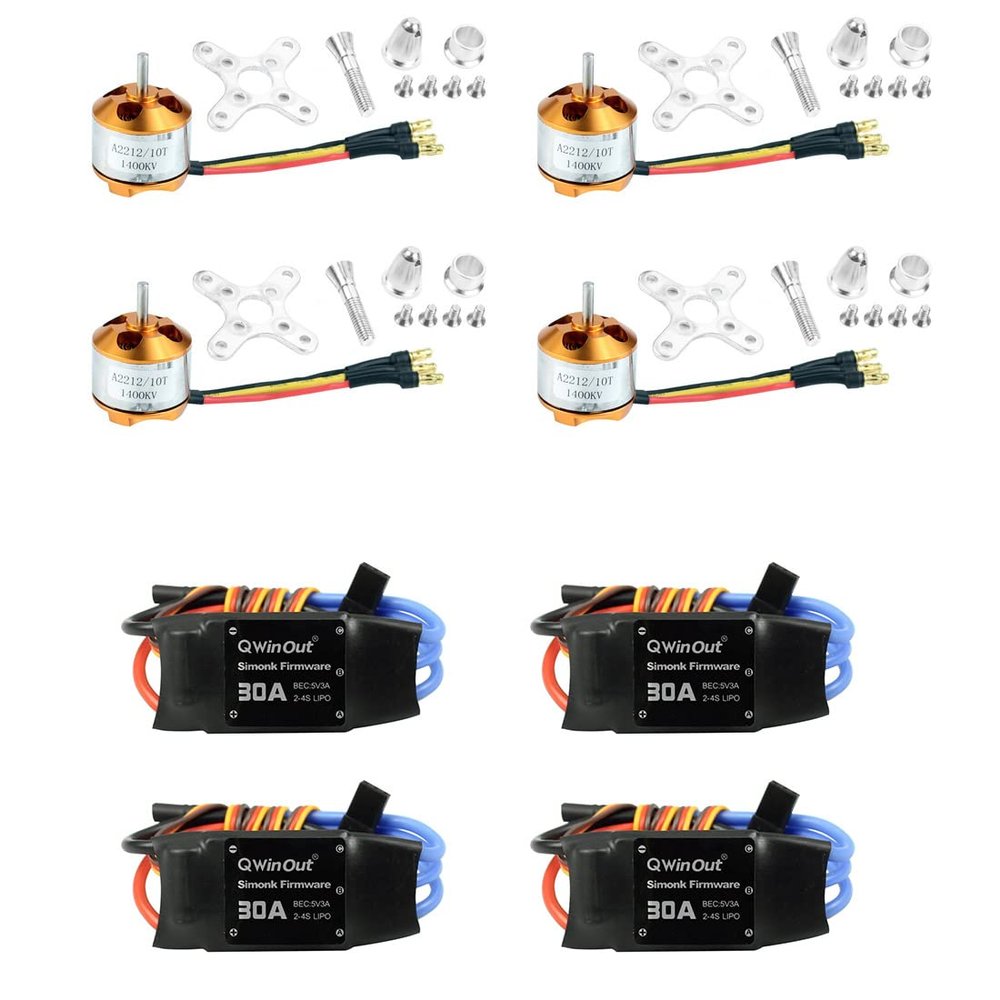

QWinOut 4pcs 30A Speed Controller ESC + 4pcs A2212 1400KV Brushless Motor for DIY RC Aircraft Quadcopter Drone Accessories

Description

• 30A Speed Controller ESC , BEC: 3A,
• A2212 1400KV Brushless Outrunner Motor for RC 4-axle/6-axle Quadcopter
• Already solded with 3.5mm Male banana connectors, effectively avoid welding problems
• Compatible for: DIY FPV KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft;
• Before producing, the manufacturer have set up the program, the ESC do not need additional program.

ATTENTION:
This ESC do not have the English instruction.
Before producing, the manufacturer have set up the program, the ESC do not need additional program.

Specification:
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.

Name: A 2212 A2212 1400KV Brushless Outrunner Motor W/ Mount
For: RC Aircraft / KKmulticopter 4-axle/6-axle Quadcopter

KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g
