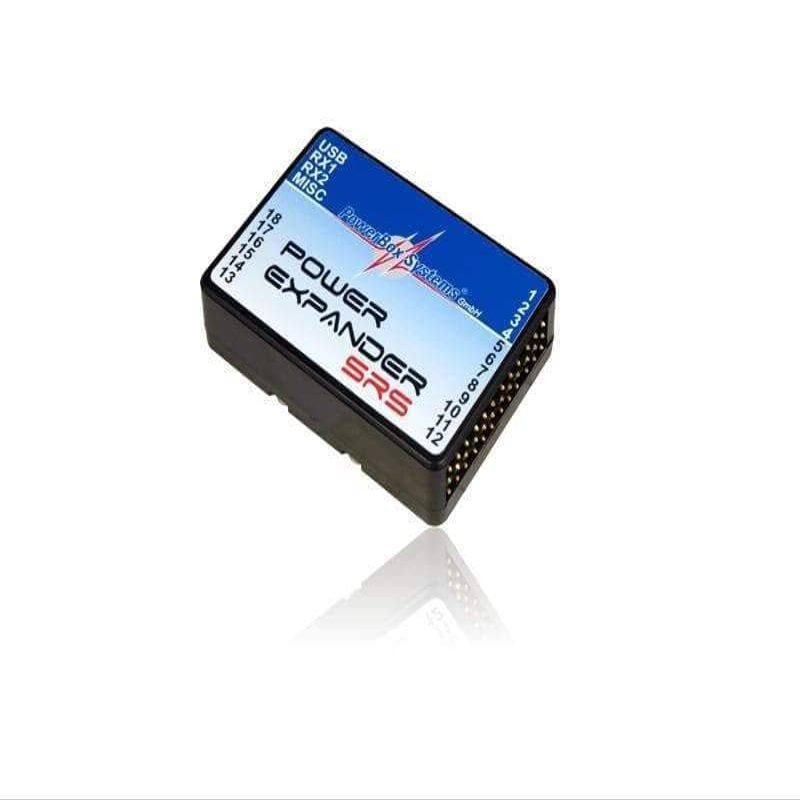

PowerBox PowerExpander SRS with MPX Connector - PBS3430

Description

• Access to a maximum of eighteen channels . Simple wiring: the receivers are connected using a serial link
• Integral SRS, allowing the use of two receivers .Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
• High-current power socket MPX or Deans
• S-BUS output for use in a BUS system.Hold/Failsafe option for each output individual
• User-variable frame rate Can be updated using the PowerBox USB Interface

The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers.
Product Description:
The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly enhanced, because two receivers can be connected to the PowerExpander SRS. The integral Serial Receiver System selects any receiver, and - if an error should occur - switches over automatically to the receiver which is still operating.
This represents a simple method of doubling the number of receiver aerials. The unit is fitted with a high-current socket to ensure that the power supply can cope with the large number of channels which it makes available. It also features an output carrying the S-BUS signal, which makes it possible to use any radio control system in conjunction with an S-BUS wiring arrangement.
As power supply we recommend the PowerBox BaseLog or the PowerBox Gemini II.
Features:
Access to a maximum of eighteen channels
Simple wiring: the receivers are connected using a serial link
Integral SRS, allowing the use of two receivers
Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
High-current power socket MPX or Deans
S-BUS output for use in a BUS system
Hold/Failsafe option for each output individual
User-variable frame rate
Can be updated using the PowerBox USB Interface
Technical Data:
Operating voltage4.0V - 9.0V
Power supply2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state25mA
Maximum load currentPeak 30A
Signal inputserial
Supported RC systemsFutaba, Spektrum, Jeti, Graupner, JR, Multiplex
Receiver redundancySRS
Channels18
Servo sockets18
Servo signal resolution0.5s
Signal frame rate12ms, 15ms, 18ms, 21ms
Dimensions55 x 40 x 14 mm Weight25g Temperature range-30C to +75C
