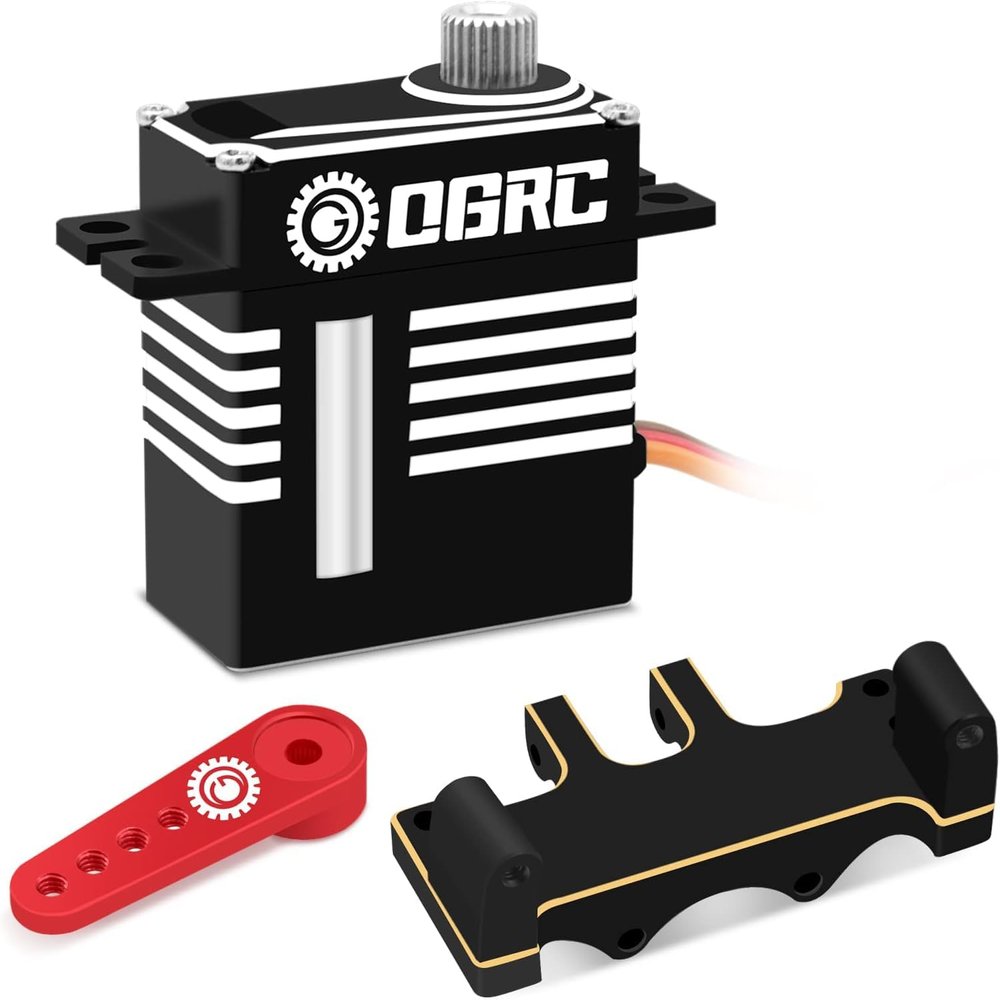

OGRC Digital Steering Servo with Brass Servo Mount and Servo Horn for Axial 1/24 SCX24 C10 JLU Bronco Deadbolt Gladiator RC Crawler Car Upgrade Parts

Description

• High Voltage Capable OGRC stainless steel gear digital servo (4.8-8.4v input range) offering a stable and reliable steering to improve driving efficiency.
• Great PerformanceFull CNC aluminium structure to helps keep low operating temperatures. Low wear and tightly meshed all metal gear train has better accuracy and longer service life.
• Perfect CombinationThis servo is equipped with brass mount and metal servo horn, replaces the plastic accessories, easy upgrade from the original part.
• High executionOGRC high torque servo has lightning-quick steering response, 0.08sec/60 degree (8.4V), let you have no more anxieties about slow response of your RC car.
• Wide ApplicationThis servo set is specially designed for 1/24 Axial SCX24 C10/JLU/Gladiator/Bronco/Deadbolt/B17 and other RC modes.

Servo Specification:
Item Name: OGRC SCX24 Servo
Potentionmeter Type: Carbon Membrane Magnetic Sensor
Chip Type: Digital
Gear Material: Strength Steel
Case Material: AL6061T6
Wire Length: 2205mm
Wire Diameter: 0.15m
Weight: 201g
Operation Voltage Range: 4.8V to 8.4V
Operation Temperature Range: -20 to +60C
Working Frequency: 1520us/333Hz
Dead Band Width: 2
Horn Gear Spline: 25T 4.9mm
Stall Torque:
5.0kg-cm (70 oz-in) @ 4.8V
6.0kg-cm (80 oz-in) @ 6.0V
6.8kg-cm (95 oz-in) @ 7.4V
7.5kg-cm (104 oz-in) @ 8.4V
Operating Speed:
0.13sec/60 @ 4.8V
0.12sec/60 @ 6.0V
0.10sec/60 @ 7.4V
0.08sec/60 @ 8.4V
Fast Continuous Operating Current:
400mA @ 6.0V
500mA @ 7.4V
600mA @ 8.4V
Stall Current:
1200mA @ 6.0V
1350mA @ 7.4V
1500mA @ 8.4V
Servo Mount Specification:
Material: Brass
Color: Black
Weight: About 13.2g
Package List:
1 x SCX24 Steering Servo
1 x Brass Servo Bracket
1 x Metal Servo Horn
1 x Accessories Kit
