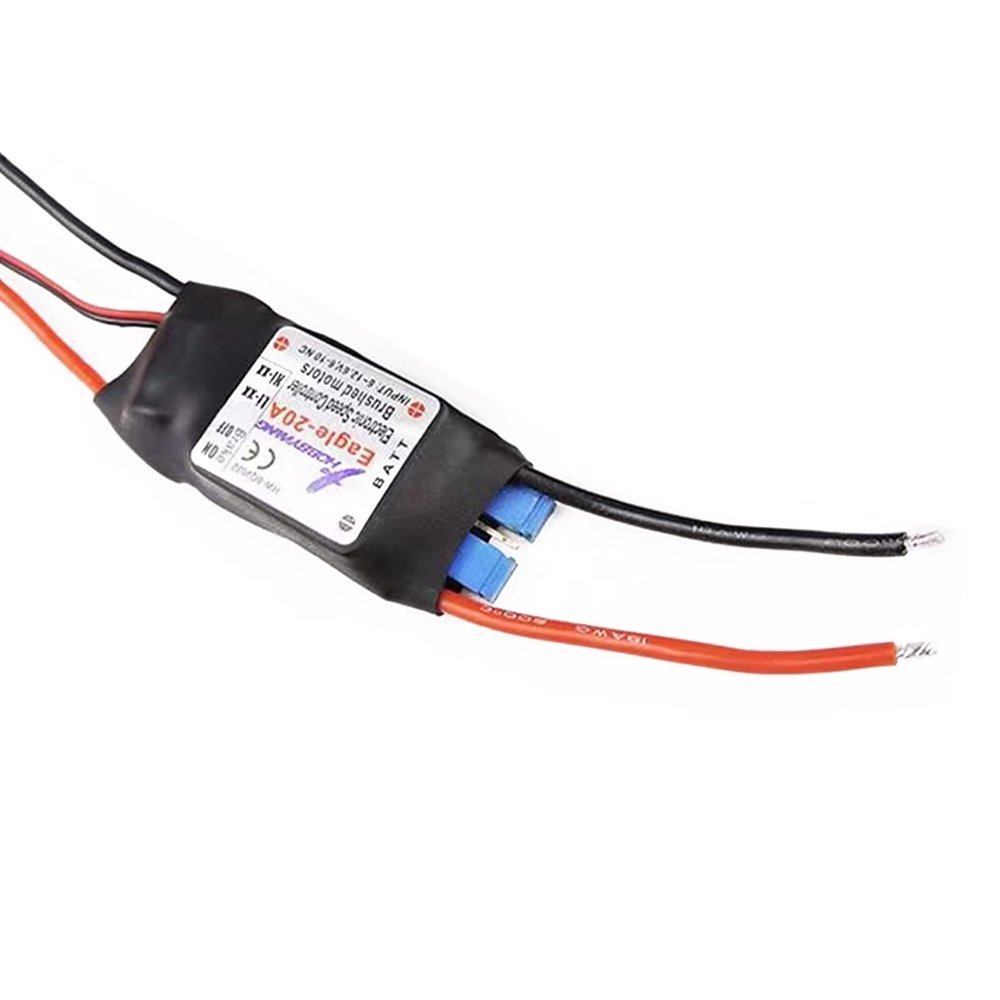

MOOKEENONE FPV RC Airplane Model Brushed Motor ESC for Hobbywing Eagle 20A Speed Controller

Description

• Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
• Brake Settings: The brake function can be enabled or disabled by a jumper.
• Battery Type: The battery type can be chosen by a jumper.
• Low Voltage Protection Threshold: For lithium batteries, the threshold for each cell is 3.0V. When the battery's voltage is less then the threshold, the ESC will gradually reduce the output power to prevent the battery from over discharging.
• Over-heat protection: When the temperature of the ESC is over 110C the ESC will gradually reduce the output power.

Features:
Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Brake Settings: The brake function can be enabled or disabled by a jumper.
Battery Type: The battery type can be chosen by a jumper.
Low Voltage Protection Threshold: For lithium batteries, the threshold for each cell is 3.0V. When the battery's voltage is less then the threshold, the ESC will gradually reduce the output power to prevent the battery from over discharging.
Over-heat protection: When the temperature of the ESC is over 110C the ESC will gradually reduce the output power.
Throttle signal loss protection: The ESC will gradually reduce the output power if the throttle signal is lost for 1 second, further loss for 2 seconds will cause its output to be completely cut-off.

Specifications:
Output: Continuous 20A, Burst 25A up to 10 Secs.
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NIMh battery.
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2kHz.
Size: 45mm (L) x 21mm (W) x 8mm (H)

Package include:
1* Brushed ESC
