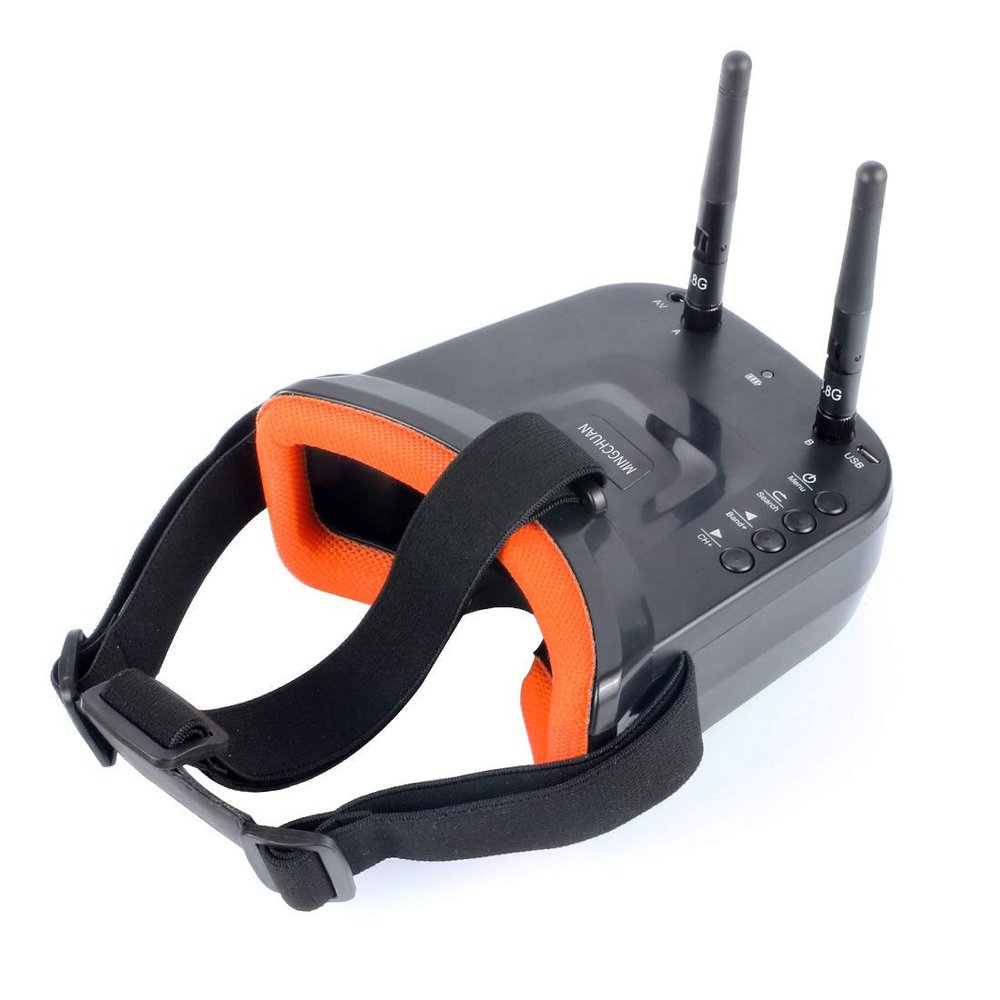

Mingchuan Mini FPV Goggles 3 inch 480 X 320 Display Double Antenna 5.8G 40CH Built-in 3.7V for RC Racing Drone (Orange)

Description

• Double antenna reception to make the signal more stable
• RaceBand 40 channel, Auto-Searching
• 3.0 Inch 480*320 dot high brightness LCD screen
• Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand
• Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery

Feature:
Real-time video return 5.8G FPV Receiver
Small size and light weight
Low power consumption, Working current 300~330mA
Universal USB charging interface
Real-time video return, Very low time-delay
Bilingual menu in support of Chinese and English
Support external video signal input
Support a key search frequency
Support AV signal output (Connect external DVR)

Specification:
Model Name: Mini FPV Goggles
LCD ScreenScreen
Size: 3.0 Inch
Resolution: 480*320
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 350cd/m with high brightness backlight LED
Video delayVideo time-delay less than 20ms
Lens4X Fresnel Lens, 92% transparent rate no distort of light
Interface
Antenna :2 X RP-SMA male
USB:To charge the battery
AV :JackExternal video signals input or internals AV signal output
LanguagesEnglish and Chinese
Power Supply
Power adapter: DC5V/1A (USB interface)
Battery:
3.7V/1200mAh,Each full charge revive around 2.5hr working time
Power Consumption:
*The device operating current of 300~330mA at 3.7~4.2V;
*Built-in battery maximum charge current of 500mA

Safety instruction:
Read the entire instruction manual to become familiar with the features of the product before operating.
Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
Please avoid wet or humid environments.
Please use standard USB charger, charging voltage can only be 5V.
AV output and Video input cannot work at the same time, It is forbidden to insert external video in RF receiving mode.
