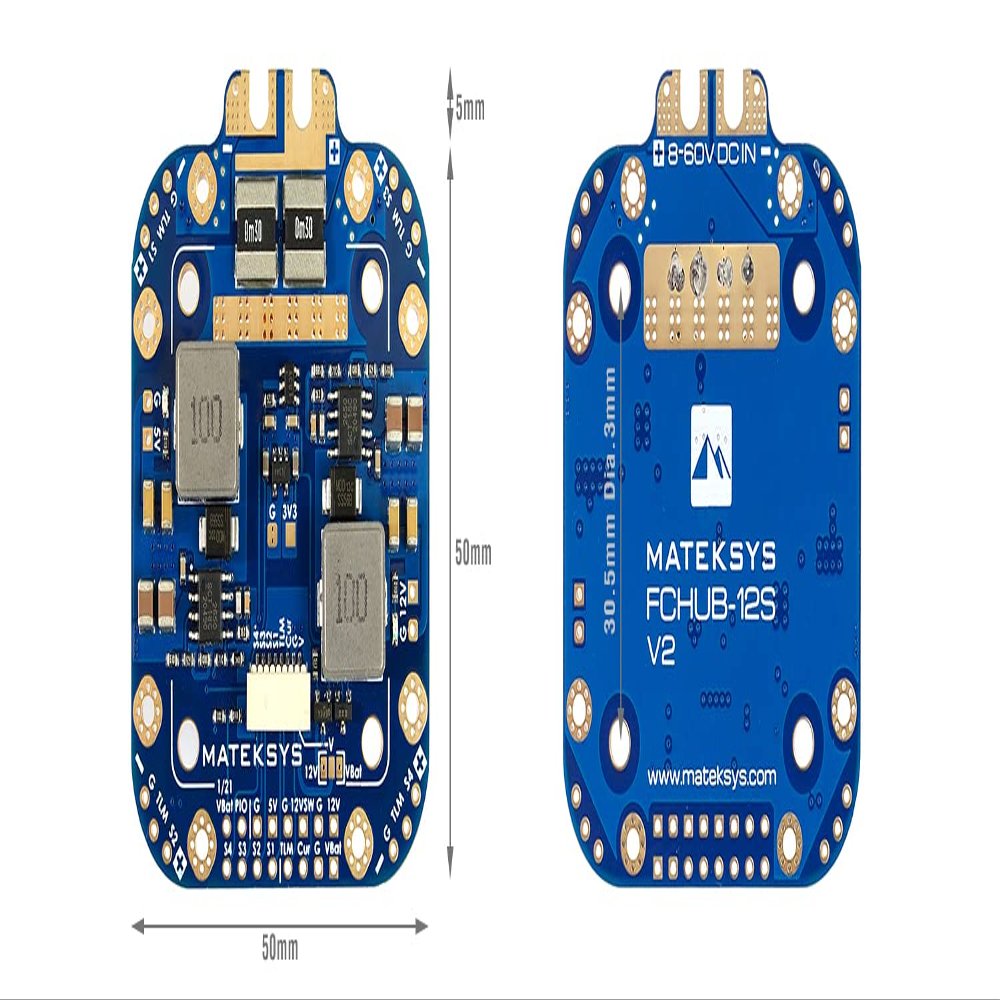

Matek X Class 12S PDB Power Distribution Board FCHUB-12S Supports 8~60V DC Input, with 5V 5A and 12V 4A Regulators up to 440A Current Sensor for 4/5 inch 220mm 210mm 250mm X Style

Description

• This FCHUB-12S is designed specificaly for X Quad. supports 8~60V DC (3~12S LiPo) input, 5V 5A and 12V 4A regulators, high precision up to 440A current sensor range, suit for 4/5 inch Carbon Fiber FPV Racing Quad Quadcopter Frame
• Matek has stepped up their game with this FCHUB-12S, support up to 12s lipo battery.
• 4x70A cont, 4x110A burst. 4x ESC power /signal/ telemetry pads. Current Sense : 440A, 3.3V ADC, Scale 75
• Compatible with H743-SLIM, F405-HDTE
• BEC 5V output (5V pad), BEC 12V output (12V pad), Switchable 12V output (SW12V pad), BEC 3.3V output

PDB

Input voltage range: 8~60V (3~12S LiPo)
4x70A cont, 4x110A burst
4x ESC power /signal/ telemetry pads
Current Senor: 440A, 3.3V ADC, Scale 75
2x LED indicators for 5V, 12V
1K:20K voltage divider built-in

JST-SH 8pin connector

V pad: 12V or VBat voltage selectable
G: GND
Curr: current sensor signal
TLM: for BlHeli32 ESC telemetry
S1~S4: ESC signal

BEC 5V output (5V pad)

Voltage: 5.1 +/- 0.1VDC
Continuous current 5 Amps, Max.6A
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

BEC 12V output (12V pad)

Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
Continuous current 4 Amps, Max.5A
Input voltage<12V, Output voltage = Input voltage
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

Switchable 12V output (12VSW pad)

12V ON/OFF switchable via PINIO(high/low level)
support constant 2A
can be use for powering VTX,LED etc.

BEC 3.3V output

Linear Regulator
Continuous current: 500mA

Physical
Mounting: 30.5 x 30.5mm, 3mm
Dimensions: 55 x 50 x 6 mm
Weight: 21g

Package Includes:
1x FCHUB-12S V2
1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
