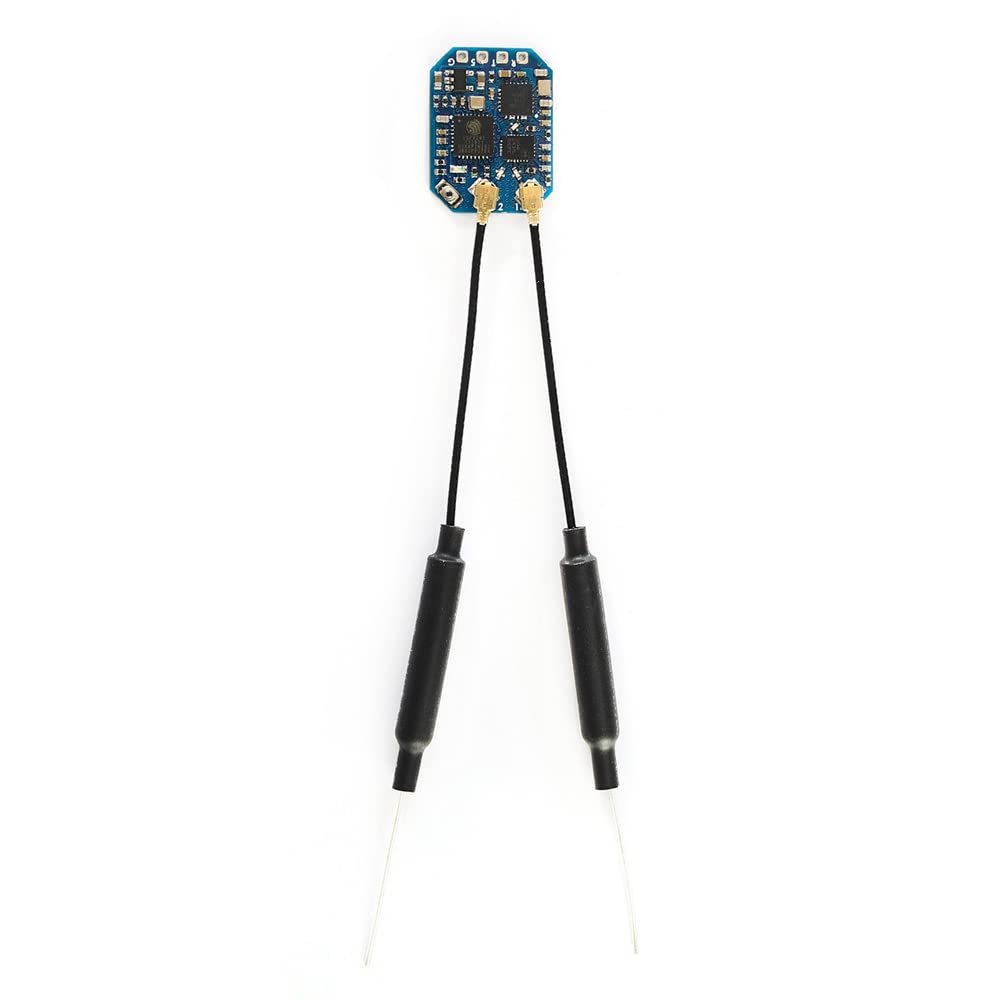

MATEKSYSSYS ExpressLRS 2.4GHz Receiver - ELRS R24 D - 0.3

Description

• The MATEKSYSSYS ELRS R24 D Receiver is a 2.4GHz ExpressLRS diversity receiver with 22.5dbm Telemetry Power and two IPEX MHF 1 antennas.VIDEO: Mateksys Express LRS receivers ELRS-R24-S and ELRS-R24-D under a microscopeFeatures22.5dbm Telemetry PowerIPEX MHF1 Antennas2.4GHz FrequencyExpressLRSSpecificationsPower dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)Diversity (antenna-switching), default ANT2RF Frequency: 2.4GHz (2400~2480MHz)Telemetry power: 22.5dbm~23dbmInput

The MATEKSYSSYS ELRS R24 D Receiver is a 2.4GHz ExpressLRS diversity receiver with 22.5dbm Telemetry Power and two IPEX MHF 1 antennas.VIDEO: Mateksys Express LRS receivers ELRS-R24-S and ELRS-R24-D under a microscopeFeatures22.5dbm Telemetry PowerIPEX MHF1 Antennas2.4GHz FrequencyExpressLRSSpecificationsPower dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)Diversity (antenna-switching), default ANT2RF Frequency: 2.4GHz (2400~2480MHz)Telemetry power: 22.5dbm~23dbmInput voltage: 4~9V DC @ 5V padAntenna connector: IPEX MHF 1ESP8285, SX1280/1281IMLTRTSE2431L RX_gain: 12.5dBWeight: 3g (With Antennas)PCB size: 21mm x 15mmReceiver protocol: CRSFPA/LNA: SE2431LFIRMWARE TIPSELRS-R24-D: Enable "USE_DIVERSITY" (checked) when flashing in ExpressLRS configuratorFirmware: ExpressLRS MATEKSYS_2400_RXFirmware update via UART or WIFIDownloadsELRS_V2.0.0_NoPhrase_ELRS-R24-D.binELRS_V1.2.0_NoPhrase_ELRS-R24-D.binESP_NodeMCU-PyFlasher.exe3D Step FileIncludes1x MATEKSYSSYS ExpressLRS 2.4GHz Receiver - ELRS R24 D2x IPEX MHF1 Antennas
