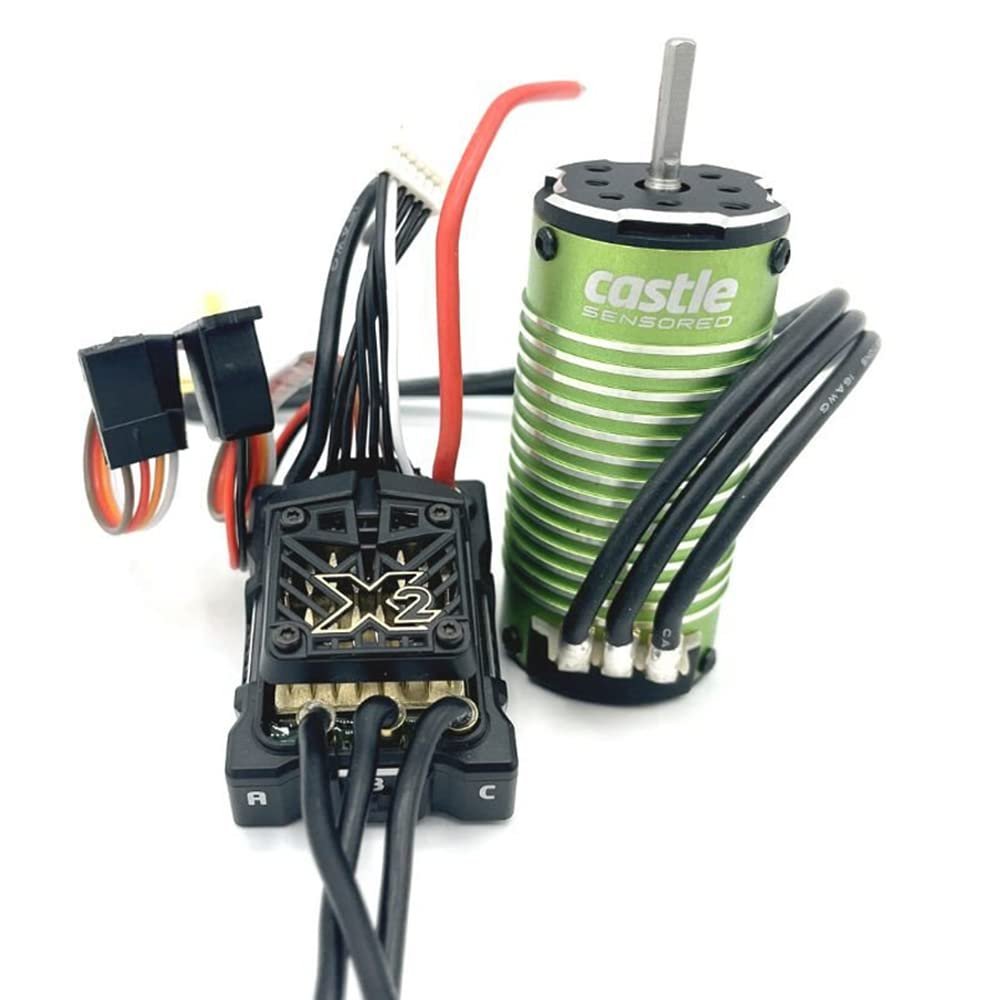

Castle Creations 010-0171-07 Mamba Micro X2, 16.8V, WP ESC w/ 1007-8450KV Sensored Motor, Black

Description

• CASTLE is a top producer of high performance, high quality products for RC aftermarket upgrades with a 25-year track record of innovation and record-breaking performance. Our brushless power systems are ideal for those who desire higher efficiency, advanced features and improved optimization for their stock upgrade or build. The Micro X2 ESC is proudly DESIGNED, ASSEMBLED AND SUPPORTED IN OLATHE, KS. USA.
• Take your 1/14th or 1/16th scale RC to the next level with a Castle Mamba Micro X2 setup. This brushless sensored ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 3lbs and up to 4s LiPo. The sensored 1010-4400kv motor allows for smooth startup with heaps of torque and low temperatures. Vehicle examples include: 1/16th Traxxas Mini E-Revo, 1/16th Traxxas Slash 4WD. Traxxas 1/16th Summit, Losi 1/16th Mini-B Pro Roller 4WD, Losi 1/16th Mini JRX2 (some vehicles/chassis may require modifications to allow esc and/or motor fitment.)
• This 2s-4s capable waterproof ESC (when used with a 4s capable motor) features CRYO-DRIVE Technology for enhanced thermal performance, aux-wire functionality for on-the-fly adjustments, sensored motor support, and data logging.
• ESC settings are easily optimized through the Castle Link app via Windows PC with a Castle USB adapter (coupon for free adapter included with purchase), or wirelessly with the Castle B-LINK Bluetooth Adapter (sold separately) and free Castle Link app for Android or iOS.
• This Mamba Micro X2 does not contain an internal BEC, but your purchase includes a FREE Castle Creations external 10-amp CC BEC, a $24 value! This upgraded BEC has a wider range of BEC voltages and much higher current capacity.

PUTTING THE X IN EXTREME! The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s (when used with 4s capable motors). We have also added DATA LOGGING and our CRYO-DRIVE TECHNOLOGY which allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof and has sensored motor support. This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 2.75lbs and up to 2s LiPo. The sensored 1007-8450kv motor allows for smooth startup with heaps of torque and low temperatures This Mamba Micro X2 does not contain an internal BEC, but your purchase includes a FREE Castle Creations external 10-amp CC BEC, a $24 value! This upgraded BEC has a wider range of BEC voltages and much higher current capacity. Features include input voltage range of 2S-4S, waterproof design, (included CC BEC is not waterproof), convenient transmitter programming for six common adjustable settings, additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included), telemetry ready (compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters), auxiliary wire functionality allows for on-the-fly adjustments such as Max Power and Max Brake and audible alerts that will notify you of possible issues with calibrations and error conditions. Your purchase includes Mamba Micro X2 ESC with 4mm connectors, external 10-amp CC BEC, 1007-8450Kv sensored motor, sensor harness, coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter, Quick Start Guide and Castle Decals. Battery Connector required for operation, we recommend Castle 4.0mm polarized connectors, Deans Ultra Plugs or XT60 connectors. The ESC measures 1.64 x 1.16 x 84, motor measures 1.9 x 1.10. Mounting hole specifications: M2.5 @ 14mm & 16mm; M3 @ 19mm.
