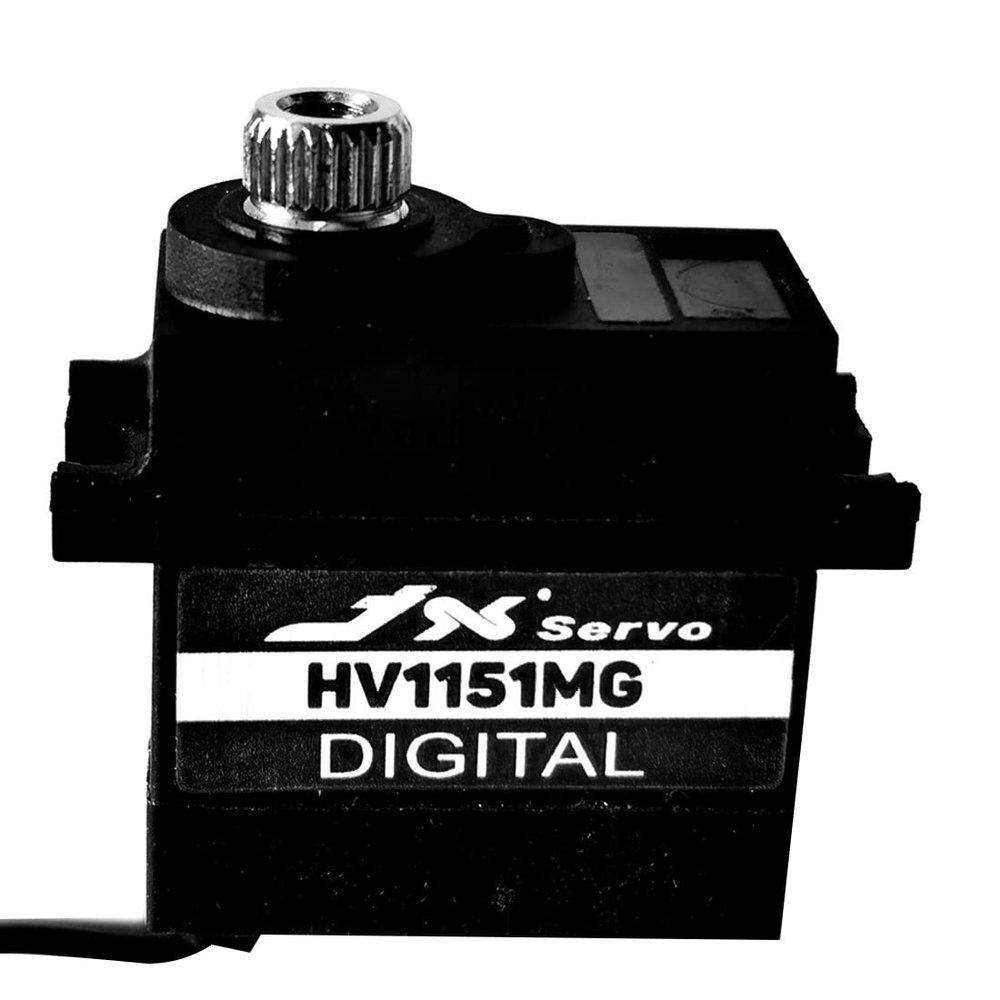

JX Servo PDI-HV1151MG 15g 8.4V Waterproof Metal Gear Mini Digital Servo Compatible with RC Car

Description

• Application: Compatible with TRX-4/BRX01, And the remote control car that needs to change gears.
• Dead band: 2?s 1520?s / 330hz. Motor: coreless motor, Double ball bearing, Extra long cable 360mm, Spline 25T.
• Operating Speed (6V): 0.12sec/60, Operating Speed (8.4V): 0.1sec/60.
• Pulse width:1000-2000?s=90, Pulse width:500-2500?s=180
• Stall Torque (6V): 3.5kg.cm, Stall Torque (8.4V): 4.5kg.cm. Operating Temperature: 20deg ~ 60deg

JX Servo PDI-HV1151MG 15g 8.4V Waterproof Metal Gear Mini Digital Servo Compatible with RC Car

Features:
- High voltage 8.4V waterproof mini servo
--- High precision metal gear
--- Double ball bearing
--- Extra long cable 360mm

Product parameters:
Model: PDI-HV1151MG 8.4V Mini Waterproof 4.5kg
Pulse width:1000-2000?s=90
Pulse width:500-2500?s=180
Dead band: 2?s 1520?s / 330hz
Motor: coreless motor
Operating Speed (6V): 0.12sec/60
Operating Speed (8.4V): 0.1sec/60
Stall Torque (6V): 3.5kg.cm
Stall Torque (8.4V): 4.5kg.cm
Dimensions: 23.2 x 12.5x 25.6mm
Weight: 15g(0.5oz)
Connector Wire Length:360 mm
Bearing: 2BB
Operating Temperature: 20deg ~ 60deg
Waterproof
Spline: 25T
