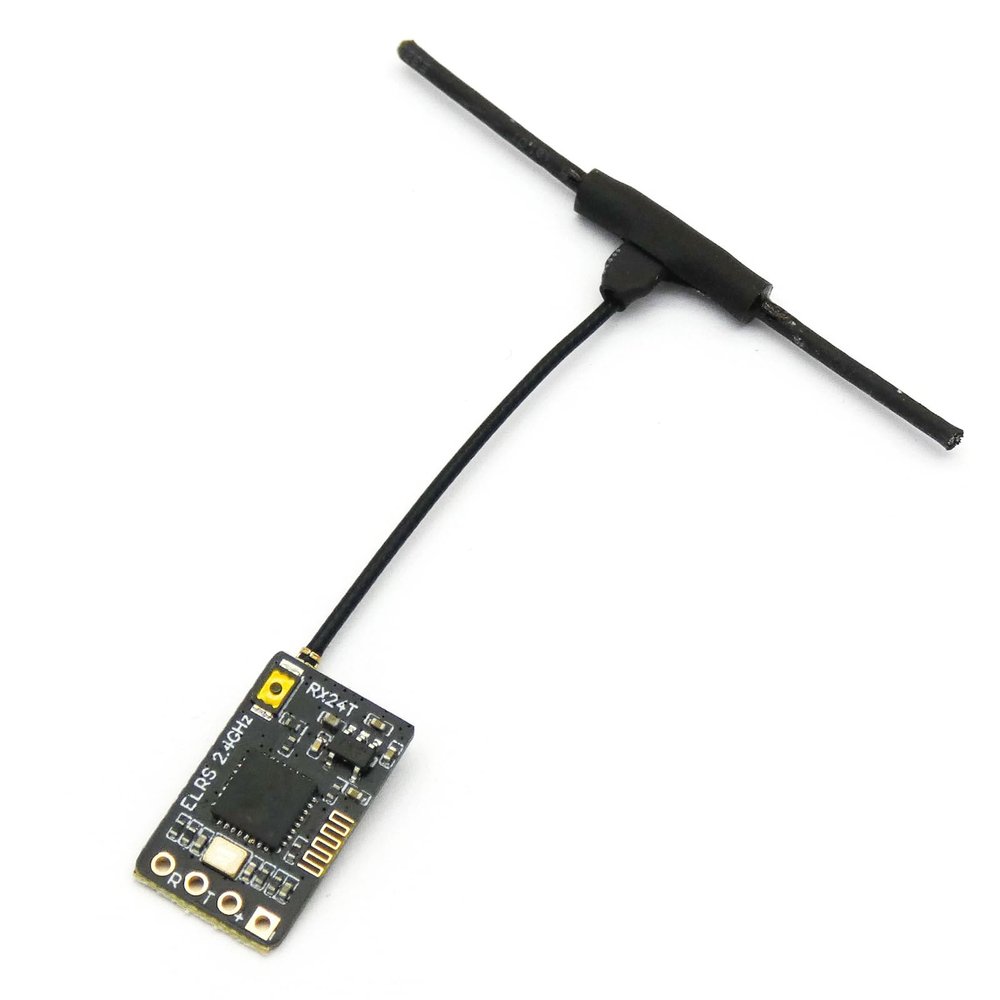

JHEMCU RX24T 2.4GHz Micro Receiver ExpressLRS ELRS 0.6G

Description

• Specifications: Model: RX24T RC Receiver Weight: 0.6g(without antenna) Size: 11*18*3 mm 2.4G ISM type ESP8285 MCU SX1280IMLTRT RF Frequency range: 2400 MHz To 2500 MHz Maximum receiving refresh rate: 500Hz Minimum receiving refresh rate: 25Hz Working voltage: 5V Peak gain: 3.16dB RX24T: Half-wave dipole omnidirectional T-shaped antenna
• Package Contents: 1 x RX24T RC Receiver 1 x T antenna 4 x Wire Harness

Link Step 1 - - After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
Link Step 2 - After the 2.4G ELRS tuner module and the remote control are correctly connected, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
Link Step 3 - After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.
LED Indicators - Double flash: code matching mode / Slow flashing: No transmission signal is received / Steady on: receive the transmit signal / Fast flashing: WIFI upgrade mode

Specifications: Model: RX24T RC Receiver Weight: 0.6g(without antenna) Size: 11*18*3 mm 2.4G ISM type ESP8285 MCU SX1280IMLTRT RF Frequency range: 2400 MHz To 2500 MHz Maximum receiving refresh rate: 500Hz Minimum receiving refresh rate: 25Hz Working voltage: 5V Peak gain: 3.16dB RX24T: Half-wave dipole omnidirectional T-shaped antenna
Package Contents:
1 x RX24T RC Receiver 1 x T antenna 4 x Wire
