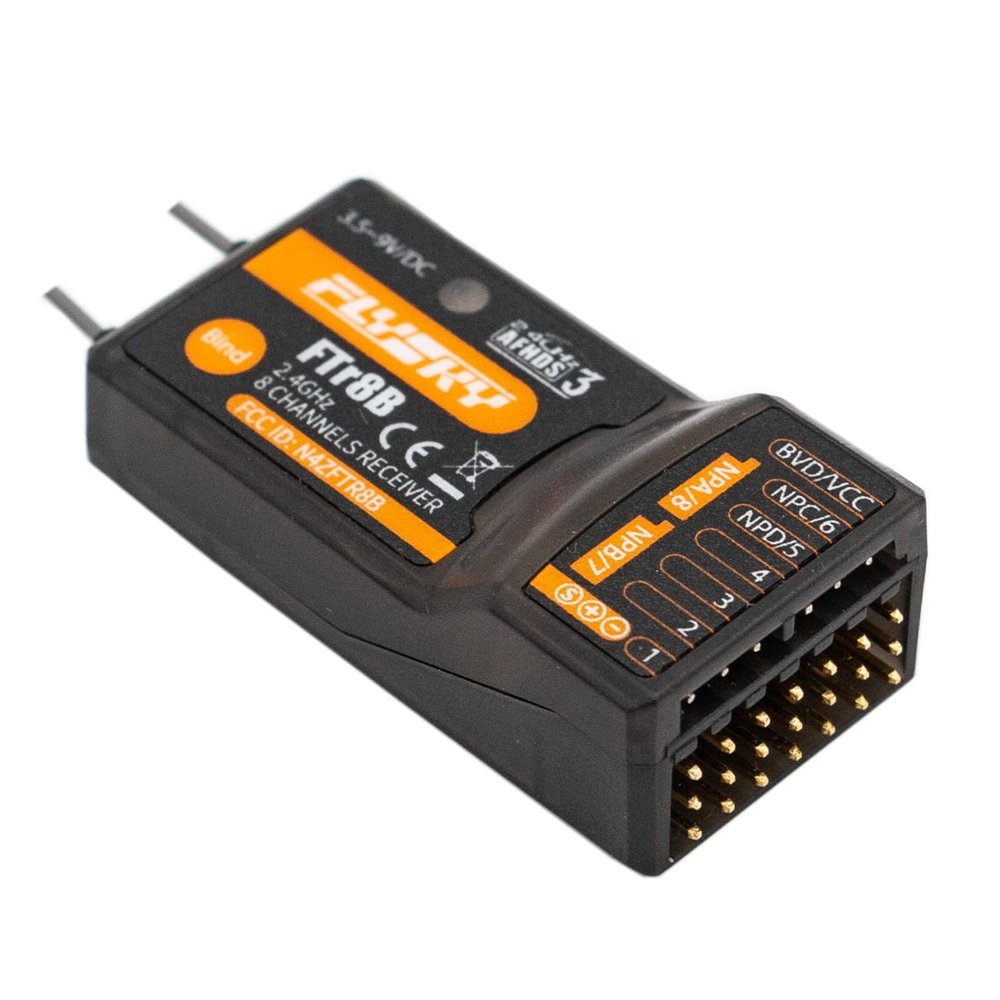

HTLNUZD Flysky FTr8B 2.4GHz Remote Control Receiver Dual Antenna, 8CH PWM/PPM/i.Bus/S.Bus Output Compatible AFHDS 3 RF Modules for PL18 NB4 NB4 Lite Transmitter RC Glider Vehicles

Description

• Easy to carryWith compact size and light-weight, no worry to give any burden to your RC model.
• Model Typecan be equipped with RC toy such as fixed wing, glider, helicopter, delta wing engineering vehicle etc.
• FTr8B receiver is compatibleall AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302 etc).
• 2.4G ProtocolAdopting Flysky the third generation automatic frequency hopping digital system (AFHDS 3).
• High configurationwith dual antennas, bidirectional data transmissionPWM/ 8 ChannelsCH1 interface support i-bus out/PPM/i.BUS out/S.BUS.

Binding
Press and hold the receiver BIND button [14] while powering on the receiver, release
the BIND button after receiver is powered on, the LED [13] on the receiver will flash rapidly;
Put the transmitter into bind mode;
The binding process is complete when the LED on the receiver stops flashing and is on continuously.
If a transmitter that has had its radio frequency (RF Standard) set to AFHDS3 1 way
(please refer to your transmitter user manual) enters bind mode,
the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED
stops flashing and is on continuously, the binding process is complete.
Check to make sure the transmitter and receiver functions are working correctly,
repeat steps 1 to 3 (binding process) if any problems arise.
Forced update
If after a firmware update is performed and the transmitter is
unable to bind to the receiver, the receiver may need to be put into forced update times.
Power on the receiver while pressing the BIND button [14] for
then approximately ten seconds until the LED [13] flashes three times,release the BIND button.
Go to the RX Setup menu on your transmitter and select RX Update.
When the receiver LED flashes slowly, the update is successful.
Product Designation: FTr8B
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, NB4, NB4 Lite, etc.)
Model Type:fixed wing, glider, helicopter, delta wing, engineering vehicle, etc
PWM Channels: 8
RF:2.4GHz
2.4G Protocol:AFHDS 3
Antenna:Dual Antennas
Input Power:3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range:-10 to +60
Humidity Limit:20%-95%
Online Update:Yes
Dimensions:46*23.8*14.8mm
Weight:11.3g
Package List:
1 x FTR8B Receiver
