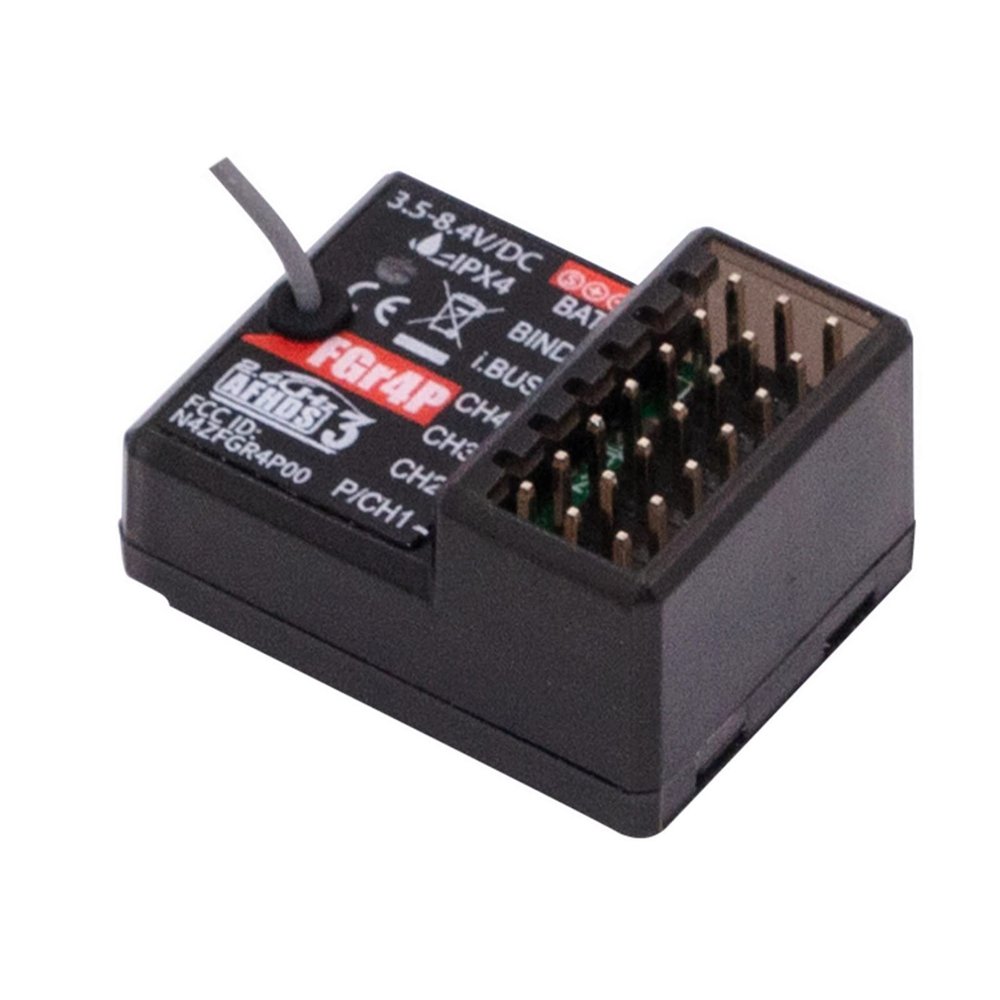

HTLNUZD Flysky FGR4P RC Car Boat Control Single Antenna Bidirectional Receiver, 2.4GHz 4CH AFHDS 3 PWM/PPM/I.Bus/S.Bus Output Compatible Noble FS-NB4 Remote Transmitter

Description

• Dimensions1.14*0.86*0.63inch(29 * 22 * 16.2mm) Weight: 8g.
• Suitable forFor Flysky NB4 Noble Radio Controller, Remote Controller.
• Data outputThe receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.
• Antenna wayIt uses a single antenna with two-way transmission capabilities and is designed to be compact and easy to install.
• System ConfigurationModulation system(GMSK, CSS), Frequency(2.402-2.480GHz), Transmitting power(<20dBm (EU) 2.4G).

Binding
Reconnect the power cable to the receiver.
Insert the binding cable into the receivers bind port.
Put the transmitter into bind mode; (See the transmitters instruction manual for more information).
Binding is successful when the receivers LED will
stop flashing Remove the power and bind cables from the receiver.
Plug the power cable into any other port, and the receivers LED
will start to flash quickly indicating that it has entered bind mode.
Check to make sure that the transmitter and receiver are working as expected,
if there are any issues or unexpected operation follow the steps above to bind again.
Specification
Model:FGr4P
PWM Channel:4
Wireless Frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range:> 200m (ground)
Antenna type:single antenna (150mm)
Power:3.5-8.4V
RSSI:Supported
Data port:PWM / PPM / i.bus / s.bus
Temperature range: -10 + 60
Humidity range: 20% -95%
Online Update:Yes
CH 1-CH 4:Connects the servos, power supply, or other components
i-BUS:for channel expansion or connect sensors
BIND:For bind cable
Battery:Connect the battery
Size: 29 * 22 * 16.2mm
Weight:8g
Package Information
Package size: 8 * 5 * 3cm
Package Weight: 10g
Package List
1*FGr4P Receiver
1*Binding Cable
