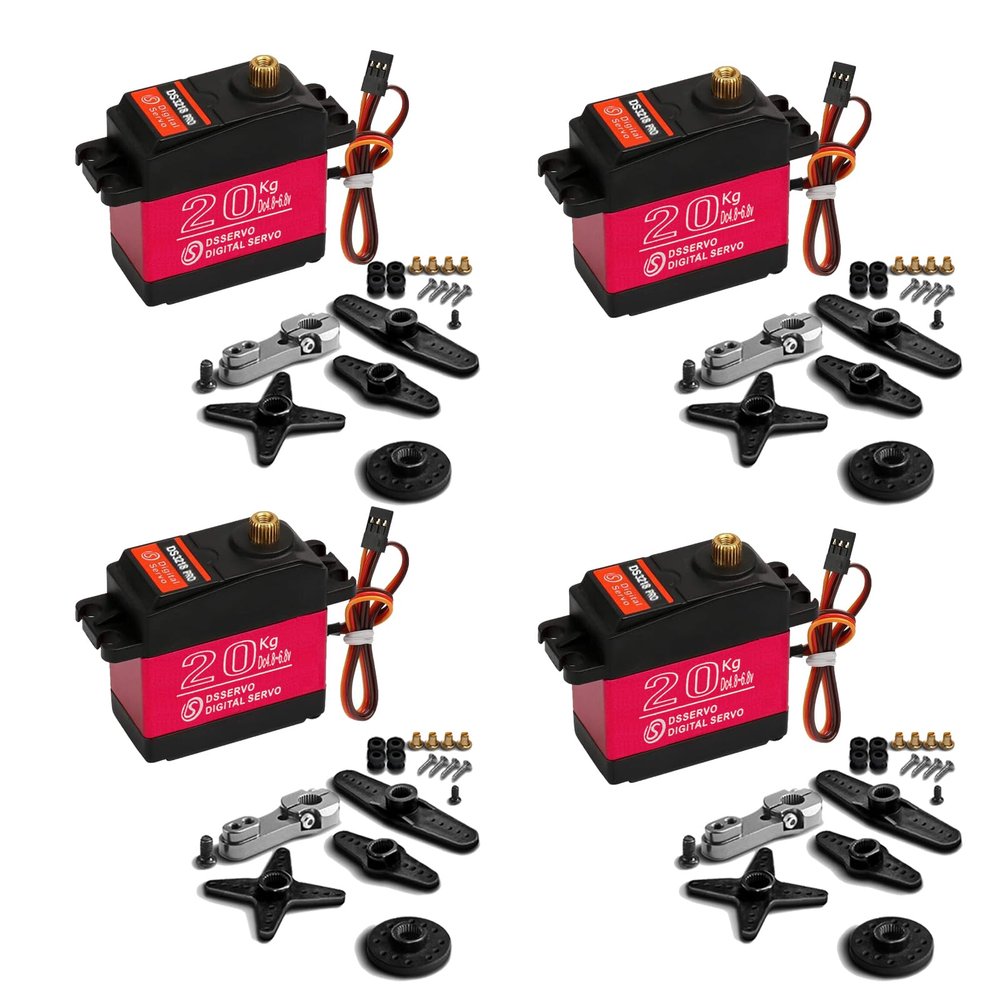

HOOYIJ 4Pack 20KG Digital Servo, DS3218 High Torque Full Metal Gear High Speed Waterproof RC Servo with 25T Servo Arm for 1/8 1/10 Scale Crawler RC Car Boat 180 Degree Control Angle

Description

• [20KG Digital RC Servo]-DS3218 full metal gear digital rc servo 180 degree. High control accuracy, good linearity and fast response.
• [Torque and Speed ] - Stall Torque: 19 kg/cm (263.8oz/in) at 5V , 21.5 kg/cm (298.5 oz/in) at 6.8V ; Speed: 0.16 sec/60(5V) / 0.14 sec/60(6.8V).
• [High Quality and Performance]- DS3218 rc servo motor equipped with full metal gears,CNC aluminium middle shell,waterproof rubber sealed housing and stable chip. The main features are fast heat dissipation, high torque, compatibility and responsiveness.
• [Wide Application]--Programmable 20kg digital standard servo can be widely used in rc airplanes, helicopters,fixed wing, quadcopters, aircraft,,automobiles,glider, boats, robot arm and other diy electronic project ect. Also perfectly compatible with 1/8 1/10 baja crawler rc car buggy truck ect.
• [Package Includes]--4 X DS3218MG 20kg digital RC steering servo 180 degree ; 4 X25T adjustable servo horn ; 4 X accessories bag.

HOOYIJ 20KG Digital Servo, DS3218 High Torque Full Metal Gear High Speed Waterproof RC Servo with 25T Servo Horn for 1/8 1/10 Scale Crawler RC Car Boat

Description

Features:
- High control accuracy, good linearity and fast response.
High performance digital standard servo, can be common use in robots, mechanical arms, 1/8 1/10 climbing cars and remote control toys.
- Equipped with strong copper & aluminum gears,CNC aluminium middle shell,and Water proof rubber seals screws.

PWM( Pulse Width Modulation ) controlled. The maximum control angle is 180 degree when pulse width 500s-2500s. Please make sure your controller pulse width can reach 2500s.

Sepcification:
Model: DS3218MG
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Control Angle: 180 degree rotation
Dead band: 3s
Pulse : 500us-2500us
Speed : 0.16 sec/60(5V) / 0.14 sec/60(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 1520s / 333hz
CE Certification: Yes
RoHs:Yes
wire length:17.7inches(45cm)
Size:
40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Package Included:
4 X DS3218MG Digital Servo
4 X 25T Adjustable Metal Servo Arm
4 X Accessories Bag
