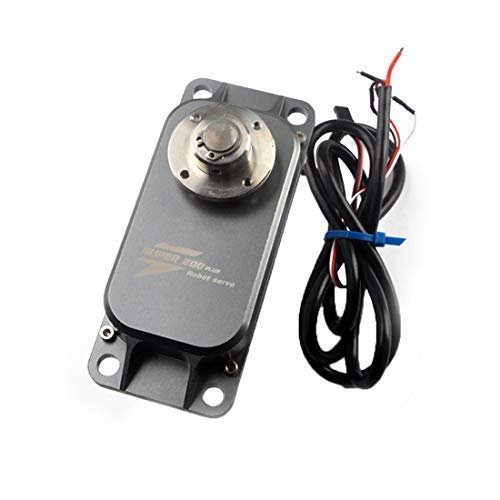

HAPPYMODEL 200kg / 400kg High Torque Metal Servo Steering Gear Suitable for 12v-24v Large Robot Arm DIY Models (200kg)

Description

• Voltage: 12V-24V (recommended battery power, can be customized if high voltage is required)
• Speed (no load): 24v about 0.46s/60 ; Application: Industrial robot arm ; Length, width and height: 132*55*116mm
• Maximum torque: 200kg.cm ; Rated torque: 70kg.cm ; Operating angle range: adjustable: minimum about 60 , up to about 300
• No-load current: <0.15A ; Stall current: 24v: <11A ; Input signal: PWM: 800us ~ 2200us, 50-400Hz
• Product included: 200kg/400kg high torque metal steering gear *1 , Accessories Kit*1

Happymodel 200kg / 400kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models

Brand: Happymodel
Voltage: 12V-24V (recommended battery power, can be customized if high voltage is required)
Speed (no load): 24v about 0.46s/60
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum about 60 , up to about 300
Weight: 759g
Length, width and height: 132*55*116mm

Application: Industrial robot arm

Product included:
200kg/400kg high torque metal steering gear *1
Accessories Kit*1
