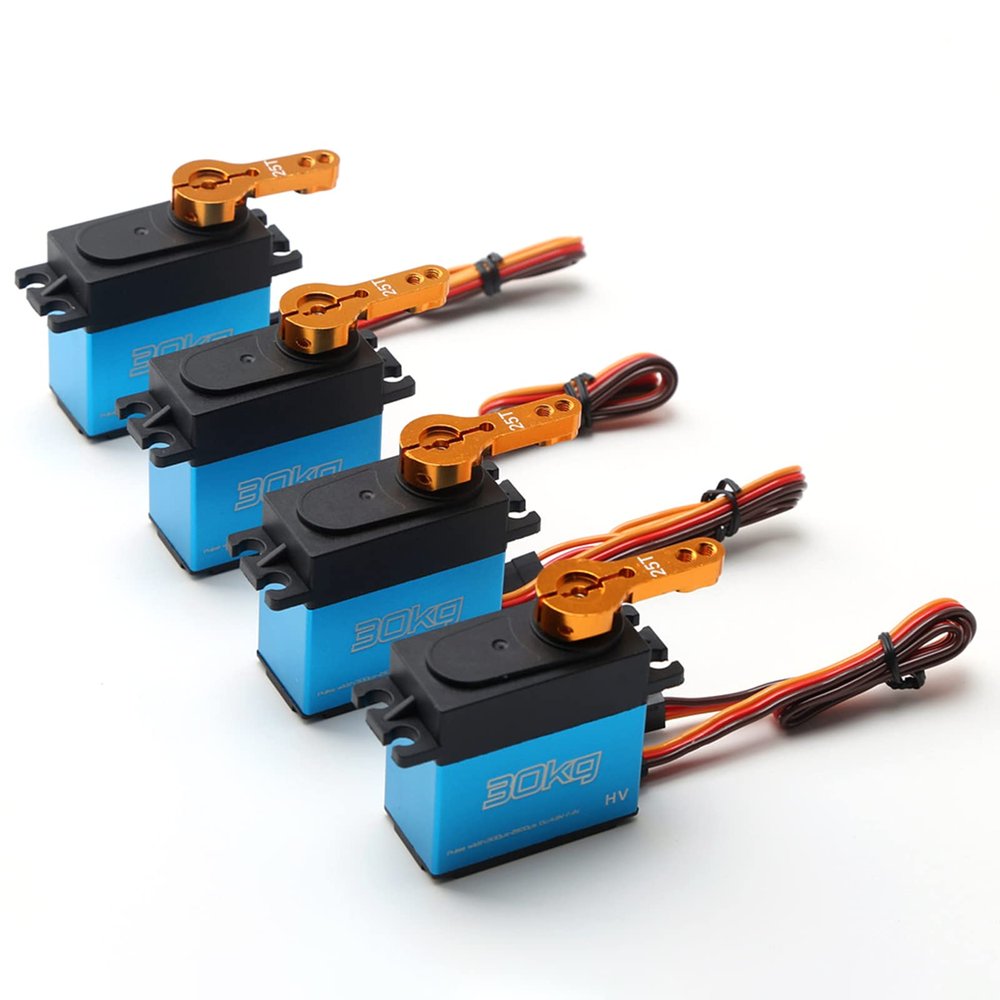

GoolRC 4PCS 30KG Digital Servo Metal Gear High Torque Servo with 25T Arm for 1/8 1/10 1/12 Scale RC Car Robot Boat (Control Angle 180?

Description

• Good performance digital servo, suitable for remote control, RC car, robots.
• Operat Voltage: 4.8V - 7.4V, no load speed: 0.24sec/60 - 0.17sec/60, peak stall torque: 29.5kg.cm - 32kg.cm.
• Size: 54*20*42.8mm, horn gear spline: 25T, Diameter: 5.9mm, gear type: 5 metal.
• A great choice for university professors and students who are interested in developing software for robot parts. Tailored for RC hobbyists to provide different experiences and delight.
• Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution.

Features:
Good performance digital servo, suitable for remote control, RC car, robots.
Operat Voltage: 4.8V - 7.4V, no load speed: 0.24sec/60 - 0.17sec/60, peak stall torque: 29.5kg.cm - 32kg.cm.
Size: 40.0*20.5*40.5mm, horn gear spline: 25T, Diameter: 5.9mm, gear type: 5 metal.
A great choice for university professors and students who are interested in developing software for robot parts. Tailored for RC hobbyists to provide different experiences and delight.

Specifications:
Item: Digital Servo
30KG Servo 180 Degree:
Apply Environmental Conditon:
1. Storage Temperature Range: -30C?80C
2. Operating Temperature Range: -25C?70C
Standard Test Environment:
1.Temperature Range: 25C?70C
2. Humidity Range: 65%10%

Mechanical Specification:
Size: 40.0*20.5*40.5mm
Weight: 69g2g
Gear type: 5 Metal
Limit angle: 360
Bearing: 2BB
Horn Gear Spline: 25T, Diameter: 5.9mm
Horn Type: Plastic, POM
Connector Wire: 320mm5mm
Motor: Carbon Brush Motor

Electrical Specification:
Operat Voltage: 4.8V - 7.4V
No Load Speed: 0.24sec/60 - 0.17sec/60
Runnig Current: 140mA - 200mA
Peak Stall Torque: 29.5kg.cm - 32kg.cm
Stall Current: 2600mA10% - 3400mA10%
Working Voltage Range: 4.8 - 7.4V

Control Specification:
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500?2500usec
Neutral Position: 1500usec
Running Degree: 1803(When 500?2500usec)
Dead Band Width: 5 usec
Rotating Direction: Counterclockwise (When 1000?2000usec)

Packing List:
4*30kg Digital Servo
4*25T Arm
