GEPRC GEP-F4-35A GEP-F411-35A AIO BMI270 F411 Flight Controller BLHELIS 35A 4in1 ESC 2-6S 25.5X25.5mm for FPV Freestyle Drones

Description

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
• Mainstream STM32F411 FC and runs stably.
• MPU6000 gyroscope with 8K sampling frequency.
• Rich external ports, it supports buzzer and LED light function.
• 26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

Changelog:
June 14th,2022: Gyro updated to BMI270.
June 25th,2022:Mounting Hole Size changed from 26.526.5mm to 25.525.5mm.
Summary:
I am gald to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.
GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It's 8.8g ultra light weight, and 26.5mm * 26.5mm mounting holes, suitable for most of the frames on the market.
Specifications:
Model: GEP-F411-35A AIO
MCU: STM32F411
IMU: BMI270/accelerometer(SPI)
Target: GEPRC_F411_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: T1 R1 / T2 R2
Beep: YES
LED: YES
USB Connector: micro USB
ESC MCU: 8BB21F16G
Intergrated LC Filter
Continue Current: 35A
Burst Current: 40A(10s)
Input Voltage: 2~6S (LIPO Battery)
ESC Protocol: Dshot300/600,Oneshot,Multishot
Blackbox:16Mb
ESC Target: G_H_30 BLS
Size: 32x32mm Board
Mount Holes: 25.525.5mm,M2

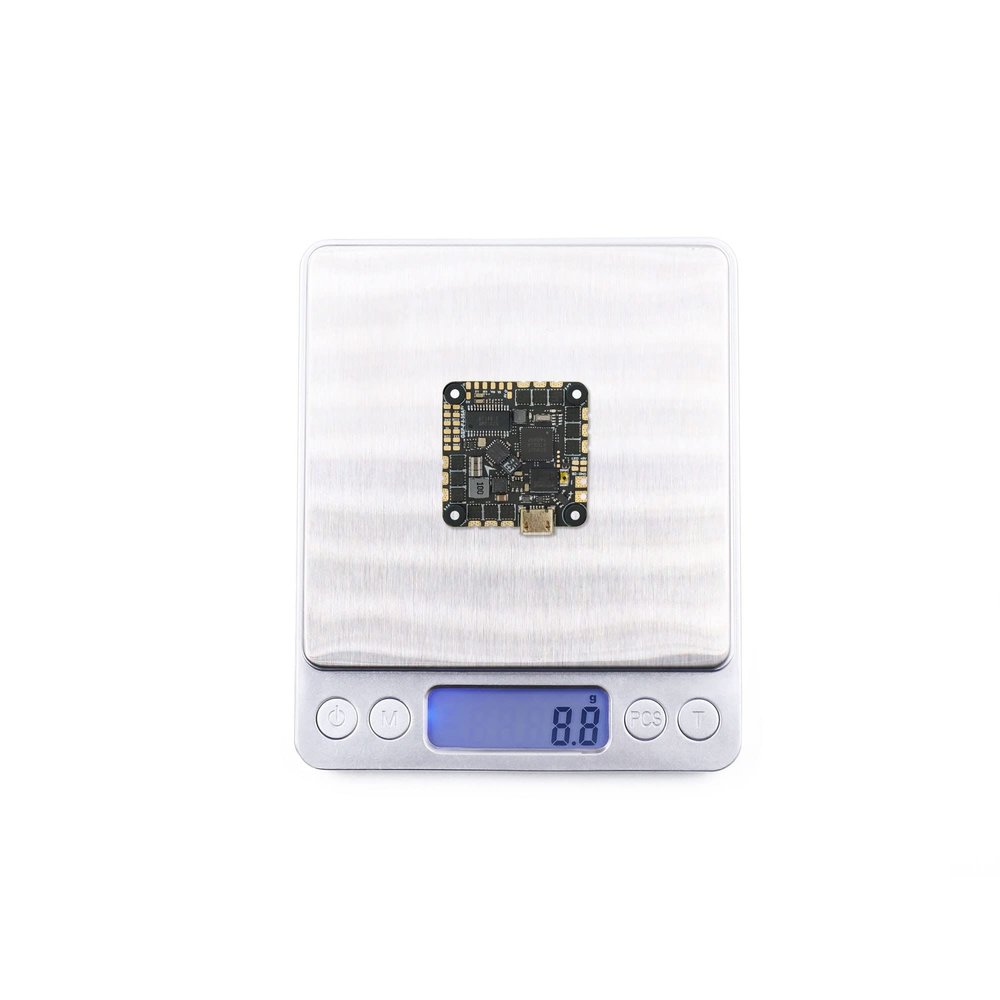

Weight: 8.8g
Features:
BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
Mainstream STM32F411 FC and runs stably.
MPU6000 gyroscope with 8K sampling frequency.
Rich external ports, it supports buzzer and LED light function.
26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.
Include:
1 x GEP-F4-35A-AIO
1 x XT30-7CM-18AWG cables
1 x 35V220UF capacitance
8 x M2*6.5mm Damping rings
