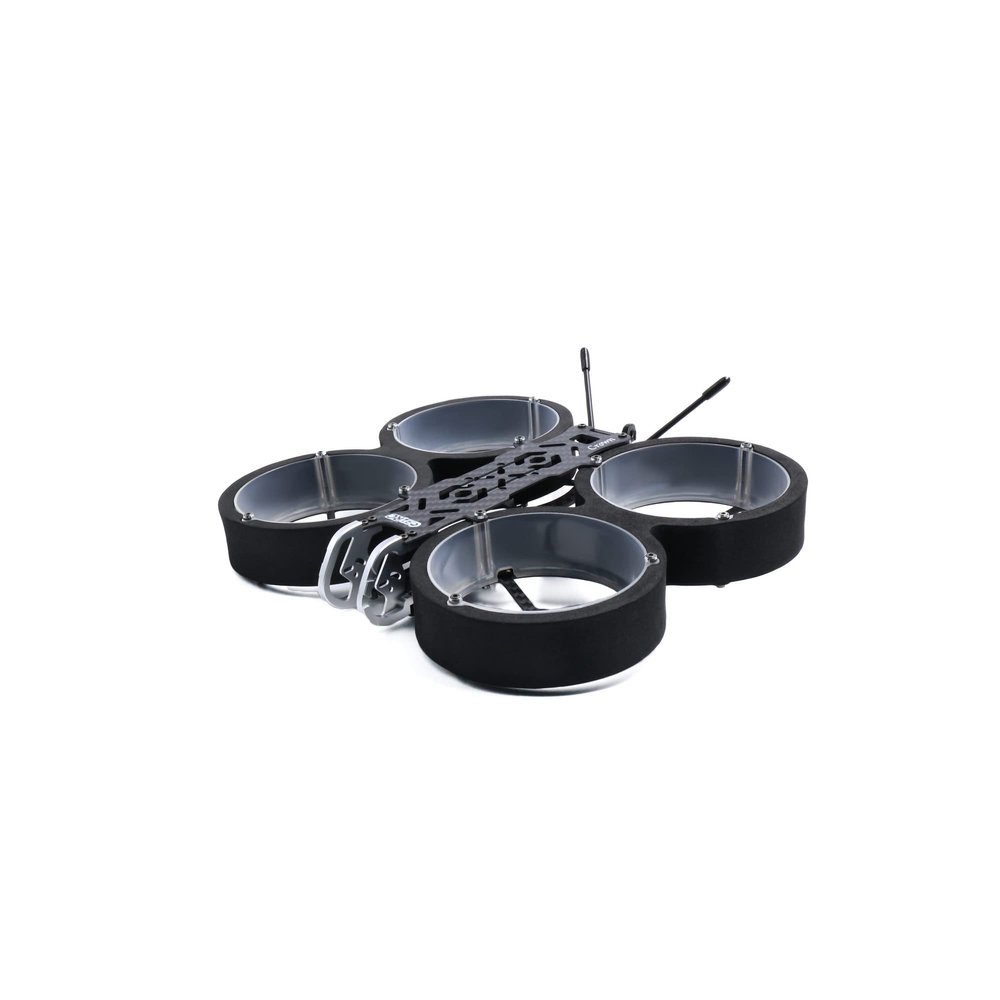

GEP-CW3 Crown HD Frame CineWhoop 3inch 156mm Wheelbase Propeller Guard for RC DIY FPV Racing Drone

Description

• GEP-CW3 Crown HD Frame CineWhoop 3inch 156mm Wheelbase Propeller Guard For RC DIY FPV Racing Drone

Introduction:
GEP-CW3 frame is carefully designed and design by the team to maximize noise reduction. It can be used with DJI FPV Unit and Vista HD vtx, and can also be used with analog vtx. The flight controller mounting holes are compatible with two sizes of 30.5*30.5mm and 20*20mm!
Parameter:
Brand Name:
Model: GEP-CW3
Wheelbase: 156mm
Inner diameter of duct: 3 inches
Camera size: 19~20mm
Suitable propeller size: 3 inch propeller
Motor mounting hole distance: 12mm
Flight controller mounting hole distance: 30.5*30.5mm/20*20mm
Top plate thickness: 2mm
Arm thickness: 2mm
Bottom plate thickness: 2mm
Weight: 136.2g
GEP-CW3 products include:
1 x top plate
1 x base plate
2 x arm
2 x camera aluminum parts (left/right)
12 x (M2*3.5*26mm) reticulated aluminum column
2 x (M2*4*26mm) reticulated aluminum column
4 x propeller (left/right)
2 x EVA protective cotton
4 x (M2 hole) pressure riveting nut
12 x (M2 hole) screw washer
18 x (M2*5mm) screws
4 x (M2*6mm) screws
18 x (M2*8mm) screws
16 x (M2*6mm) screws
4 x (M2*4mm) screws
4 x (M3*20mm) screws
4 x (M2*25mm) screws
4 x (M3mm) nylon nut
2 x (M2mm) nylon gasket
4 x (M2*5mm) nylon column
8 x (M2) nylon nut
2 x (M25*250mm) battery tie
4 x 3D printed feet
1 x antenna print
2 x receiver antenna tube
2 x battery non-slip mat
