FTYUERT Drone toy accessories for Mamba F405 / F4 for Aocoda-RC F405 V1.1 Flight Control 35A for BLheli-S 2-6S 4In1 Built-in Current Sensor ESC for RC Model for APEX(Only 35A 4IN1 ESC)

Description

• Made of - -, reliable and durable,
• Repair parts, used for accidental damage replacement, making repairs more worry-free,
• Long service life and easy to install.
• Tested in good condition,100% working!

For Mamba F405 / F4 for Aocoda-RC F405 V1.1 Flight Control 35A for BLheli-S 2-6S 4In1 Built-in Current Sensor ESC For RC Model for APEX

Item name: For F405 V1.1 Flight Controller
Input power: 12.6-25V (3-6S)
BEC: 5V/1.5A
For MCU: For STM32F405
For Gyro: For MPU6000
Flash: 16MB
For OSD: AT7456
Mounting hole: 30.5*30.5mm
Weight: 6g
Product Parameters
Name: For Aocoda-RC F4 special flight controller for Jingsu For Huafei
Main control chip: For STM32F405RGT6
MPU: MPU6500
Character overlay: AT7456E
Black box: integrated 16M Flash
Barometer: For BMP280
Serial port: 4 optional
Motor output: 8 channels optional
LED strip: support
Buzzer: support
Input voltage: 3-6S Lipo
Power output: 5V/2A, 9V/2A
Weight: 6.0g
Size: 36x36mm, mounting hole 30.5mm
Firmware: For AOCODAF405
Note: the board is V1.1 Vsersion now.

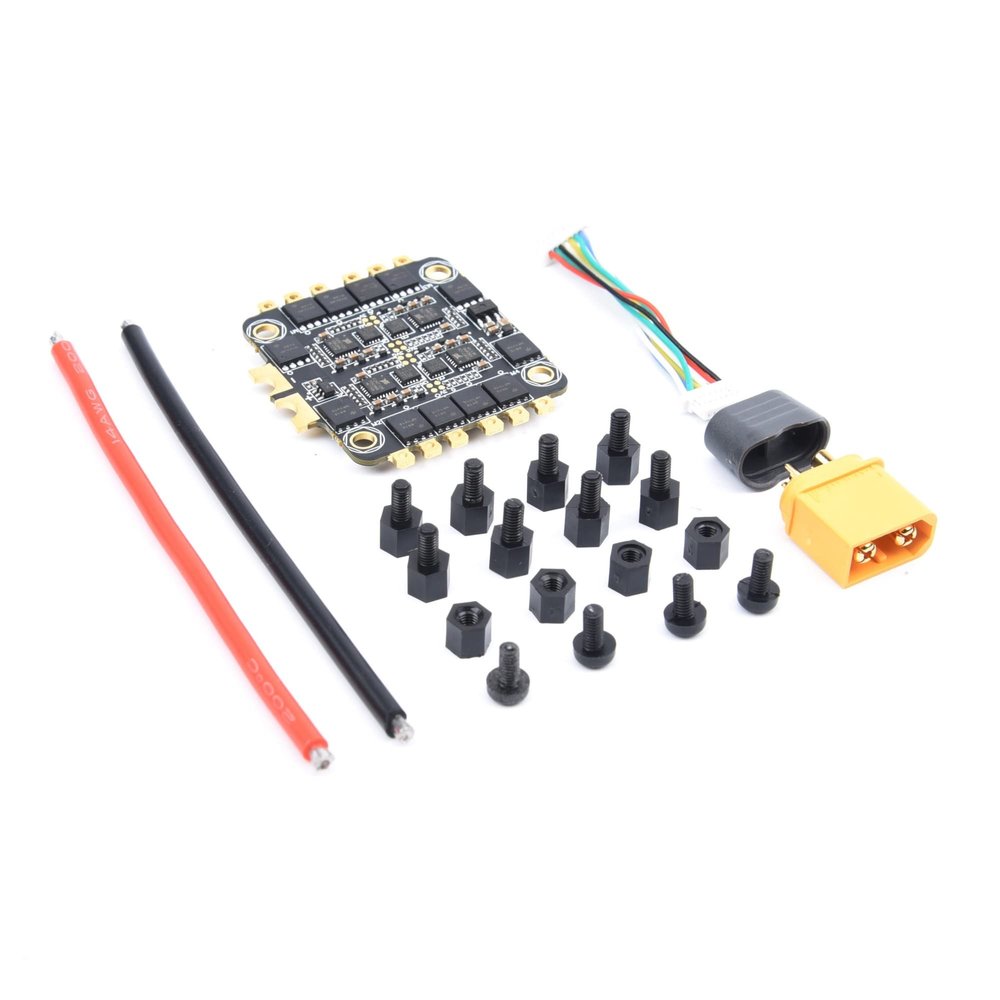

Item Name: 35A For BLheli_S 2-6S 4 in 1 ESC
Model: For REV35
Con. Current: 35A
Peak- Current(10s): 40A
LBEC: NO
SBEC:NO
Lipo: 3-6S
Programming: YES
Weight:13g
Size(PCB): 36x36mm
Hole size: 30.5x30.5mm
Features:
-BB21 MCU, 48Mhz Runs For BLHELI_S J_H_xx firmware
-Supports 3-6S Lipo input
-4PWM input
-Built-in Current sensor
-Only 36x36mm, mount holes 30.5x30.5mm M3
-No External capacitors needed
-For Dshot600 ready(Default) Support For PWM/For ONESHOT/For MULTISHOT/For DSHOT
Item name: F4 V3 PLUS Flight Controller
Firmware:For Omnibus~f4
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
For Drag and For Drop For OSD configured via For Betaflight
For BMI2706 axis For SPI gyro & accelerometer
For SBUS For PPM AND For Spketrum For DSMX ports
For MicroSD card blackbox
For Baro BMP280
5v3a 9V3A BEC
Onboard video filters only 5V to VTX and camera)
Properties:
measured.
Boasting a F4 processor, on-board Betafli
