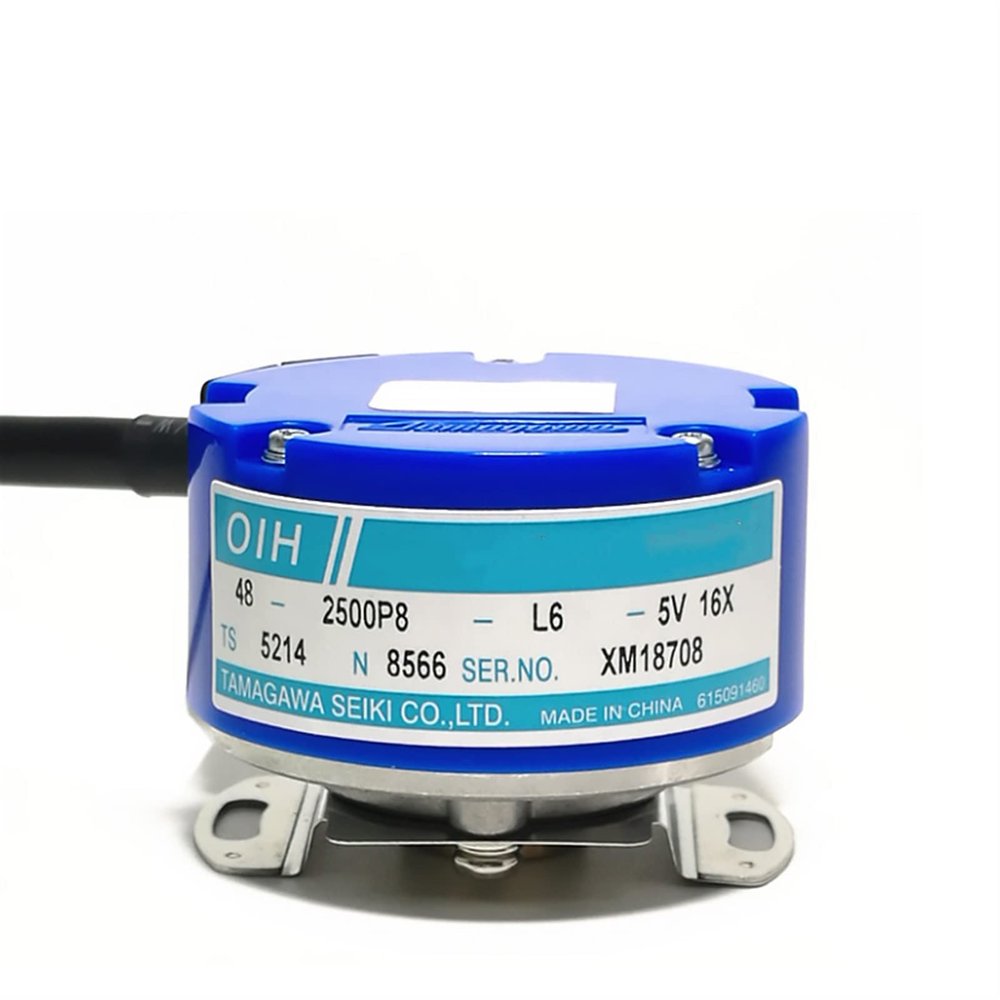

EZZON Servo Motor Encoder New Orginal OIH48-2500P8-L6-5V TS5214N8566 Incremental 2500P/R

Description

• Product model: TS5214N8566 OIH48-2500P8-L6-5V
• Outer diameter: 48mm
• Hole diameter: 9.0-7.5MM (hollow cone shaft)
• Output mode: long-line drive (incremental)
• Pulse: 2500P/R

Product model: TS5214N8566 OIH48-2500P8-L6-5V
Outer diameter: 48mm
Hole diameter: 9.0-7.5MM (hollow cone shaft)
Output mode: long-line drive (incremental)
Working voltage: DC5V
Pulse: 2500P/R
Number of poles: 8 poles
Output phase: A, B, Z, A/, B/, Z/ with U, V, W, U/, V/, W/ Response frequency: 200kHz
Wire length: 0.22M
Temperature range: -20-+85C during operation -25-+85C during storage (no icing)
Protection level: IP40
Wiring instructions: red black blue green yellow blue black green black yellow black mesh
+-A B Z A/ B/ Z/ shield
Brown gray white brown black gray black white black
U V W U/ V/ W/
