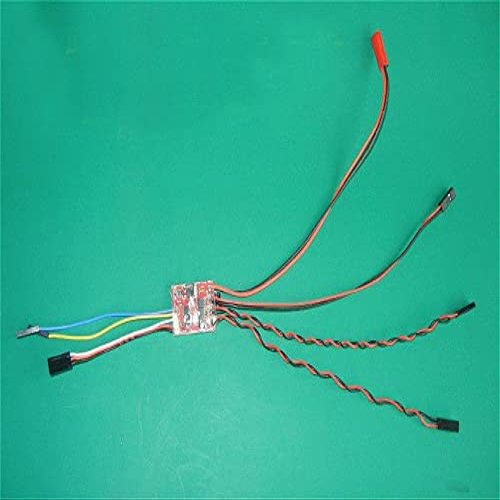

Dual Way 3-Channel 3ch 2s Brushed Esc Excavator Tank 35:1 Dual Mode Speed Controller Bidirectional 6v-10v for Rc Model Parts

Description

• Dual Way 3-channel 3ch 2s Brushed Esc Excavator Tank 35:1 Dual Mode Speed Controller Bidirectional 6v-10v For Rc Model Parts

Bidirectional Dual Way 3-Channel 2S Brushed ESC Excavator Tank 35:1 Dual Mode Speed Controller 6v-10v for RC Model Parts

Specifications:

1 and 2 mixing modes (factory default) (both: throttle/steering mode): 2 or 3 channels (2 channels recommended, 2 channels are automatically returned to the middle) to control the throttle, 1 channel (or 4 channels) to control the speed difference steering The throttle steering passage ratio is 100%, and the throttle is preferred. (mixing control is convenient, so Henglong tank is also mixed control mode)

Independent mode: 1, 2, 3 channels are independently controlled, and the motor output is 100% when the throttle is 100%. Equivalent to three independent ESCs.

Parameter:
Size: 30x25mm
Voltage 6v-10v
1 or 2 single-way long-distance running 1.8A, peak 3.5A
3-way control does not require too much current, so long-distance running 1A, peak 1.5A

Product features:
- The remote control has a fixed midpoint PWM 1500us (+50 -50), a minimum of 1000-1100 and a maximum of 1900-2000.
- Power-on prompt (Connect the battery, the motor will beep)
- Start with the neutral point (Electrical tuning 1 channel is near the neutral point, you will hear the motor beep sounds twice, the ESC starts, the adjustment mix mode, the down adjustment independent mode)
- With out of control protection (missing signal (in the accident, the signal line is broken), the motor stops. For safety, please re-load the battery (for example, if you plug in the signal line, but the throttle is at a high position, you may be beaten)
(Runs below 970us, above 2200us are considered signal loss, ESC lock)
- The ESC has a certain overload and overheat protection (for example, if the motor exceeds the rated current, the output of the superheated motor will stop, but if you suddenly connect the 5A motor, it will burn)

other:

Increased bec, output 5v maximum 1.5A can be co
