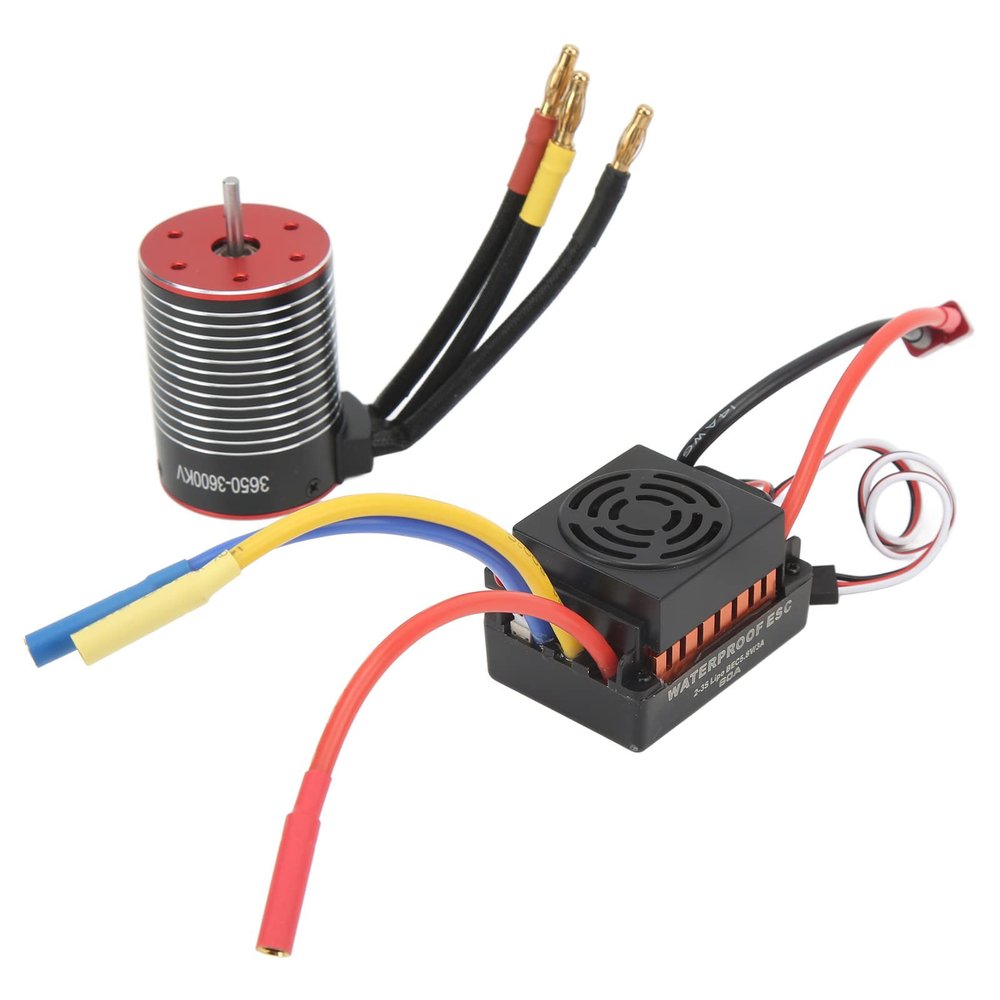

3600KV Brushless Motor 60A ESC Combo, Specially Designed for RC Model car, High Torsion Brushless Motor ESC Set for 1/10 for 1/12 for 1/16 RCBody Parts

Description

• 3600KV Brushless Motor 60A ESC ComboHigh Torsion: 3600KV brushless motor 60A ESC combo adopts 4 pole 12 slot high torsion motor design, fully and suitable for various environments.
• CNC Machining: The 3600KV brushless motor uses CNC machined 6061 billet aluminum heat sinks, highpurity copper windings to maximize efficiency, and high speed ABEC5 oversized bearings.Model car accessories
• Multiple Protections: Brushless motor ESC Set has multiple functions, low voltage cut off , overheat , throttle loss and motor stall .Model Toys
• 60A brushless ESC is compatible with sensorless brushless motor, with plug, and specially designed for RC model car.
• Materials: Brushless motor ESC combo is made of copper, plastic and alloy materials, proportional braking with 4 speed maximum braking force adjustment and 8 speed braking force adjustment.

Specification:

Item Type: 3600KV Brushless Motor 60A ESC Combo
Material: Copper,Plastic,Aluminum Alloy
Color: Black Red
Motor Model: 3650
KV (RPM/Volt): 3600KV
Wattage: 900W
Maximum Speed: 50000
Maximum Voltage: <13V
Maximum Ampere: 69A
IO: 2.0A
: 0.0081
Number of Rotor Poles: 4
Motor Diameter:Approx. 36mm / 1.4in
Motor Length:Approx. 50mm / 2.0in(without Shaft)
Motor Shaft Length:Approx. 15mm / 0.6in
Shaft Diameter:Approx. 3.175mm / 0.13in
Connector: 4.0mm Banana Plug
60A ESC:
Continuous Current: 60A
Maximum Current: 320A
: 0.0007ohm
Battery: 2-3s Cells Lipo
Motor Support: Sensorless Brushless
BEC Output: 5.8V / 3A (Switch Mode)
Product Size:Approx. 50 x 36 x 31mm / 2.0 x 1.4 x 1.2in(without Wire)
Applicable Model: Suitable for 1/10,1/12,1/16 RC Flat Sports Car,Racing Model
of Application: Suitable for Hsp,for Redcat,for Axial Scx10,D90,for Hpi Brand Lamp Installation

Package List:
1 x 3600KV Brushless Motor1 x 60A Brushless ESC
1 x User Manual

Note:
1. Due to manual measurement, please allow 13mm error.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Please remove the cooling fan before using the ESC in water: please clean and dry it as soon as possible after use to prevent the connector from rusting.
