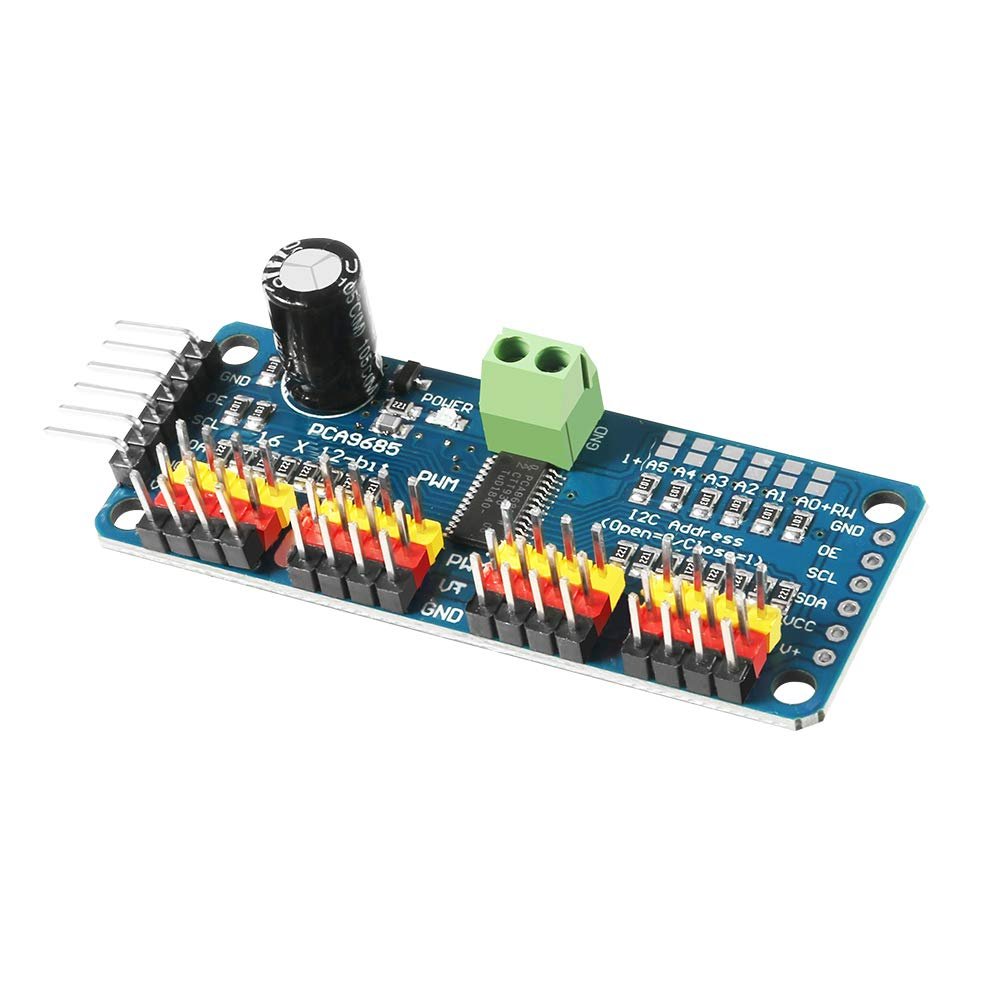

Dorhea PCA9685 16 Channel 12 Bit PWM Servo Driver Board IIC Interface PCA9685 Module Controller Compatible with Raspberry Pi

Description

• PCA9685 contain an I2C-controlled PWM driver with a built-in clock.
• 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs.
• Support using only two pins to control 16 free-running PWM outputs .
• 3 pin connectors in groups of 4, so you can plug in 16 servos at one time .
• 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate.

The PCA9685 chip is wrapped in the center of the board
Power input terminal
Voltage: DC5-10V power supply
Communication Interface: IIC
Green power indicator
16-way steering gear control
In the 4 groups of 3-pin connector to facilitate the insertion of 16 servo motor (servo motor plug slightly wider than 0.1 """")
The polarity of the reverse polarity is input on the terminal block

Cascade design:
V + line to place a large capacitor, the maximum external input voltage depends on the 10V 1000uf capacitor
All PWM output lines have a 220 ohm series resistor protection and can easily drive LED

Package includes:
1 X PCA9685 16 channel 12 bit PWM servo driver
