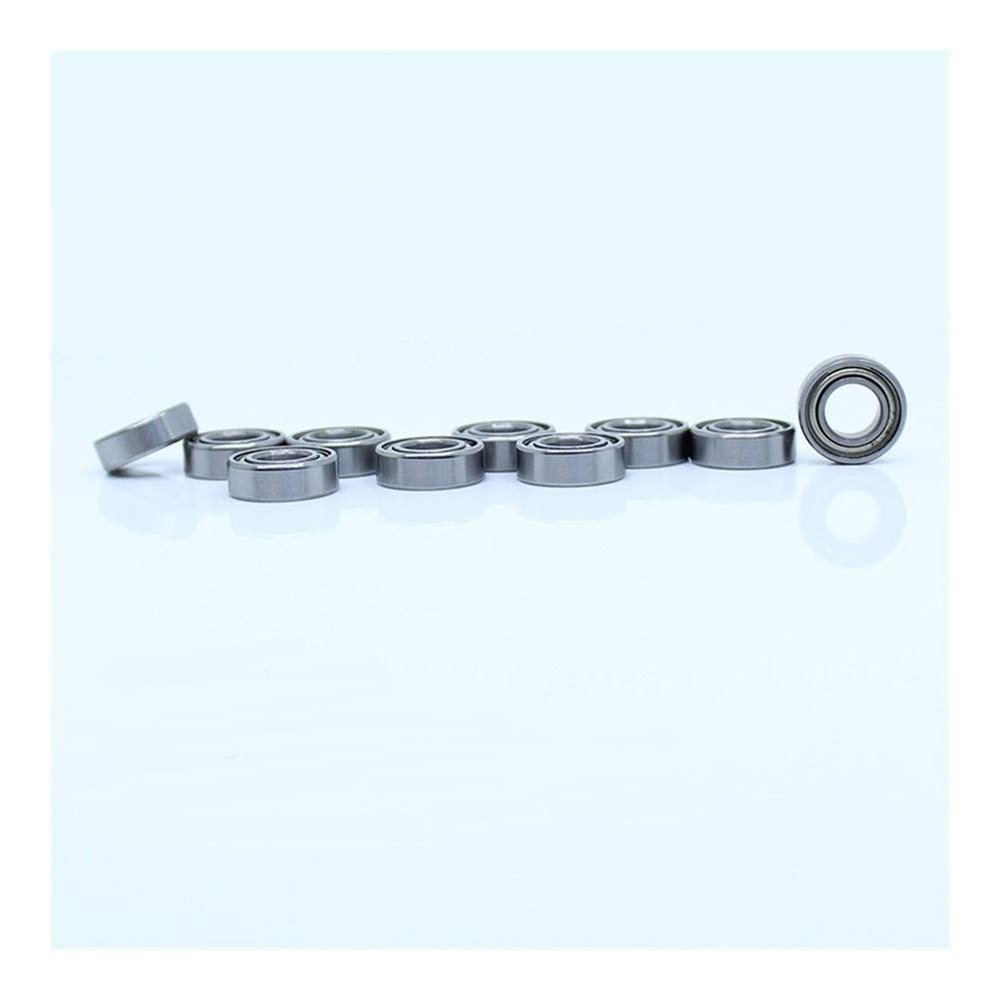

DINGGUANGHE-CUP Power Transmission Products R166ZZ ABEC-1 Bearing (10PCS) 3/16" x3/8" x1/8" inch Miniature R166 ZZ Ball Bearings for RC Model Parts Ball Bearings

Description

• Model Number: R166ZZ
• Torque Capacity: 3/16"x3/8"x1/8"
• Surface Roughness: Ra 0.05
• Material: Chrome Steel/GCr15; Coatings: Chrome Steel/GCr15
• Structure: Ball bearing

Miniature Bearing Types & Features

Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can also be classified as "Open", "Shielded", or "Sealed" depending on the existence and type of seal or shield. Deep groove ball bearings have two inherent advantages;
they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.

TECHNICAL SPECS

Model: R166ZZ
Metric:
Inner (d): 4.762 mm
Outer (D): 9.525 mm
Width (B): 3.175 mm
Inch:
Inner (d): 3/16 = 0.1875 inch
Outer (D): 3/8 = 0.375 inch
Width (B): 1/8 = 0.125 inch
Grade: ABEC-1
Material: 52100 Chrome Steel
Seal: Shield
Qty: 1 Lot = 10 Pcs
