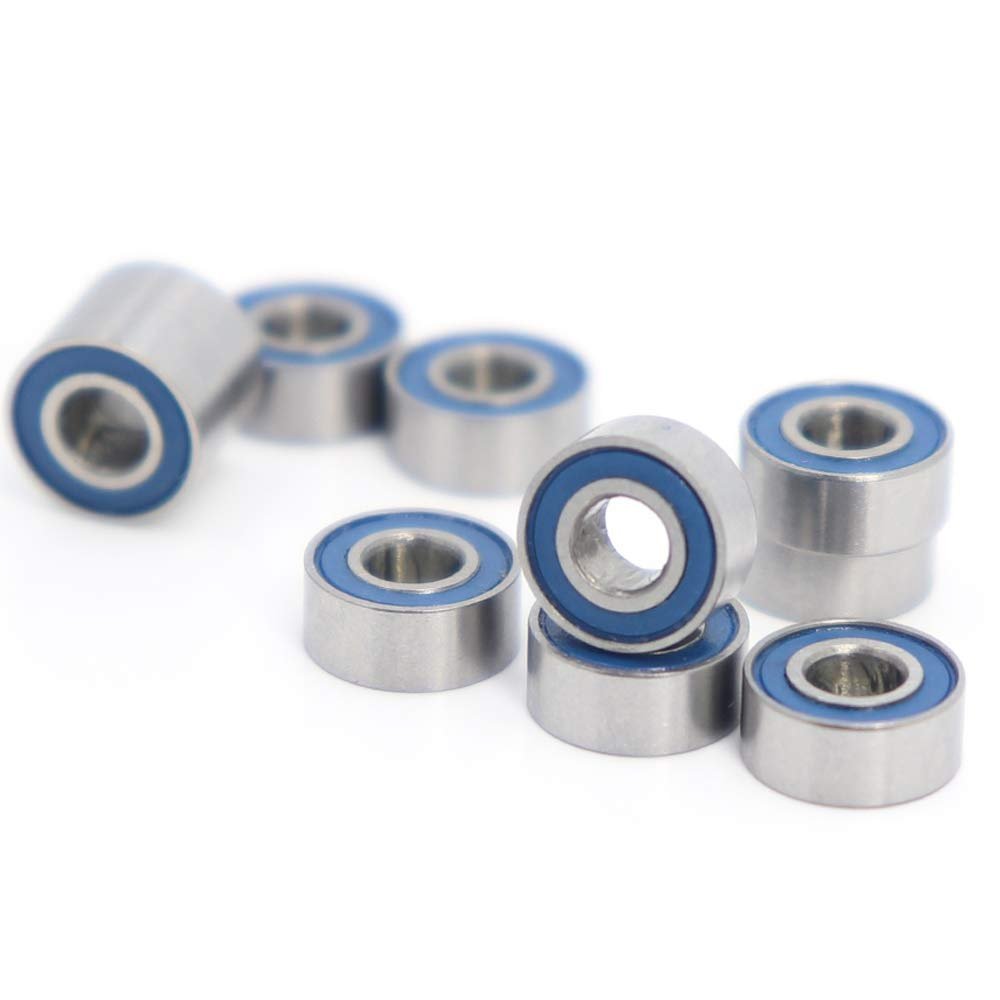

DINGGUANGHE-CUP Power Transmission Products 683RS 683-2RS Color Bearing ABEC-3 (10PCS) 3 * 7 * 3 mm Miniature Ball Bearings with Blue Sealed 618/3 RS 683 2RS Ball Bearings

Description

• Model: 683RS
• Inner (d): 3 mm; Outer (D): 7 mm; Width (B): 3 mm
• Weight (g): 0.48; Grade: ABEC-3
• Material: 52100 Chrome Steel
• Seal: 2 Sealed; Qty: 1 Lot = 10 Pcs

R/C Color Bearing Series

After more heavy day of bashing, racing, crawling, or whatever kind of driving you like,
It's important to update your bearings to prepare for your next session!
This is the RC racing bearing series,
More colorful colors,
More reasonable structure,
To give you a better update experience for RC cars.

Model Number: 683-2RS
Torque Capacity: 3*7*3 MM
Surface Roughness: Ra 0.05
Structure: Deep Groove Ball
Material: 52100 Chrome Steel
Coatings: Antirust oil
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Sealed
Part Number: 683 2RS
For Shaft Diameter: 3mm
Bore Dia (d): 3mm
Bore Dia Tolerance: -0.008mm to 0
For Housing ID: 7mm
Outer Dia (D): 7mm
Outer Dia Tolerance: -0.008mm to 0
Width (B): 3mm
Width Tolerance: -0.12mm to 0
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: 300 Series Stainless Steel
Shield Material: 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons): 164
Static Load Rating (Cor) (Newtons): 80
Max Speed (Grease) (X1000 RPM): 33
Max Speed (Oil) (X1000 RPM): 38
Lubrication: grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 120
ABEC Rating: ABEC-1
Radial Clearance Trade No.: C0
Radial Clearance: 0.002mm to 0.013mm
Ball Qty: 8
Ball Dia: 1.0000mm
Weight (grams): 0.48

BEARINGS FEATURE

RC Ball bearings should always be your first upgrades, it reduces friction for less rolling resistance, and that means higher speed and longer the running times. RC Ball bearings hardly require maintenance and last a lot longer than stock bushings.

Yeah Racing RC Ball Bearings have the lowest resistance.
They are manufactured by 52100 chrome steel. Pre-lubricated with light protection oil (not grease) to ensure its excellent performance!

These high quality
