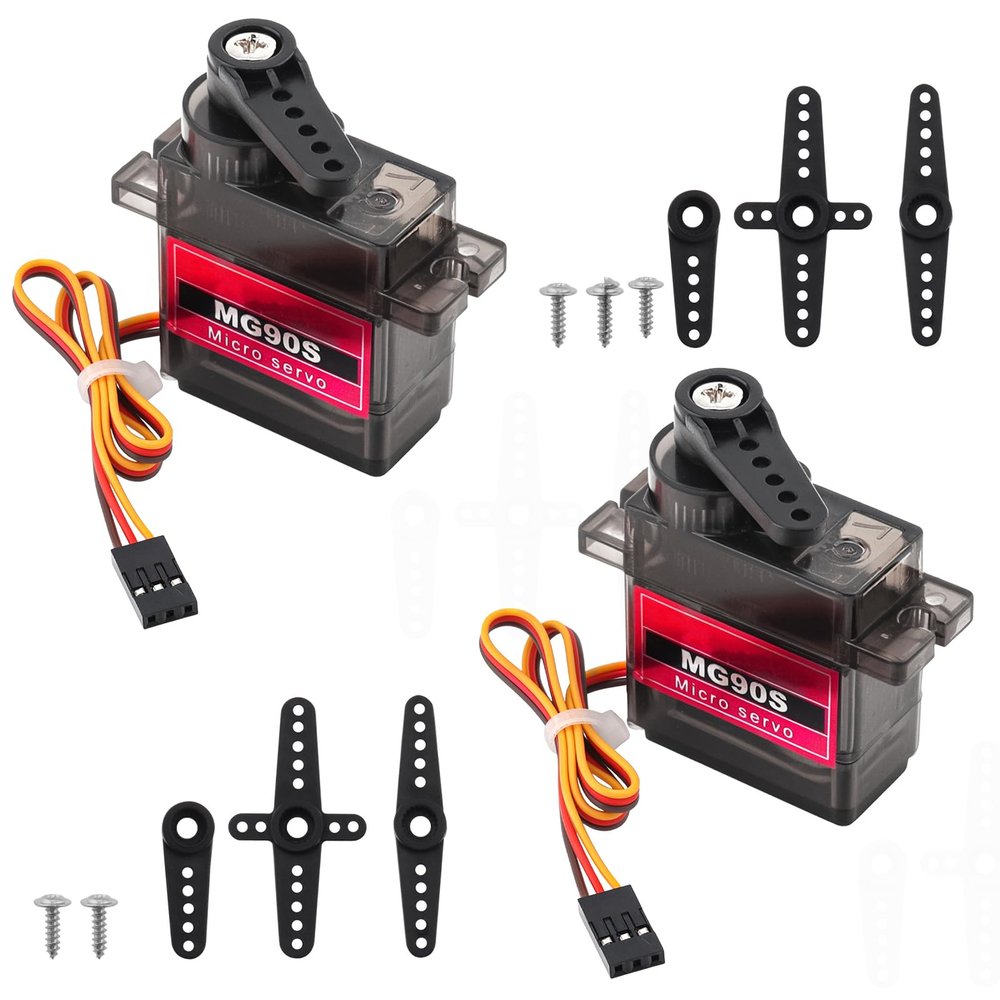

DiGiYes 2Pack MG90S Micro Servo Motor Metal Geared 9G for Helicopter Airplane Boat Smart Robot Car Controls (1, Control Angle 180 Degree)

Description

• Sturdy Metal Gear: The MG90S micro servo motor uses robust all metal gears and a hollow cup motor to ensure stronger load-bearing capacity and durability, significantly reducing the risk of gear teeth stripping during stall conditions or accidental collisions, providing long-lasting performance and reliability for the mini servo motor
• High Torque and Speed: Achieve precise movements with 2.0kg torque and 0.11s response time at a 4.8V, the micro servo motor is well matched for demanding RC models
• 180 Rotation Angle: This is a standard positional servo. Its output shaft can achieve precise angular positioning within an approximately 180 degree range (typically from 0 to 180). This represents the most common running mode and is suitable for the vast majority of applications requiring controlled angular movement rather than continuous rotation
• Strong Controllability: You can use any servo code, hardware or library to control these servo. Suit for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places
• Widely Used: Tiny and lightweight with high output power, this tiny MG90S servo is for rc airplane, swash plate, helicopter, quadcopter or robot

Parameter Information:
Product Name: Metal Gear Micro Servos
Product Model: MG90S
Product Size: 22.8x12.2x28.5mm
Product Weight: 13.6g
Operating Torque: 2.2KG/cm
Response Speed: 0.11s/60 Degree
Working Voltage: 4.8V
Dead Band Width: 5 microseconds
Operating Temperature: 0 to 55 Degree Celsius
Interface Type: JR / FUTABA General
Structural Material: Copper metal teeth, coreless motor, double ball bearing Accessories: Multi-arm, 30cm wire, fixing screws.
Application Range: 450 E-sky, swash plate servo, fixed wing, helicopters KT, fluttering, gliding, small robots, and other models of Mini Car, Mini Ship, Helicopter and Airplane.

Wiring:
Dark Gray: GND
Red: VCC 4.8-7.2V
Orange: Pulse Input

Package Include:
2x MG90S Metal Gear Mini Micro Servo
