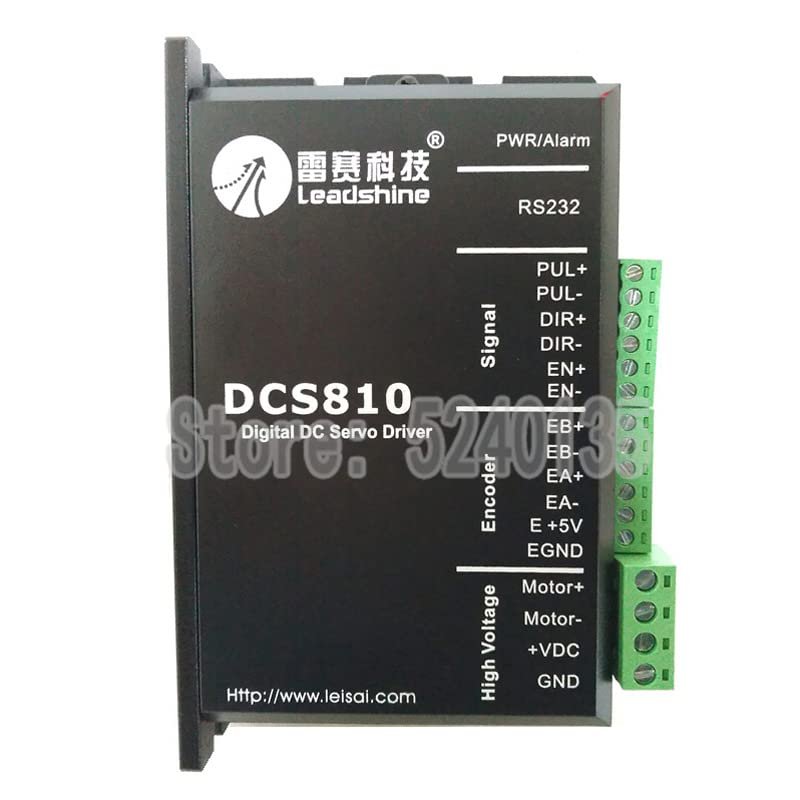

Davitu Motor Driver - Original Leadshine DC servo drives DCS810 work 24-80 VDC out 1A to 20A fit for DCM50207/DCM50205 DC Brush servo motor

Description

• 18-80VDC, 0-20A, 20-400W.
• Based on DSP control technology and high smooth servo control algorithm.
• Parameter visible tuning tools, including Pro Tuner and STU.
• Position Following error lock range adjustable
• Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%

Features:
18-80VDC, 0-20A, 20-400W.
Based on DSP control technology and high smooth servo control algorithm.
Parameter visible tuning tools, including Pro Tuner and STU.
Position Following error lock range adjustable
Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%
Electronic gear ratio from 1/255 to 255
Built-in motion controller for self-test with trapezoidal velocity profile
Support PUL/DIR and CW/CCW control signals
Opto-isolated inputs, support single-ended and differential signals
10 latest errors self-record function
Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections
Small size, surface-mount technology
Introduction :
The DCS810 is very easy to tune and all parameters are visible. Parameter visible tuning tools, including Pro Tuner (Windows based setup software) and STU (Small servo tuning unit) can meet different tuning environments or requirements.
Specifications:
General
Parameters
DCS303
Min.
Typical
Max.
Unit
Peak output current
0
20
A
Supply voltage
+18
+24
+80
VDC
Logic signal current
7
10
15
mA
Pulse input frequency
0
500
kHz
Isolation resistance
500
Mohm
Current provided to encoder
50
mA
Item specifics:
Motor type: DC Motor
Power supply: DC
