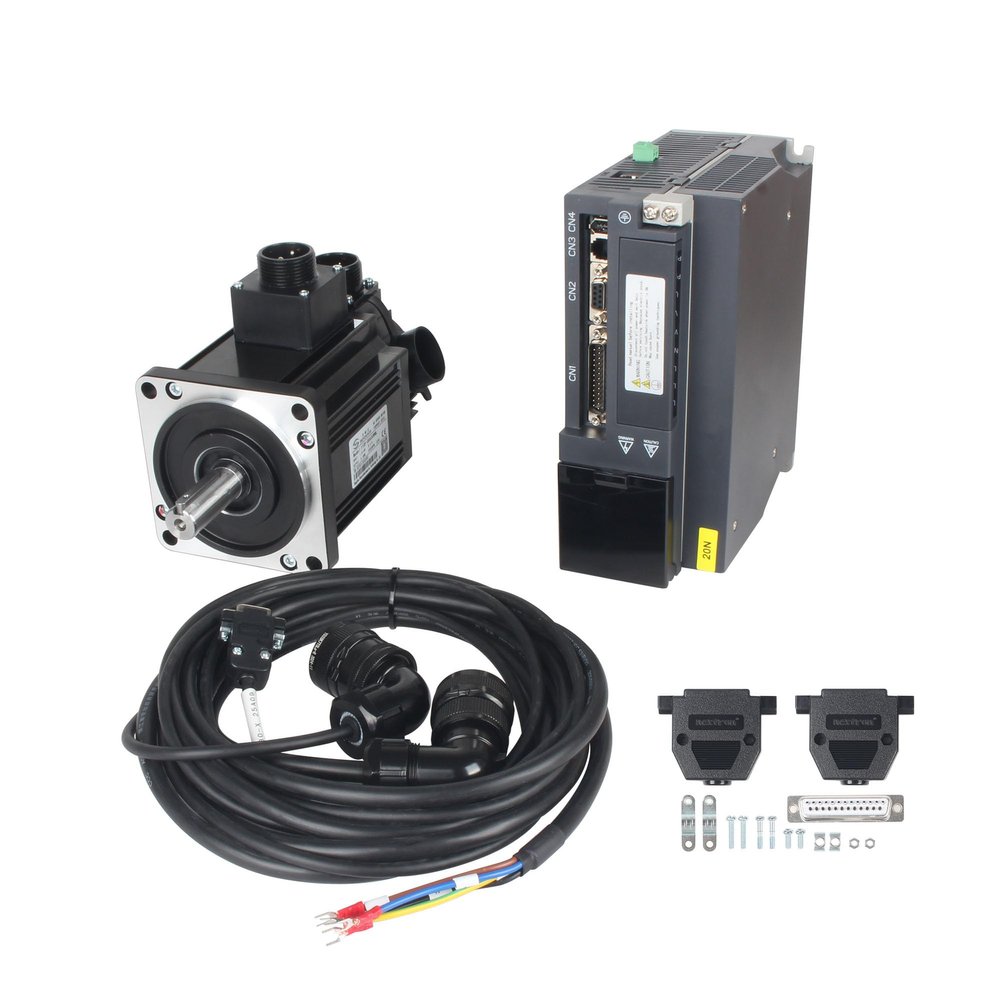

CNCTOPBAOS 1800W 1.8KW 220V AC Servo Motor with Driver Controller Kit, 23-Bit Optical Encoder, 3000-4000rpm 5.4-16.2N.m 110mm Flange 19mm Shaft, Support Jog/Position/Speed/Torque Control RS485 MODBUS
286 438 Ft
477 397 Ft
-
Order within 14 hours and 12 minutes to get between June 9 - June 15 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Motor Parameters:Model 110F-D0630WML; Power: 1800W; Poles: 5 pairs; Voltage: 220V; Rated speed: 3000r/min; Peak speed: 4000r/min ;Rated torque: 5.4N.m; Instantaneous max torque: 16.2N.m; Rated current: 8.4A; Insulation class: F; Waterproof grade: IP65; Net weight: 5.6kg/12.34 LB; Flange: 110x110mm; Motor Shaft: 19mm
- Driver parameters: Model SDF20NK5X1; Max current: 18A; Voltage: AC170-253V; Operates with a single-phase or three-phase AC 220V power supply, and the L and N terminals are for the 220V power supply; Cooling method: Heat dissipation air cooling; Control mode: SVPWM; Operating temperature: 0-55; Storage temperature:-20-80; Protection level: IP54; Comes with a six of seven-segment display LED and four function keys for display and operation
- 23-bit Encoder: Matching with 23 bit multi turn absolute value optical encoder, 5 pairs of poles, ensuring high positioning accuracy, allowing for fine position control and meeting the demands of high-precision motion control scenarios; A variety of intelligent monitoring functions and operation panels are convenient for users to debug and diagnose
- Multi-functional Control Modes: Has built-in braking function and multiple protection functions such as under-voltage, over-voltage, overload, over-current, encoder exception, and position error; Supports various control modes including position control, speed control, torque control, jog operation, and RS485 communication
- More Functions: Supports saving, reading, backing up, and restoring parameters; 137 adjustable parameters covering control modes, gains, I/O definitions, communication, etc; Customizable input/output ports: 7 input points definable as 23 functions and 4 output points; Internal PLC function: Eliminates the need for external PLC in simple control scenarios; Compatible with debugging software for parameter configuration and monitoring
