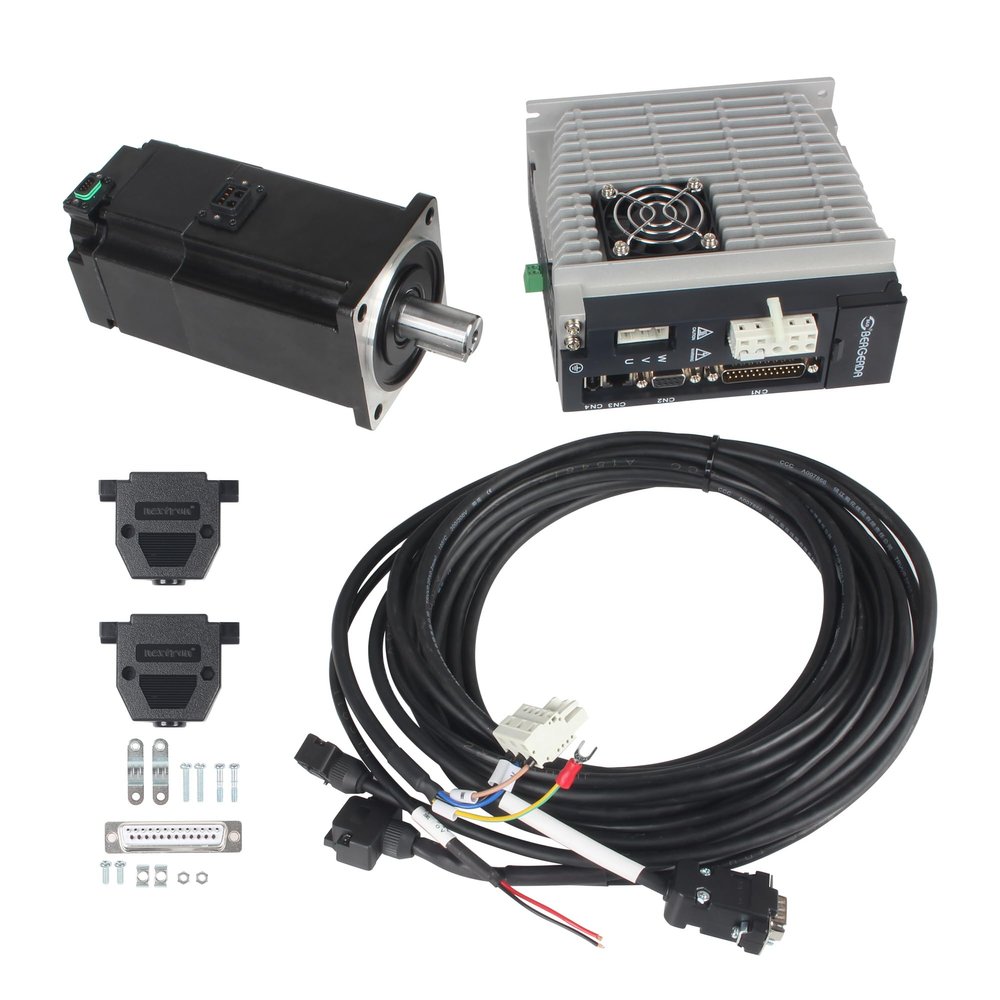

CNCTOPBAOS 1KW 1000W AC Servo Motor Kit with Brake, 80mm Flange 19mm Shaft 3000-6000RPM 3.2-9.6N.m, 23-Bit Optical Encoder, 220V AC Servo CNC Controller Support RS485/Jog/Position/Speed/Torque Control
330 272 Ft
550 453 Ft
-
Order within 14 hours and 12 minutes to get between June 9 - June 15 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Motor Parameters:Model 80F-B0330WML-Z; Brake: With brake; Power: 1000W; Poles: 5 pairs; Voltage: 220V; Rated speed: 3000r/min; Peak speed:6000r/min ;Rated torque: 3.2N.m; Instantaneous max torque:9.6N.m; Rated current: 5.5A; Insulation class: F; Waterproof grade: IP65; Net weight: 3.44kg/7.6LB; Flange: 80x80mm; Motor Shaft: 19mm
- Driver parameters: Model SDF08NK8X1; Max current: 10.5A; Voltage: AC170-253V; Operates with a single-phase or three-phase AC 220V power supply, and the L and N terminals are for the 220V power supply; Cooling method: Heat dissipation air cooling; Control mode: SVPWM; Operating temperature: 0-55; Storage temperature:-20-80; Protection level: IP54; Comes with a six of seven-segment display LED and four function keys for display and operation
- 23-bit Encoder: Matching with 23 bit multi turn absolute value optical encoder, 5 pairs of poles, ensuring high positioning accuracy, allowing for fine position control and meeting the demands of high-precision motion control scenarios; A variety of intelligent monitoring functions and operation panels are convenient for users to debug and diagnose
- Multi-functional Control Modes: Has built-in braking function and multiple protection functions such as under-voltage, over-voltage, overload, over-current, encoder exception, and position error; Supports various control modes including position control, speed control, torque control, jog operation, and RS485 communication
- More Functions: Supports saving, reading, backing up, and restoring parameters; 137 adjustable parameters covering control modes, gains, I/O definitions, communication, etc; Customizable input/output ports: 7 input points definable as 23 functions and 4 output points; Internal PLC function: Eliminates the need for external PLC in simple control scenarios; Compatible with debugging software for parameter configuration and monitoring
