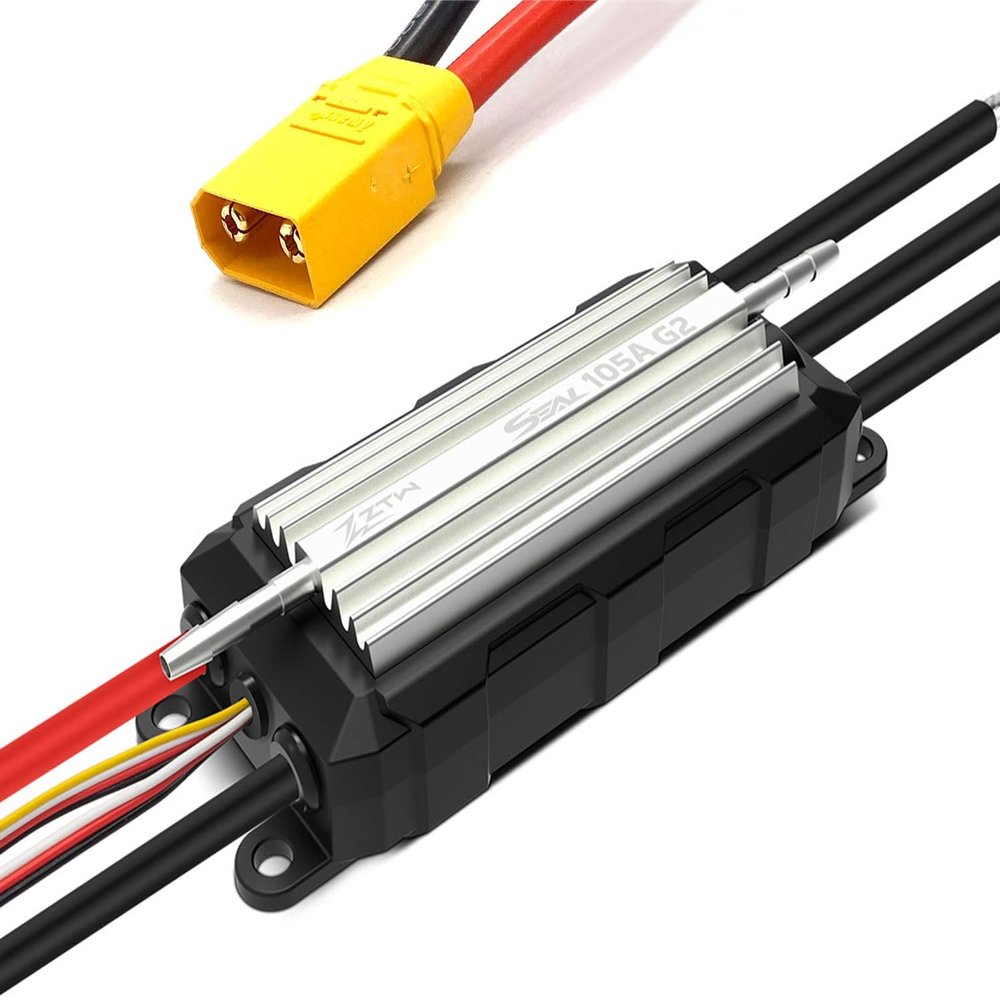

captainrc ZTW Brushless ESC, 105A 3-8S with XT90 Plug, bi-Directional Control, Waterproof IP67, for Model Boats RC Boats Surfboards hydrofoils

Description

• G2 high-voltage ESC series adopts a new generation of MOSFET process, which has low heat generation, can withstand large current instantly and has high reliability. Adopting high-performance 32-bit microprocessor, the working frequency is up to 170MHz, which makes the ESC more capable of operation and faster.
• Adopting waterproof design (protection class IP 67), it can work in humid environment, and equipped with metal water cooling heat sink to ensure efficient heat dissipation. Ultra-smooth startup and precise throttle linearity make this ESC suitable for a variety of applications, such as all kinds of RC boat models, electric surfboards and other underwater applications.
• The ESC has two modes of operation: "Forward Only" and "Forward and Reverse". The ESC has an idle function, which makes the ESC have higher driving efficiency and more energy saving. Supports high speed motors, compatible with most motors in the market.
• Multiple protections: start-up protection, overheating protection, low voltage cut-off protection, signal loss protection, phase loss protection, overcurrent protection, abnormal power-on voltage protection, overload protection.
• Supports programming via cell phone App or LCD program card, simpler and more convenient operation (additional ZTW App adapter or LCD program box G2 is required); Supports data communication with Futaba remote control (S.BUS2 protocol) (only 130A HV, 160A HV, 300A HV 6-14S ESCs have this function); Supports CAN protocol; Supports data return Support CAN protocol; Support data return function, which can send data in real time: current, voltage, temperature, speed, throttle and ESC status.

Burst Current (A): 105 Amps
Voltage: 3-8S Lithium Battery
BEC Output 6V/7.4V/8.4V 8A
Power Cord 12 Gauge 80mm-Red/80mm-Black
Motor Cord: 12 gauge 65 mm-Black
Throttle can be used in forward and reverse, or the reverse function can be locked for racing safety.
Programmable with LCD Programming Card G2.
Case Dimensions (wires not included)
Length: 88 mm
Width: 38 mm
Height: 24 mm
Weight: 110 grams
