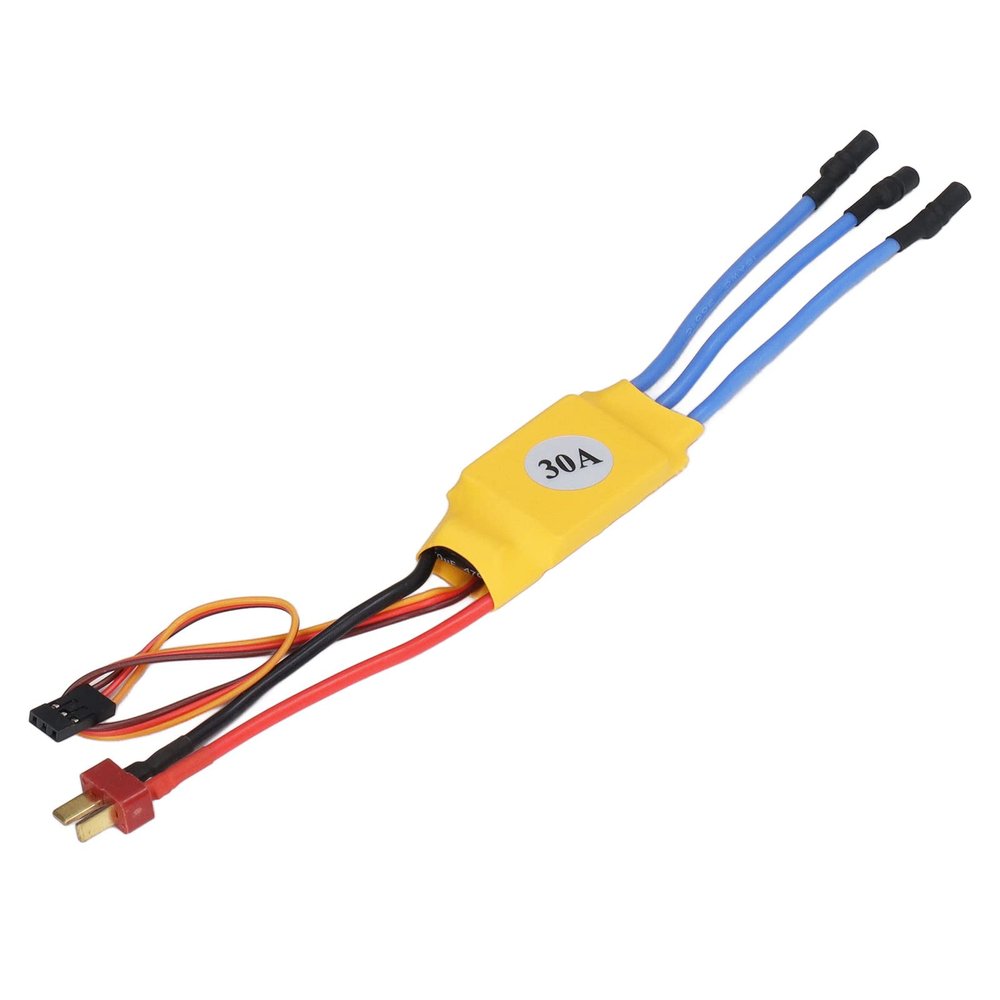

Brushless Motor ESC 30A 300000RPM High Speed Multi-Protection Auto Throttle Brushless Electronic Speed Controller for 2 Pole Internal Rotation Motor

Description

• Brushless Motor ESC: This electric speed controller is used for brushless motor, with continuous current of 30A, momentary current of 35A, 40A for 10 seconds.
• Upper Speed Limit: The speed is up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole external rotation, and 42,000rpm for 14 pole external rotation.
• Wide Applications: Widely used in machinery industry, automobile industry, construction industry, railway, electronics industry, power plants, etc.
• Stable and The ESC uses BEC, MCU separates the power supply, and the work is more stable. With multi protections, safer and more
• PWM Control: The ESC is controlled by 8KHz PWM, using the speed control curve, auto throttle adaptation, suitable for more remote control devices.

Specification:
Item Type: Brushless Motor ESC
Material: PCB
Basic Parameters:
Voltage Range: 4-16V
Number of Batteries: 4-12NIMH
2-3LIPO (4LIPO does not allow BEC output)
BEC Output:
Continuous 2A (momentary 3A)
2LIPO 4-5 Micro Servo
3LIPO 3-4 Micro Servo

How to Use:
1. Extreme Use:
Continuous current 30A, momentary 35A, 40A for 10 seconds.
2. Protective Function:
Automatically select 23LIPO, the voltage is 6V and 9V;
Automatic select NIMH, the voltage of each section is 0.8V;
Safe start, if the accelerator position is not correct, it is forbidden to start;
Temperature protection, stop when 110 appearance temperature; Out of control protection, stop after 1 second without .
3. Performance Description:
Upper Speed Limit: Up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole external rotation, and 42,000rpm for 14 pole external rotation.
8KHz PWM control, use speed control curve.
Auto throttle adaptation, suitable for more remote control devices.
Using BEC, MCU separates the power supply, the work is more stable.

Package List:
1 xBrushless Motor ESC
