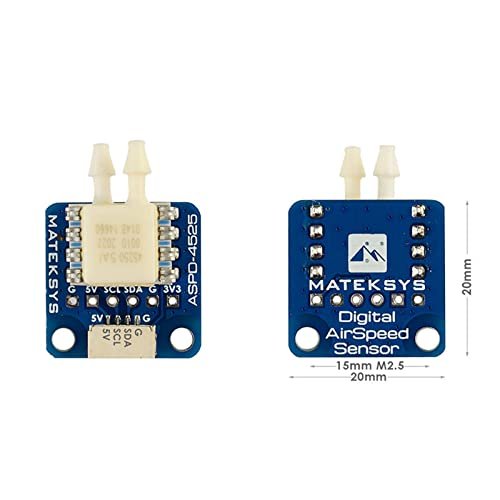

ASPD-4525 Digital Airspeed Sensor for F405-WING F411-WING F722-Wing Flight Controllers RC Airplane Drones DIY Parts

Description

• ASPD-4525 DIGITAL AIRSPEED SENSOR for F405-WING F411-WING F722-Wing Flight Controllers RC Airplane Drones DIY Parts

Specifications
Board Supply voltage: 4~6V DC
Sensor: MS4525DO
Working current: 5mA
Output: I2C (SCL & SDA)
Pressure Ranges: 1 PSI (6.89kPa)
Maximum Pressure: 20 PSI (137.9kPa)
Operating Temperature: -40C ~ 125C
Accuracy: 0.25% SPAN
Red LED: power indicator
JST-GH sequence: 5V, SCL, SDA, GND
Weight: 3.5g (sensor board)
Including
1x ASPD-4525 Sensor Board.
1x JST-GH-4P to JST-GH-4P 20cm silicon wire
Pitot Tube.
Clear silicon tubing 40cm
Wiring
5V to FC 4~6V
SCL to FC I2C_SCL
SDA to FC I2C_SDA
G to FC GND
