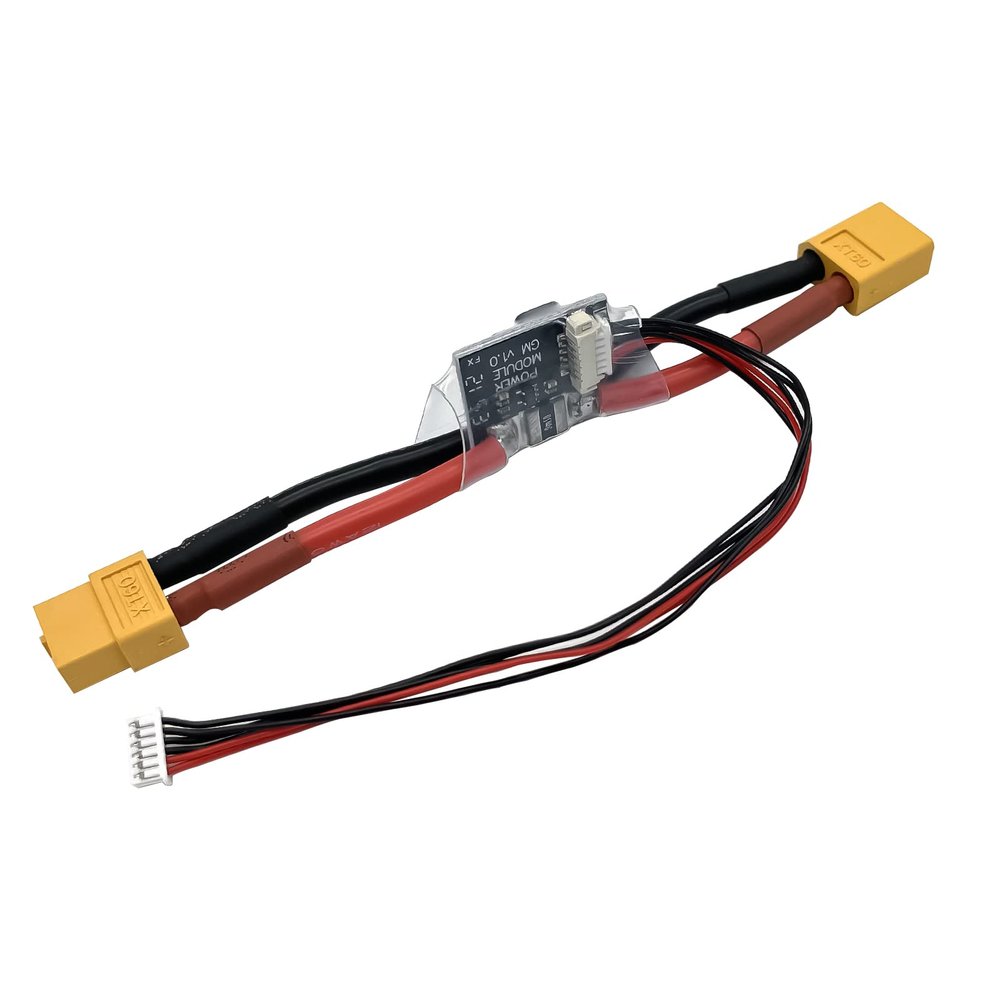

APM 2.5 2.6 2.8 for Pixhawk Power Module 30V 90A with 5.3V DC BEC with T XT60 Plug for RC Drone Helicopter Part Quadcopters Accessories (XT60)

Description

• Input voltage: 6 ~ 30V (2 ~ 8S),Output voltage: 5.3V 0.1V,Maximum output current: 3A
• Used up to 8S LiPo and at a maximum of 90A.Maximum current: 90A. Maximum voltage: 30V
• 6P cable can be directly connected for APM/Pixhawk flight control. Additional 4P rows of pin-free to wire/PIN connection to control another flight
• Voltage and current measurement configured for 5V ADC.
• designed to power servos. Use your aircraft's own ESC/BEC for that.
• Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.
• Notice:Many buyer burned this cable when connet it to 6S battery because he solder the cable to our this module cable.please don't connect or solder any other cable on this current cable,otherwise it will be burned Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable.

Specifications:
Max input voltage: 30V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
For APM 2.8 PIX PIXHAWK

Support 6S battery
Package including :
1 * APM Power Module XT60 / T Plug
