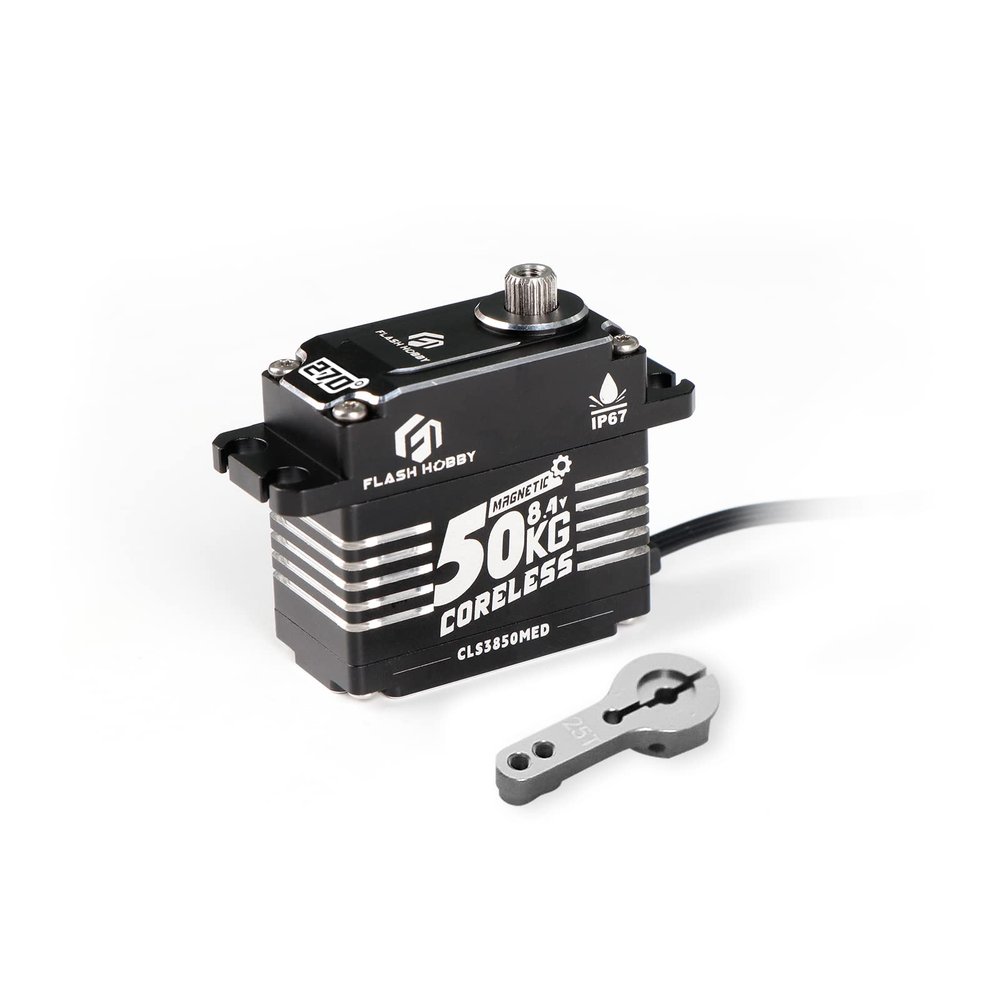

50KG Coreless Servo 8.4V High Torque Servo, Full Metal Gear Servo with IP67 Waterproof & Magnetic Support Sanwa SSR/NB4/Futaba for 1/8 1/10 Scale RC Crawler Cars, Trucks & Robotic Parts(270)

Description

• [High Torque Servo & Waterproof] The maximum torque of RC crawler servo is up to 50kg/cm at 8.4V and the speed can be up to 0.11sec/135. Design with IP67 waterproof, which can let your car plays in a humid environment or rainy day
• [Programmable] This coreless servo can be programmable to change the speed, torque, angle, direction, end point adjustments, neutral position and so on (Programmer Not Included)
• [High Quality & High Precision] Equipped with metal gear, and good CNC AL6061 aluminum heat sink shell, makes RC servo has advanced linearity and accuracy, which is more stable, low noise and long life
• [Widely Application] Support Sanwa SSR/NB4/Futaba modes, voltage 6~8.4V, which is suitable for 1/8 1/10 scale RC crawlers, RC cars, trucks, rollers, boats, airplane, fixed-wings, robotic parts and so on. Ideal to satisfy your various needs
• [Size & Package] The size of 50KG RC servo is 1.57 x 0.79 x 1.49in(40 x 20 x 38mm), weighs 2.8oz(80g). Package include one coreless servo, 25T servo horn and a set of accessories

Specification:
Control System: PWM Control (1500usec in the central point)
Operation Voltage Range: DC6.0~8.4V
Operation Temperature Range: -20C~ +70C
Pulse Width: 500 to 2500 usec
Circle: one million times without load
Operation Travel: 270 5
Programmable Angle: YES
Direction: CW
Diver type: Mos Drive
Motor Type: Coreless
Angle Sensor: 14Bit Magnetic Encoder
Single Type: Digital Control
Soft Start Function: Included
Mode Compatible: Sanwa SSR, NB4, Futaba
Waterproof Level: IP67
Ball Bearing: 2BB
Case Material: Full Aluminum CNC
Connector Wire Length: 22AWG 260mm JR
Wire Info(Black): Negative
Wire Info(Black): Positive
Wire Info(White): S Single
Dimension: 40x20x38mm
Weight: 80g

38kg Servo Torque/Speed:
29kg-cm, 0.12sec/135 at 6.0V;
34kg-cm, 0.10sec/135 at 7.4V;
38kg-cm, 0.09sec/135 at 8.4V

50kg Servo Torque/Speed:
38kg-cm, 0.15sec/135 at 6.0V;
45kg-cm, 0.12sec/135 at 7.4V;
50kg-cm, 0.11sec/135 at 8.4V

60kg Servo Torque/Speed:
48kg-cm, 0.18sec/135 at 6.0V;
56kg-cm, 0.16sec/135 at 7.4V;
60kg-cm, 0.14sec/135 at 8.4V

Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset
