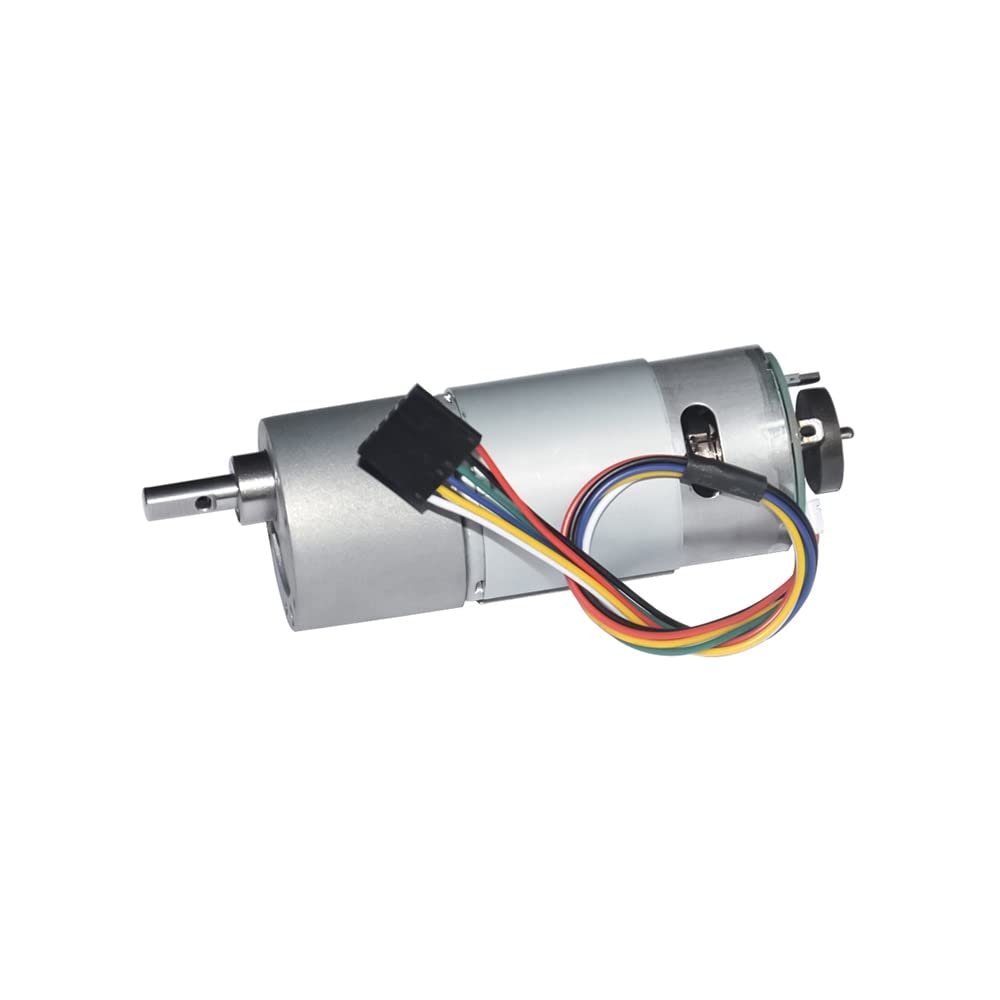

37GB555H DC Geared Motor with Hall Encoder 12V 24V 10~900rpm Speed Optional Dia 37mm Output Shaft 6mm for DIY Engine Robot - (Speed(RPM): 280rpm, Voltage(V): 24V)

Description

• Speed(RPM): 280rpm, Voltage(V): 24V
• Torque: 1.5~28.9kg.cm
• Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance,DIY Hobby
• Model number: 37GB555H
• Output power: 24~36W

37GB555H DC Geared Motor with Hall Encoder 12V 24V 10~900rpm
Speed Optional Dia 37mm Output Shaft 6mm for DIY Engine Robot
Product Imfotmation:
1. The rear of the motor is equipped with a dual channel Holzer effect encoder, AB dual output, single circuit per cycle pulse 12PPR, double down the road, a total output of 48CPR. Phase difference 90 degrees.
2. The two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 48counts per revolution of the motor shaft. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48.
Sweet Tips:
1.Be sure to keep the wiring connection correct before Working.
2.Be sure to keep the motor stopped before change the CCW/CW direction. Or the motor will be burned.
Item specifics:
Torque: 1.5~28.9kg.cm
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance,DIY Hobby
Model number: 37GB555H
Output power: 24~36W
Continuous current(a): 1.2~2.5A
Protect feature: Drip-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 2
Type: Gear Motor
Certification: ce
Origin: Mainland China
Item type: Gear Motor
Motor voltage: 12V 24V
Motor speed: 10-900RPM
: Support
Product feature: High Quality Gear Motor
Characteristic: New Motor
Product function: With Encoder
Motor weight: 400g
Motor origin of production: Mainland China GuangDong Province
Customized: Yes
