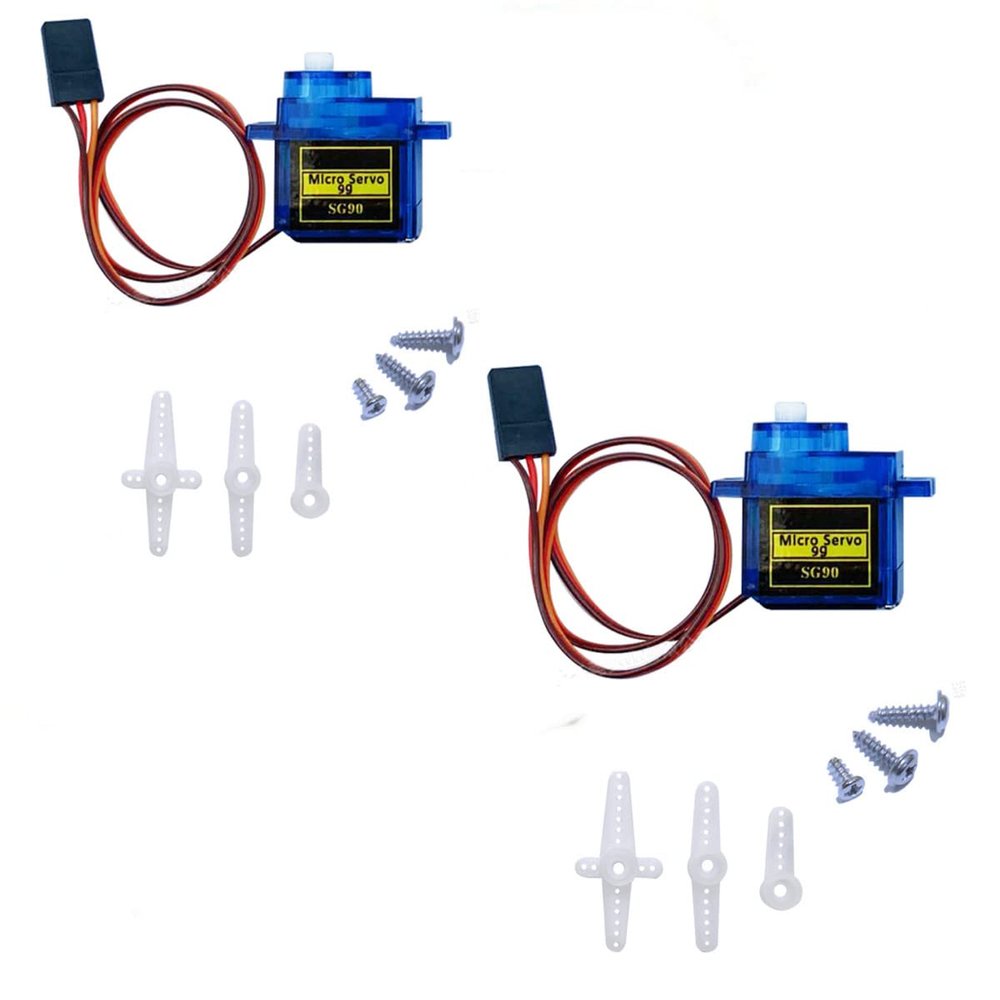

2PCS SG90 Servo Motor Micro Servo 9G Servo Motor for RC Robot Arm Helicopter Airplane Remote Control (2X)

Description

• SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kind of R/C Toys and also make electronics DIY based on compatible for Arduino ,Raspberry Pi
• The SG90 mini servo motor is lightweight, high-quality and lightning-fast.The servo is designed to work with almost all the radio control systems.
• SG90 Micro Servo Motor compatible for Mini Arduino Servo SG90 9g Servo Kit for RC Helicopter Airplane Car Boat Robot Arm/Hand/Walking/Servo Door Lock Control with Cable
• The SG90 has 3 wire interfaces in which the connections should be made as follows: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.
• Stall Torque (4.8V): 17.5oz /in (1kg/cm); Operating voltage: 3.0V~ 6V; Temperature range: -30 to +60; Dead band width: 7usec.

Specification:
Model: SG90
Weight: 9g
Stall torque: 1.8kg/cm
Operating speed: 0.1sec/60degree
Operating voltage: 4.8V
Temperature range: 0 ~ +55
Dead band width: 10us
Maximum rotation angle: 180 degrees
Gear medium: nylon
Working mode: Simulation
Circuit connection:
Yellow line (signal line)
Red line (power line)
Brown (ground)
Package includes:
2* SG90 9g Micro Servos
How to connect SG90 micro servo motor to for Arduino Uno?
The connection with for Arduino is extremely easy. The servo has three leads. The brown one is the Ground so connect to it Arduino Ground.
The red one is VCC which usually requires a voltage between four points eight to seven point two volts. So connect it to for Arduino 5V.
The last lead, the orange one is the control signal which needs to be a PWM signal with a periodic time of twenty milliseconds aka 50 Hertz
and a duty cycle of one to two milliseconds so five to ten percent.
While an on time of one millisecond represents the -90 position of the motor shafts, one point five milliseconds represent 0 position and
two milliseconds the plus 90 position. That means you can rotate the shaft a total of 180
