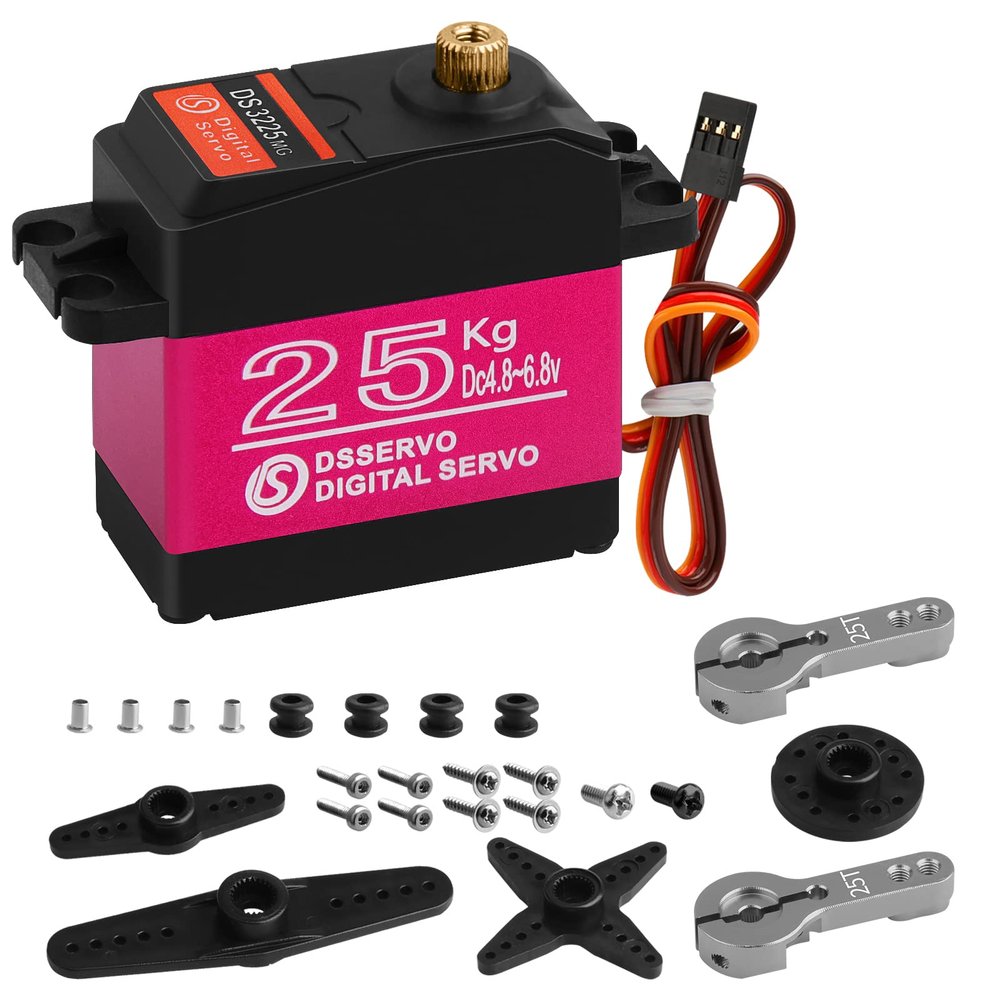

25KG High Torque RC Servo Digital Servo Full Metal Gear Waterproof with 2 25T Servo Horn Compatible with 1/61/8, 1/10, 1/12 RC Car Crawler Robot Control Angle 180

Description

• UPGRADED VERSION DS3225 25KG High-precision, Coreless Stainless Steel Gear, Fully Waterproof, Digital Servo. Send with two 25T double-locking metal servo horns.
• HIGH PERFORMANCE Maximum torque is up to 25kg/cm(6.8V). Made of strong copper & aluminum gears.Equipped with high precision potentiometers and high-resolution digital chip, fast response, strong anti-interference ability, low noise, fast heat dissipation.
• HIGH ROTATION Well-controlled, 180 degree rotation. 360 degree rotation when power-off, perfect for robot joint activities.
• HIGH QUALITY Waterproof rubber seals screws,made of first-grade material ensure the longevity of the products. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
• Wide Compatibility Compatible with 1/8, 1/10, 1/12 RC car,truck, robot, boat.

DS3225MG RC Coreless Stainless Steel Gear Waterproof Digital Servo are ideal for cars, airplanes ,and robots.
High-speed big torque digital servos.
Fully Water-proof, Light Weight,Stable, fast heat dissipation, sensitive and Less Noise.
Power cord is longer up to 11.6inches(29.5cm), and also send with two 25T adjustable metal servo arms

Electrical Specification:

Operating voltage range: 4.8-6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500sec
Neutral position: 1500sec
Running degree: 180 (when 500-2500sec)
Dead band width: 3sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500sec)
Gear ratio: 275
Bearing: Double bearing
Connector wire: 11.2inches(285mm)
Motor: 3-pole(s)
Waterproof performance: IP66

Product Specification:
Standard Dimensions: 40 * 20 * 40.5mm
Weight: 67g

Package Including
1 x DS3225 25kg Digital Servo
2 x 25T Adjustable metal servo arm
1 x Accessories set as shown
