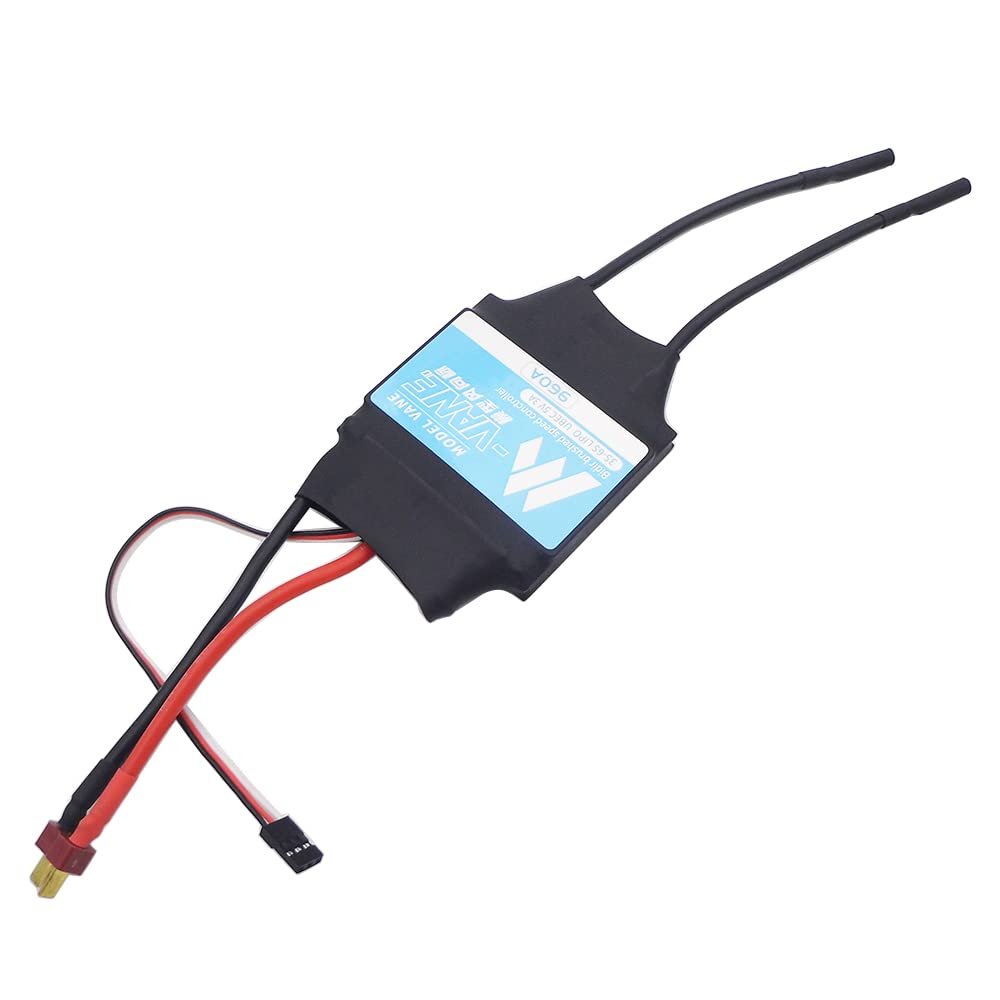

12V 24V 200A ESC 997 Brush Motor Speed Controller 2-Ways Forward Backward for RC Boat Tug Bait Fishing Boat Cruise Marine

Description

• Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, tank etc.
• Suitable for 540, 550, 775, 795, 895, 997 brush motor.
• Build in 5V/3A UBEC,It can drive 2PCS 25kg sovers.
• Automatically to find the neutral point, No throttle rang calibration required.
• Continuous/Peak Current: forward 200A/960A, Backward 200A/960A

Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, tank etc.
Suitable for 540, 550, 775, 795, 895, 997 brush motor.
Automatically to find the neutral point, No throttle rang calibration required.
Working modes: Forward/ Backward, no brake mode.
Build in 5V/3A UBEC,It can drive 2PCS 25kg servos. UBEC is a switching-Mode regulators,
Please don`t use two ESC in parallel to power the receiver, otherwise they will be burned.

LED Indicate:
LED on-- Working normally
LED flash-- The throttle stick is not at the neutral point
LED flash fast-- Signal lost

How to use:
1, Connect with receiver,motor,battery correctly.
2, Turn on the power of ECS, If the transmitter is off, LED will flash fast.
3, Push the throttle stick to the neutral point,Turn on the transmitter, and adjust the throttle trim until the LED on.that means the neutral position has been confirmed.

-- Specification & Features --

- Working Voltage: 12V-24V ( LiPo 3S-7S )
- Remote control signal PWM: 800us-2200us
- Neutral Point: 1500us
- Input plug: T plug
- Out plug: 4mm banana connector
- Build in 48PCS MOS FET
- "H" bridge structure
- Continuous/Peak Current: forward 200A/960A, Backward 200A/960A
- Rated Power: 1800W
- Motor Limit:
Drive ability at the same time at 12V: 6PCS 540, 6PCS 550,4PCS 775,4PCS 795,4PCS 895 or 2PCS 997 Motors
Drive ability at the same time at 24V: 4PCS 775,4PCS 795,2PCS 895 or 2PCS 997 Motors

--- Item Contains ---

1 piece of 200A ESC Brush Motor Speed Controller( Easy to use, no manual )
